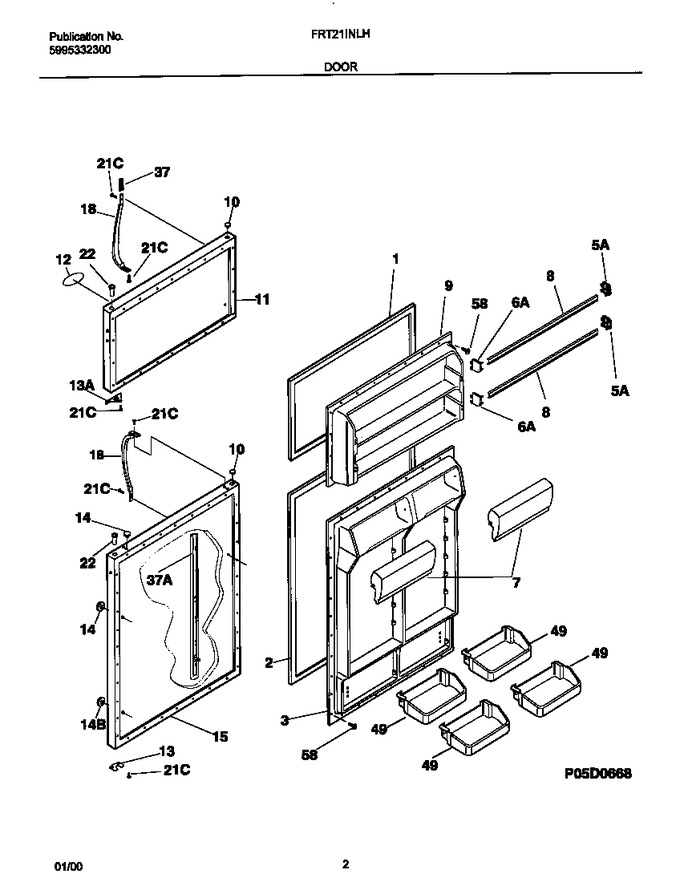

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608913		Gasket-frzr Door, White, Magnetic		Appelez-nous	-
2	218730609		Gasket-refr Door, White, Magnetic				$ 207.27
3	218894001		Panel-inner Door,refr		Appelez-nous	-
5	5303323480		Support-door Rack, White, Rh				$ 14.18
6	5303323481		Support-door Rack, White, Lh			Immediately	$ 14.18
7	5303284478		Door-dairy				$ 179.92
8	215474053		Rack-door		Appelez-nous	-
9	5303206631		Panel-inner Door, Frzr		Appelez-nous	-
10	5303001308		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	5303917827		Panel-frzr Door, Almond, W/insulation		Appelez-nous	-
12	218917602		Label-nameplate,almond		Appelez-nous	-
13	218800300		Door Stop,plated		Appelez-nous	-
13	218249002		Door Stop, Almond, Frzr Section				$ 47.88
14	218915702		Plug-button,almond		Appelez-nous	-
14	218074002		Plug-button, Almond, Refr Door Front, Lower		Appelez-nous	-
15	5303917829		Panel-refr Door, Almond, W/insul & Brace		Appelez-nous	-
18	218668002		Handle-door, Almond		Appelez-nous	-
21	218252201		Screw,8 Truss Hd ,10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
22	218519300		Bearing-hinge				$ 14.60
37	218811622		Trim-handle,almond ,upper ,w/chrome Band,& Snap-on Lock		Appelez-nous	-
37	218811614		Trim-handle,almond ,lower ,w/chrome Band,& Snap-on Lock		Appelez-nous	-
49	215441502		Bin-door,gallon ,with Trim   (Replaces: 218592323)				$ 176.87
58	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 15.60
*23000	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
37A	218676004		Band-decorative,satin Aluminum ,handle Trim				$ 57.60
37B	218906701		Lock-handle Trim,stick-on				$ 67.86
