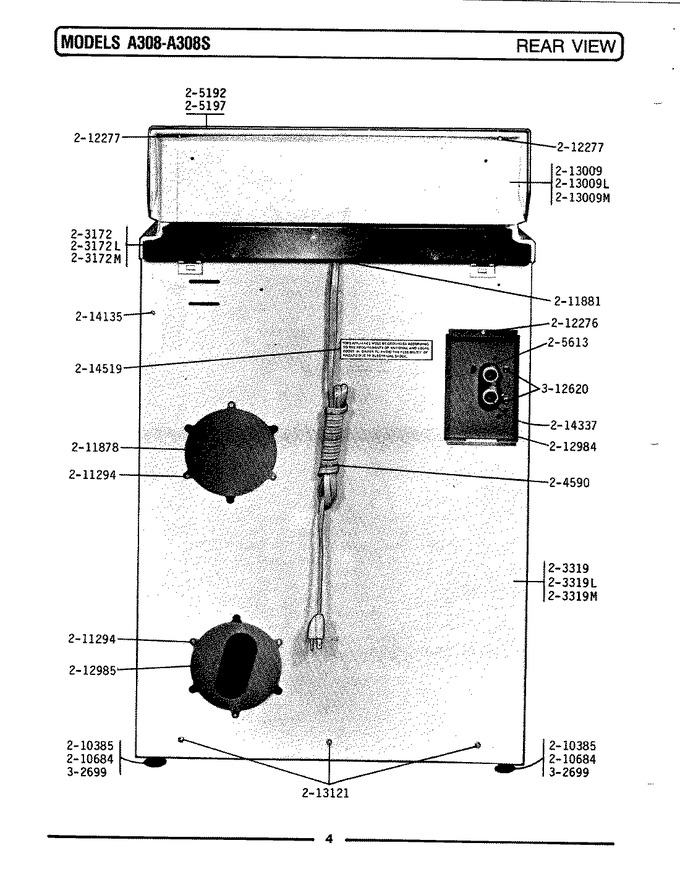

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y201808 | Converter | 00 |
|
- | ||||
| 3 | 203172L | Top Cover-almond | 00 |
|
- | ||||
| 6 | 203319L | (almond) | 00 |
|
- | ||||
| 8 | 204590 | Power Cord | 00 |
|
$ 61.20 | ||||
| 9 | 205192 | Control Panel, Sun-glow | 00 |
|
- | ||||
| 10 | 205197 | Control Panel Kit, Sun-glow | 00 |
|
- | ||||
| 11 | 205613 | Water Valve | 00 |
|
Immediately | $ 103.57 | |||
| 12 | WP210385 | Nut, Lock (Replaces: 210385) | 00 |
|
$ 6.26 | ||||
| 13 | WP210684 | Foot, Rubber (Replaces: 210684) | 00 |
|
Immediately | $ 14.09 | |||
| 14 | WP90767 | Screw (Replaces: 211294) | 00 |
|
Immediately | $ 7.04 | |||
| 15 | 211878 | Plate, Access | 00 |
|
- | ||||
| 16 | 211881 | Grommet, Cord | 00 |
|
- | ||||
| 17 | WP90767 | Screw (Replaces: 212276) | 00 |
|
Immediately | $ 7.04 | |||
| 18 | WP1163283 | Screw, No.8 X 1/2 Inch (Replaces: 212277) | 00 |
|
$ 6.47 | ||||
| 19 | 212984 | Valve Mounting Plate | 00 |
|
$ 166.05 | ||||
| 20 | 212985 | Plate, Access (w/hole) | 00 |
|
- | ||||
| 22 | 213009L | Control Cover-almond | 00 |
|
- | ||||
| 24 | WPW10346892 | Screw (Replaces: 213121) | 00 |
|
Immediately | $ 6.47 | |||
| 25 | 214135 | Fastener Clip | 00 |
|
- | ||||
| 26 | WP96160 | Screen, Valve (Replaces: 214337) | 00 |
|
$ 10.54 | ||||
| 27 | 214519 | Label, Electrical Instruction | 00 |
|
- | ||||
| 28 | 301548 | Clamp, Ground (w/screw) | 00 |
|
- | ||||
| 29 | 22003428 | Leg, Adjustable (w/nut) (Replaces: Y302699) | 00 |
|
Immediately | $ 14.41 | |||
| 30 | 311155 | Ground Wire | 00 |
|
$ 8.77 | ||||
| 31 | 312620 | Sems Screw, No.10-16 X 1/2`` | 00 |
|
- |
