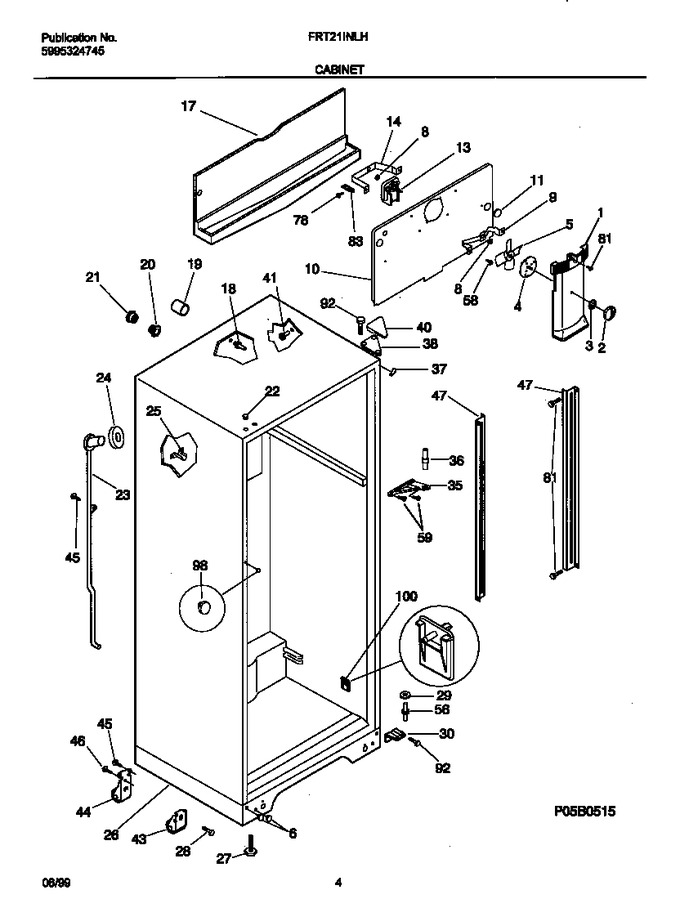

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Doors
03 - Cabinet
04 - Shelves
05 - System
06 - Ice Maker
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304402655 | Cover-fan |
|
- | |||||
| 2 | 5303307351 | Knob, Damper Control |
|
$ 32.71 | |||||
| 3 | 5303001028 | Nut,push-on |
|
- | |||||
| 4 | 218722200 | Damper-fan Cover, Black |
|
$ 59.80 | |||||
| 5 | 5308000010 | Fan Blade, Black (Replaces: 218649000) |
|
Immediately | $ 49.03 | ||||
| 6 | 5303001388 | Plug-button, White |
|
$ 2.60 | |||||
| 8 | 5300157666 | Bushing - Motor Mtg, (2) |
|
- | |||||
| 9 | 5303205118 | Bracket-motor Mtg, Front |
|
- | |||||
| 10 | 218802800 | Cover-evap Coil |
|
- | |||||
| 11 | 5303208309 | Plug-hole, Factory Test |
|
$ 45.50 | |||||
| 13 | 218895003 | Motor-evap Fan |
|
- | |||||
| 14 | 5303205119 | Bracket-motor Mtg, Rear |
|
- | |||||
| 17 | 5303001470 | Trough-drain |
|
- | |||||
| 18 | 215245000 | Support - Evap Cover, (2) |
|
$ 25.20 | |||||
| 19 | 5303001198 | Tube-rubber |
|
- | |||||
| 20 | 5303001286 | Ferrule-inner |
|
- | |||||
| 21 | 5303001287 | Ferrule-outer |
|
- | |||||
| 22 | 215774901 | Plug-button,white ,upr Hinge Holes |
|
Immediately | $ 18.20 | ||||
| 23 | 5303210377 | Tube-drain, W/seal Ring |
|
$ 109.31 | |||||
| 24 | 5303207353 | Seal Ring, Drain Tube |
|
$ 6.81 | |||||
| 25 | 215774100 | Spout-drain Tube, W/mounting Pins |
|
- | |||||
| 26 | 218605101 | Base-cabinet, White |
|
- | |||||
| 27 | 5303212922 | Screw-leveling |
|
$ 10.71 | |||||
| 28 | 5303271412 | Bolt-roller Adj,hex Hd Sems ,1/4-28 X 2.750,(2) |
|
$ 37.64 | |||||
| 29 | 218666700 | Washer, .28 X .62 X .03, Nylon |
|
- | |||||
| 30 | 218220202 | Bracket-lower Hinge,zinc Chromate |
|
- | |||||
| 35 | 218220101 | Bracket-ctr Hinge, Light Grey |
|
- | |||||
| 36 | 218251300 | Pin-center Hinge |
|
$ 59.54 | |||||
| 37 | 5303321081 | Trim-cabinet Corner, White |
|
$ 8.82 | |||||
| 38 | 3206100 | Bracket-upper Hinge |
|
- | |||||
| 40 | 3206101 | Cover-upper Hinge, White |
|
$ 49.25 | |||||
| 41 | 5304509705 | Grommet, Shelf/rod Mtg, Rh (Replaces: 5303001609) |
|
$ 10.01 | |||||
| 43 | 218703001 | Roller Assy,front ,(2) |
|
$ 58.41 | |||||
| 44 | 218713600 | Roller Assy,rear ,(2) |
|
$ 32.75 | |||||
| 45 | 5304455651 | Screw (Replaces: 5303001343) |
|
$ 14.41 | |||||
| 46 | 5308009762 | Bolt-roller Mtg,hex Wshr Hd ,1/4-28 X 0.500,(2) |
|
- | |||||
| 47 | 218233300 | Channel-shelf Mtg,side ,(2) |
|
$ 86.05 | |||||
| 56 | 218220300 | Pin-lower Hinge |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| 59 | 240442708 | Screw,pan Hd ,10-32 X 0.625 ,hinge/mullion,thread Formin (Replaces: 218188000) |
|
$ 8.34 | |||||
| 78 | 5303274237 | Screw-bracket, Hex Washer Head, 8-32(ca) X 1/2 |
|
- | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 83 | 5308000107 | Bracket-connector |
|
$ 33.23 | |||||
| 92 | 241710601 | Screw (Replaces: 5303001479) |
|
$ 13.46 | |||||
| 98 | 215099701 | Plug-button,white |
|
$ 5.99 | |||||
| 100 | 5303288973 | Support-pan Cover |
|
$ 24.41 | |||||
| *03481 | 218754500 | Screw,hex Hd Ser Wshr ,8-18 X 0.375 |
|
- | |||||
| *03482 | 5303209814 | Nut,``u`` Type ,8-15(a) ,fan Mtr Mtg |
|
- | |||||
| *03483 | 5303001361 | Pin-mounting, Push-in, Plastic |
|
- | |||||
| *03484 | 5308011326 | Washer, .34 X .62 X .02, Nylon |
|
$ 9.87 | |||||
| *03485 | 218875801 | Washer,nylon ,0.245 Id W/nibs |
|
$ 9.40 | |||||
| *03486 | 218605200 | Tapping Plate/gusset,rh |
|
- | |||||
| *03487 | 218605300 | Tapping Plate/gusset,lh |
|
- | |||||
| *03488 | 5304500407 | Grommet, Shelf Mtg, Lh (Replaces: 5308009759) |
|
Immediately | $ 6.38 | ||||
| *03489 | 5308009790 | รบ Spring-roller Adj |
|
$ 4.30 | |||||
| *03490 | 218905701 | Cover-sound Insul,pressboard/foam,mach Compt |
|
$ 64.93 | |||||
| *03491 | 218601201 | Plug-button, White, Cabinet Base |
|
- | |||||
| *03492 | 5303321319 | Paint, Touch-up, White (Replaces: 5303305324) |
|
Immediately | $ 13.46 |
