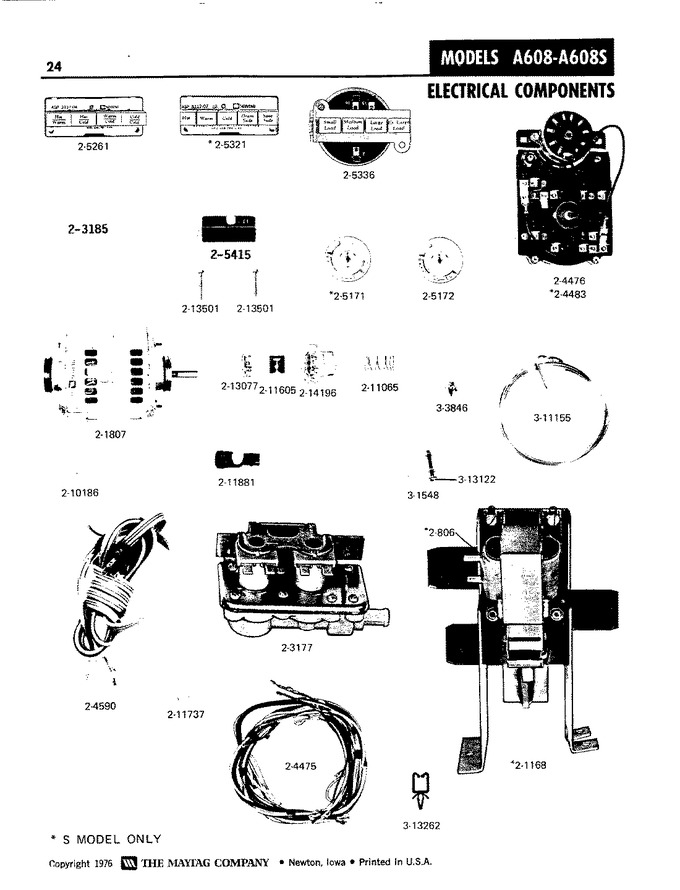

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP6-0A57420 | Seal, Agitator Drive Shaft (Replaces: Y0A4298) | 00 |
|
Immediately | $ 33.64 | |||
| 2 | 14792 | Wiring Diagram | 00 |
|
- | ||||
| 3 | Y014827 | Washer-center Shaft | 00 |
|
- | ||||
| 4 | Y014839 | Collar-drive Shaft | 00 |
|
$ 8.33 | ||||
| 5 | Y015149 | Brass Washer-agitator Seal | 00 |
|
- | ||||
| 6 | Y015494 | Stop Ring-agitator Shaft | 00 |
|
- | ||||
| 7 | Y015629 | Bolt, Grinding Chamber-drai | 00 |
|
- | ||||
| 8 | 015639 | Dowel Pin | 00 |
|
- | ||||
| 9 | WPY015666 | Washer,retaining(center Seal)- (Replaces: Y015666) | 00 |
|
$ 6.96 | ||||
| 10 | Y015667 | Retaining Ring | 00 |
|
$ 8.70 | ||||
| 11 | Y015902 | Spring For Agitator | 00 |
|
- | ||||
| 12 | 038313 | Wrench, Spanner | 00 |
|
- | ||||
| 13 | Y038555 | Tool-install Center Shaft | 00 |
|
- | ||||
| 14 | Y054867 | Washer, Lock | 00 |
|
- | ||||
| 15 | WPY056016 | Center Seal Grease, 4oz Tub (Replaces: Y056016) | 00 |
|
$ 14.43 | ||||
| 16 | Y056080 | Trans Lube - Auto, 34 Oz. | 00 |
|
- | ||||
| 17 | 200730 | Agitator Shaft | 00 |
|
- | ||||
| 18 | 200813 | Gear Case Cover Assembly | 00 |
|
- | ||||
| 19 | 6-2040130 | Bearing, Tub (Replaces: 200824) | 00 |
|
Immediately | $ 73.68 | |||
| 20 | 201463 | Pitman With Wrist Pin | 00 |
|
- | ||||
| 21 | 201537 | Seal And Spring | 00 |
|
- | ||||
| 22 | 202521 | Mounting Stem | 00 |
|
- | ||||
| 23 | 203193 | Gear Housing W/studs & Tube | 00 |
|
- | ||||
| 24 | 203438 | Trans & Center Assm. Lg Tub | 00 |
|
- | ||||
| 25 | 203775 | Ctn 10 Auto Trans Lube | 00 |
|
- | ||||
| 26 | 204012 | Mounting Stem Repair Kit | 00 |
|
- | ||||
| 27 | 6-2040130 | Tub Bearing Repair Kit (Replaces: 204013) | 00 |
|
Immediately | $ 73.68 | |||
| 28 | 204967 | Gear Kit-power Fin Agitator | 00 |
|
- | ||||
| 29 | 210054 | Pinion | 00 |
|
- | ||||
| 30 | 210179 | Retaining Ring | 00 |
|
- | ||||
| 31 | 210183 | Groov-pin, 1/4 X 1-1/4 | 00 |
|
- | ||||
| 32 | 210286 | Seal | 00 |
|
$ 14.27 | ||||
| 33 | 210315 | Pinion | 00 |
|
- | ||||
| 34 | 210632 | Gasket | 00 |
|
- | ||||
| 35 | 210670 | Segment | 00 |
|
- | ||||
| 36 | 210690 | Seal, Rubber | 00 |
|
$ 13.19 | ||||
| 37 | 211022 | Bearing | 00 |
|
- | ||||
| 38 | 211028 | Deflector,water (drive Tube) | 00 |
|
- | ||||
| 39 | 211047 | Nut, Clamping (inner Tub) | 00 |
|
- | ||||
| 40 | WP211089 | Lug, Stop (Replaces: 211089) | 00 |
|
$ 10.16 | ||||
| 41 | WP22003555 | Washer, Lock (Replaces: 211090) | 00 |
|
$ 19.26 | ||||
| 42 | 211100 | Washer, Cushion | 00 |
|
- | ||||
| 43 | 211130 | Liner, Tub Bearing | 00 |
|
$ 724.10 | ||||
| 44 | 211210 | Washer,clamping Nut(stainless) | 00 |
|
$ 5.84 | ||||
| 45 | WP912618 | Screw,stop Lug(center Shaft) (Replaces: 211375) | 00 |
|
$ 6.98 | ||||
| 46 | WP6-2114830 | Washer, Splined (Replaces: 211483) | 00 |
|
$ 7.05 | ||||
| 47 | 211484 | Lug Washer | 00 |
|
$ 4.83 | ||||
| 48 | 211486 | Screw, 3/8-16 X 1/2 Inch | 00 |
|
- | ||||
| 49 | 211487 | Groov-pin | 00 |
|
$ 6.64 | ||||
| 50 | 22001423 | Set Screw, Mtg. Stem (Replaces: 211618) | 00 |
|
$ 45.54 | ||||
| 51 | 211837 | Spring For Tub Seal | 00 |
|
- | ||||
| 52 | 213044 | Center Shaft | 00 |
|
- | ||||
| 53 | 213068 | Intermediate Gear | 00 |
|
- | ||||
| 54 | 214276 | Washer For Gears | 00 |
|
- |
