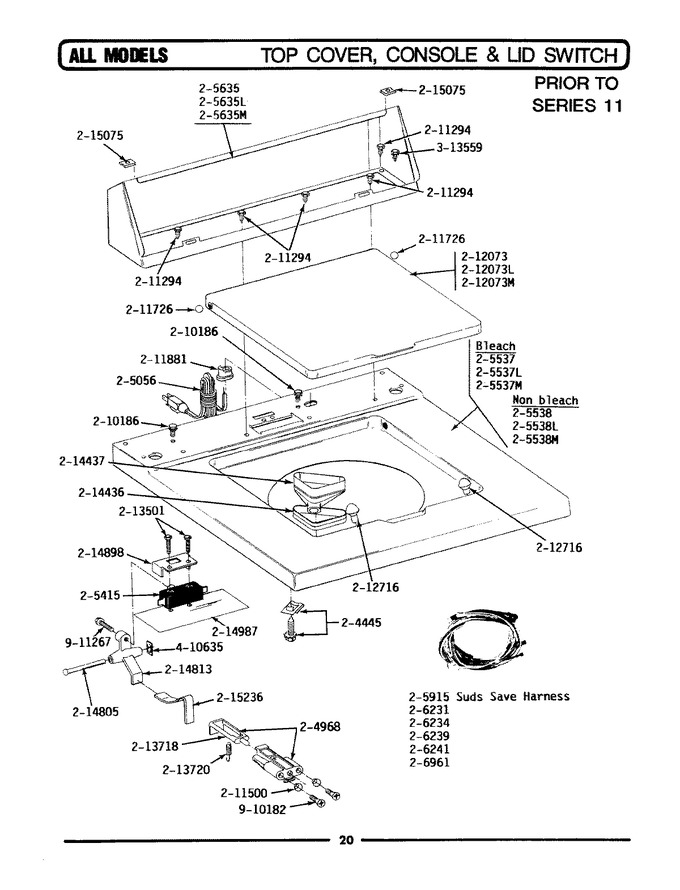

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y201808 | Converter | 00 |
|
- | ||||
| 2 | 204445 | Screw & Fastener Asy. | 00 |
|
- | ||||
| 3 | 204968 | Plunger & Bracket Assembly | 00 |
|
$ 26.05 | ||||
| 4 | 205056 | Cord, Power | 00 |
|
- | ||||
| 5 | W10820036 | Switch, Lid (w/o Tub Light) (Replaces: 205415) | 00 |
|
Immediately | $ 27.45 | |||
| 7 | 205537L | Top Cover-almond----na | 00 |
|
- | ||||
| 11 | 205635L | Console (alm) | 00 |
|
- | ||||
| 13 | 205997 | Non-bleach Conversion Kit | 00 |
|
- | ||||
| 19 | WP489128 | Screw, Ground Wire To Base--na (Replaces: 210186) | 00 |
|
$ 9.79 | ||||
| 20 | WP90767 | Screw (Replaces: 211294) | 00 |
|
Immediately | $ 7.04 | |||
| 21 | 211500 | Washer,bracke To Top Cover | 00 |
|
- | ||||
| 22 | WP211726 | Hinge, Ball (Replaces: 211726) | 00 |
|
Immediately | $ 7.18 | |||
| 23 | WP248562 | Wire Connector (Replaces: 211737) | 00 |
|
$ 6.95 | ||||
| 24 | 211881 | Grommet, Cord | 00 |
|
- | ||||
| 27 | WP212716 | Bumper, Lid (Replaces: 212716) | 00 |
|
Immediately | $ 7.88 | |||
| 28 | 213501 | Screw, No.6-20 X 1-1/8 Inch | 00 |
|
$ 12.03 | ||||
| 29 | 213718 | Lid Switch Plunger | 00 |
|
$ 12.10 | ||||
| 30 | WP213720 | Spring (Replaces: 213720) | 00 |
|
$ 7.63 | ||||
| 31 | 214436 | Gasket | 00 |
|
- | ||||
| 32 | 214805 | Pin For Unbalance Lever | 00 |
|
- | ||||
| 33 | 214813 | Lever For Lid Switch | 00 |
|
- | ||||
| 34 | 214898 | Cover For Lid Switch | 00 |
|
- | ||||
| 35 | 214987 | Moisture Barrier For Switch | 00 |
|
- | ||||
| 36 | 215075 | Fastener,cntrl Pnl To Console | 00 |
|
$ 4.83 | ||||
| 37 | 215236 | Unbalance Lever | 00 |
|
- | ||||
| 39 | 215578 | Bleach Inlet Almond | 00 |
|
- | ||||
| 41 | 215580 | Cup, Bleach (alm.) | 00 |
|
$ 4.83 | ||||
| 42 | 301548 | Clamp, Ground (w/screw) | 00 |
|
- | ||||
| 43 | 311155 | Ground Wire | 00 |
|
$ 8.77 | ||||
| 44 | Y312140 | Wire Connector | 00 |
|
- | ||||
| 45 | WP90767 | Screw (Replaces: Y313559) | 00 |
|
Immediately | $ 7.04 | |||
| 46 | 410635 | Fastener | 00 |
|
- | ||||
| 47 | W10756178 | Screw (Replaces: 910182) | 00 |
|
$ 5.39 | ||||
| 48 | 911267 | Screw, Pump Cover | 00 |
|
- |
