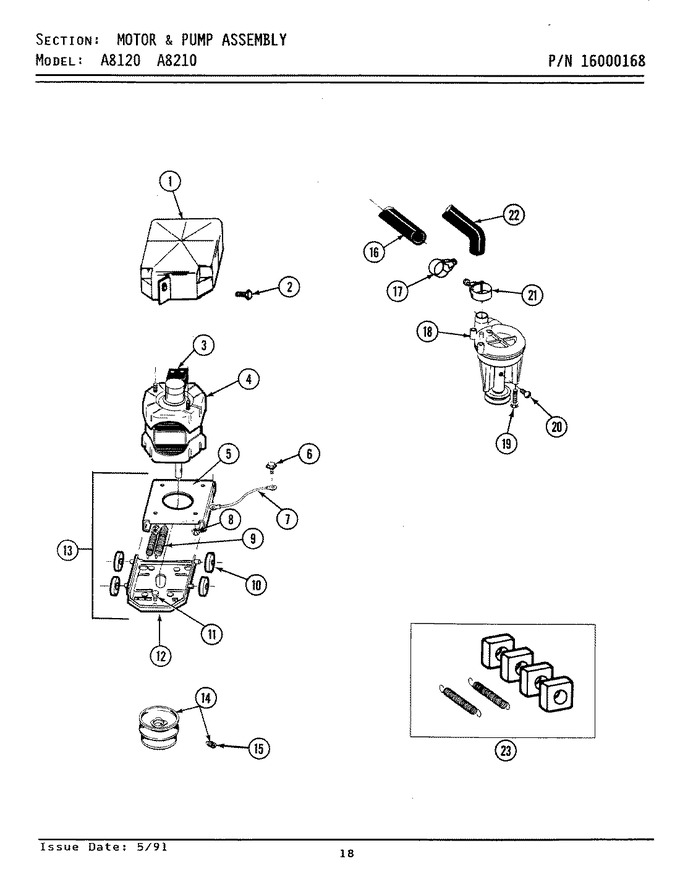

05 - Motor & Pump Assembly


06 - Top Cover


07 - Transmission


08 - Tub Assembly


09 - Tub Cover


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215098		Shield, Motor	A0	Appelez-nous	-
2	WPW10346892		Screw   (Replaces: 213121)	A0		Immediately	$ 6.47
3	205133		Motor External Start Switch	A0	Appelez-nous	-
3	205132		Switch, Motor Start	A0	Appelez-nous	-
3	206505		Switch, Motor Start	A0	Appelez-nous	-
4	12002351		Motor (one Speed)   (Replaces: 201805)	A0		Immediately	$ 170.98
5	214956		Mount, Motor/upper	A0	Appelez-nous	-
6	WP489128		Screw, Ground Wire To Base--na   (Replaces: 210186)	A0			$ 9.79
7	901220		Wire, Ground	A0	Appelez-nous	-
8	WP3400029		Nut, Washered Lock   (Replaces: Y311426)	A0		Immediately	$ 6.98
9	202718		Tension Springs	A0		Immediately	$ 200.35
10	205000		Glide Kit (4 W/poly Lube)   (Replaces: 204998)	A0			$ 62.00
11	Y313561		Screw----na	A0			$ 5.27
12	205908		Lower Motor Mount	A0	Appelez-nous	-
13	205999		Motor Mount Assm Complete	A0			$ 61.84
14	200816		Pulley, Motor (w/set Screw)	A0	Appelez-nous	-
15	Y053241		Set Screw, Pulley	A0	Appelez-nous	-
16	WP22001448		Hose,pump To Siphon Break   (Replaces: 214767)	A0			$ 79.87
17	WP285655		Hose Clamp - 1-5/8 Inch   (Replaces: 200461)	A0		Immediately	$ 7.55
18	202203		Pump As Pak	A0	Appelez-nous	-
19	WPY014874		Screw, Hex Hd No.10 X 1/2 Inc   (Replaces: 211880)	A0			$ 6.98
20	WP3390631		Screw, Bearing Insert   (Replaces: Y015408)	A0			$ 7.04
21	WP3367052		Clamp, Hose   (Replaces: 202574)	A0			$ 7.49
22	WPY212989		Hose, Outer Tub To Pump   (Replaces: Y212989)	A0		Immediately	$ 46.51
23	205000		Glide & Spring Kit	A0			$ 62.00
