SELECT A DIAGRAM

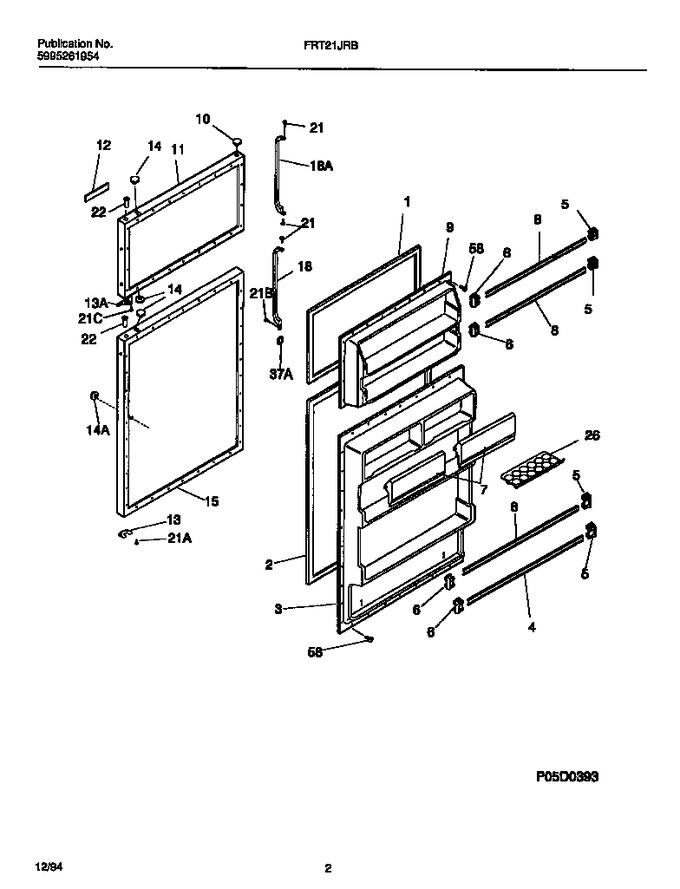

02 - Food And Freezer Doors


03 - Cabinet, Fan Assembly


04 - Shelves, Dividers


05 - Compressor, Condenser, Evaporator


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608913		Gasket-frzr Door, White, Magnetic		Appelez-nous	-
2	215732413		Gasket-refr Door, White, Magnetic		Appelez-nous	-
3	5303212482		Panel-inner Door, Refr		Appelez-nous	-
4	215139836		Rack-door, 25.25`` X 1.58``		Appelez-nous	-
5	5303007295		Support-door Rack, Rh				$ 32.55
6	5303007297		Support-door Rack, Lh				$ 64.58
7	5303304564		Door-dairy		Appelez-nous	-
8	215139838		Rack-door, 25.56`` X 1.58``		Appelez-nous	-
9	5318540802		Panel-inner Door, Frzr		Appelez-nous	-
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
11	5303917379		Panel-frzr Door, White, W/insulation		Appelez-nous	-
12	215008601		Nameplate		Appelez-nous	-
13	5303212491		Door Stop, Refr Section		Appelez-nous	-
14	240494001		Plug-button, White, Handle/dr Stop   (Replaces: 5308000090)			Immediately	$ 18.20
15	5303917404		Panel-refr Door, White, W/insulation, & Cross Braces		Appelez-nous	-
18	215482138		Handle-door,19.86``,white		Appelez-nous	-
21	5303272566		Screw - Handle Mtg, Oval Head, 10-24 (d) X 5/8,white, C		Appelez-nous	-
22	3206153		Bearing-hinge		Appelez-nous	-
26	215817806		Tray-egg				$ 13.46
58	5308002748		Screw		Appelez-nous	-
*27124	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
13A	218249001		Door Stop, White, Frzr				$ 82.06
14A	240494001		Plug-button,white ,refr Door Front ,   (Replaces: 215352201)			Immediately	$ 18.20
18A	215482136		Handle, Door, 19.51``,white		Appelez-nous	-
21A	5308011745		Screw				$ 10.38
21B	215733200		Screw-handle Mtg, Flat Head, 8-18(ab) X 1/2		Appelez-nous	-
21C	218252201		Screw, Cr Truss Head, 10-32(ca) X 1/2   (Replaces: 218252200)			Immediately	$ 14.18
37A	215480205		Trim-handle, End Cap, White, Refr Door		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
