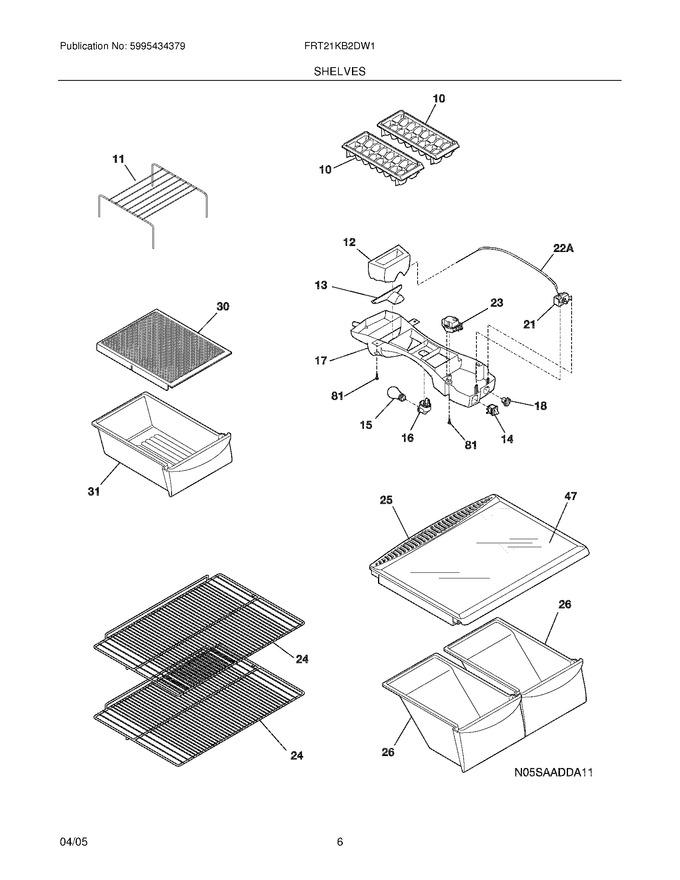

07 - Shelves
09 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | 215667501 | Tray,ice Cube ,plastic |
|
Immediately | $ 6.07 | ||||
| 11 | 5303291413 | Shelf-freezer, ``table Type`` |
|
- | |||||
| 12 | 240545901 | Diffuser-air,top |
|
$ 70.16 | |||||
| 13 | 240362601 | Diffuser-air,bottom |
|
Immediately | $ 41.81 | ||||
| 14 | 241554901 | Switch-light/lamp |
|
$ 70.88 | |||||
| 15 | 316538904 | Light Bulb (Replaces: 241555401) |
|
Immediately | $ 20.48 | ||||
| 16 | 241559801 | Socket-light |
|
$ 72.68 | |||||
| 17 | 240368105 | Control Box (Replaces: 240368101) |
|
Immediately | $ 130.44 | ||||
| 18 | 240360801 | Knob-temp Control |
|
$ 43.95 | |||||
| 24 | 240360904 | Shelf,sliding ,wire |
|
$ 72.45 | |||||
| 25 | 240364756 | Cover-crisper Pan |
|
- | |||||
| 26 | 240343803 | Pan-crisper,(2) (Replaces: 240343801) |
|
Immediately | $ 171.91 | ||||
| 30 | 240361801 | Cover,meat Pan Hanger ,drop Through |
|
- | |||||
| 31 | 240530811 | Pan-meat,w/o Graphics ,white (Replaces: 240530801) |
|
Immediately | $ 135.77 | ||||
| 47 | 240350609 | Insert-pan Cover,glass |
|
Immediately | $ 162.30 | ||||
| 81 | 5304455650 | Screw,hex Washer Head ,8-15a X 0.625 ,low Profile (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 22A | 5303916855 | Tube,sensor Sleeve ,plastic ,clear |
|
$ 60.96 | |||||
| F21 | 241537103 | Control-temperature (Replaces: 5304421256) |
|
Immediately | $ 72.31 | ||||
| F23 | 215846602 | Timer,defrost ,60 Hz ,0.25 W ,120 V ,10 Hour/30 Min (Replaces: 215846606) |
|
Immediately | $ 28.20 | ||||
| NI | 5304455649 | Screw-timer Mtg,pan Hd ,6-20 X 0.438 ,(2) (Replaces: 5303001259) |
|
$ 17.01 |
