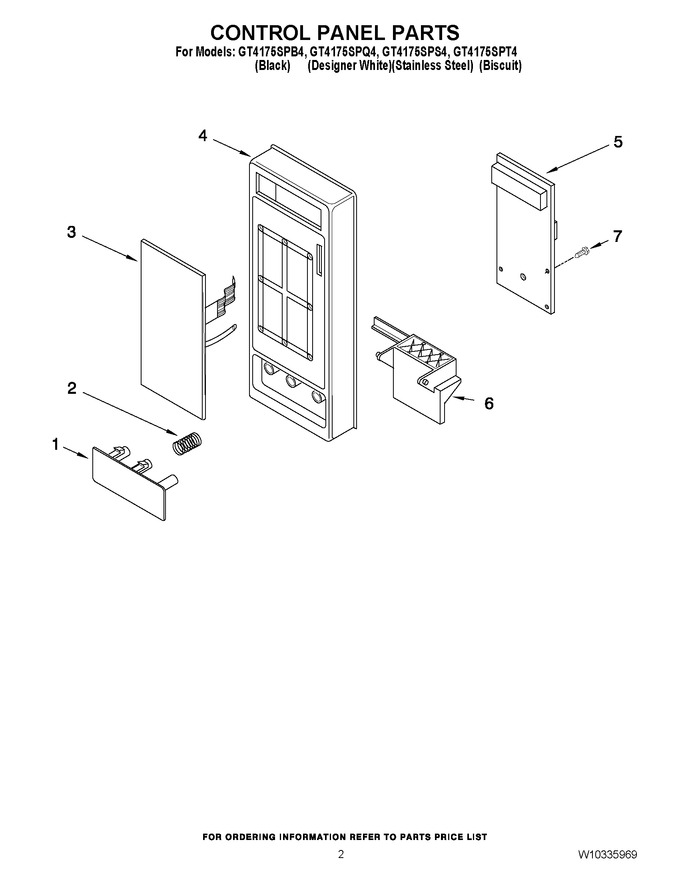

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8205516 | Release Button (white) |
|
- | |||||
| 1 | 8205506 | Release Button (black) |
|
- | |||||
| 1 | 8205525 | Release Button (stainless) |
|
- | |||||
| 1 | 8205521 | Release Button (biscuit) |
|
- | |||||
| 2 | 8184272 | Spring, Button |
|
- | |||||
| 3 | 8205515 | Key Membrane (white) |
|
- | |||||
| 3 | 8205504 | Key Membrane (black Stainless (included In No.4)) |
|
- | |||||
| 3 | 8205519 | Key Membrane (biscuit) |
|
- | |||||
| 4 | 8205528 | Control Panel (white) |
|
- | |||||
| 4 | 8205524 | Control Panel (stainless (includes No.3)) |
|
- | |||||
| 4 | 8205520 | Control Panel (biscuit) |
|
- | |||||
| 4 | 8205505 | Control Panel (black) |
|
- | |||||
| 5 | 8205507 | P.c.b Sub Assembly |
|
- | |||||
| 6 | WP8205451 | Lever, Release (Replaces: W10298900) |
|
Immediately | $ 72.66 | ||||
| 7 | 4358883 | Screw |
|
- |
