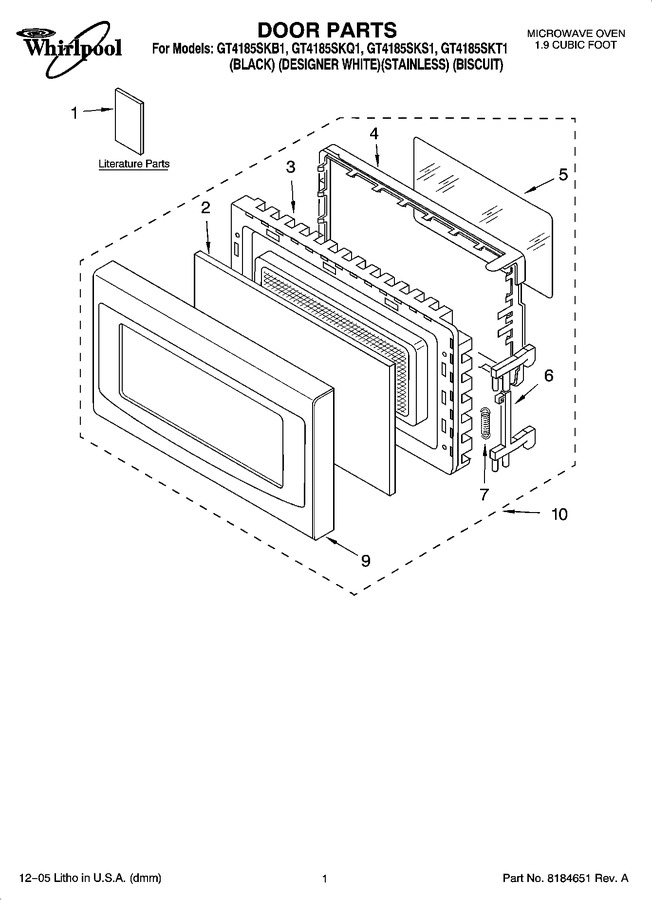

01 - Door Parts
02 - Control Panel Parts
03 - Oven Cavity Parts
04 - Latch Board Parts
05 - Oven Interior Parts
06 - Base Plate Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8183906 | Use & Care Guide |
|
- | |||||
| 1 | 4359630 | Cook Guide Label |
|
- | |||||
| 1 | 8183911 | Tech Sheet |
|
- | |||||
| 2 | 4359866 | Front Screen (blk, Wht, Bsct Mdls) |
|
- | |||||
| 2 | 8171889 | Front Screen (stainless Model) |
|
- | |||||
| 3 | 8172086 | Door Frame Assembly (biscuit) |
|
- | |||||
| 3 | 4359924 | Door Frame Assembly (white) |
|
- | |||||
| 3 | 8171890 | Door Frame Assembly (black) |
|
- | |||||
| 4 | 8184431 | Choke Cover (blk, Wht, Bsct Mdls) |
|
- | |||||
| 4 | 4359869 | Choke Cover (stainless Model) |
|
- | |||||
| 5 | 4359870 | Tape, Seal |
|
- | |||||
| 6 | 4359765 | Latch |
|
- | |||||
| 7 | 8171918 | Spring, Latch (blk, Wht, Bsct Mdls) |
|
$ 51.20 | |||||
| 7 | 4359707 | Spring, Latch (stainless Mdl) |
|
- | |||||
| 9 | 8184271 | Panel, Door (biscuit) |
|
- | |||||
| 9 | 8172174 | Panel, Door (stainless) |
|
- | |||||
| 9 | 8184266 | Panel, Door (black) |
|
- | |||||
| 9 | 8184270 | Panel, Door (white) |
|
- | |||||
| 10 | 8184433 | Door Assembly (biscuit) |
|
- | |||||
| 10 | 8184432 | Door Assembly (white) |
|
- | |||||
| 10 | 8184447 | Door Assembly (black) |
|
- | |||||
| 10 | 8171888 | Door Assembly (stainless) |
|
- |
