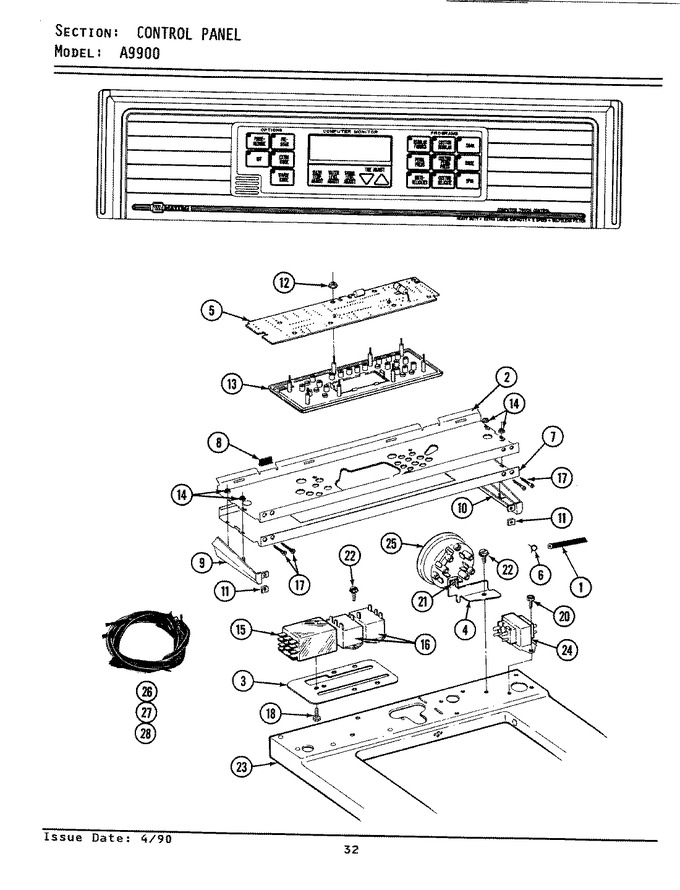

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP22001619 | Air Dome And Tube (Replaces: 212942) | 00 |
|
$ 75.73 | ||||
| 2 | 215722 | Backup Plate | 00 |
|
- | ||||
| 3 | 215725 | Bracket Relay | 00 |
|
- | ||||
| 4 | 215720 | Bracket For Water Level Sw | 00 |
|
- | ||||
| 5 | 207208 | Pc Board | 00 |
|
$ 228.14 | ||||
| 6 | WP596669 | Clamp,water Level Swtch Tube (Replaces: 410296) | 00 |
|
Immediately | $ 7.56 | |||
| 7 | 207220 | Control Panel | 00 |
|
- | ||||
| 8 | 214897 | Pad, Control Panel | 00 |
|
- | ||||
| 9 | 207215 | End Cap Lh | 00 |
|
- | ||||
| 10 | 207216 | End Cap Rh | 00 |
|
- | ||||
| 11 | 214894 | Fastener, End Cap | 00 |
|
- | ||||
| 12 | M0282005 | Locknut (Replaces: 912077) | 00 |
|
$ 7.07 | ||||
| 13 | 207235 | Mounting Panel Assy | 00 |
|
- | ||||
| 14 | 214872 | Palnut, End Cap | 00 |
|
- | ||||
| 15 | 206421 | Relay-motor Reversing | 00 |
|
- | ||||
| 16 | 207770 | Relay | 00 |
|
- | ||||
| 17 | 210932 | Screw, No.8 X 9/16 Ctsk | 00 |
|
- | ||||
| 18 | 212949 | Screw | 00 |
|
- | ||||
| 19 | WP90767 | Screw (Replaces: 211294) | 00 |
|
Immediately | $ 7.04 | |||
| 20 | WP90767 | Screw (Replaces: Y313559) | 00 |
|
Immediately | $ 7.04 | |||
| 21 | Y311711 | Screw | 00 |
|
- | ||||
| 22 | W11233072 | Screw (Replaces: 910647) | 00 |
|
Immediately | $ 12.62 | |||
| 23 | 207170L | Top Cover Assy Alm----na | 00 |
|
- | ||||
| 24 | 207766 | Transformer | 00 |
|
- | ||||
| 25 | 207213 | Water Level Switch | 00 |
|
- | ||||
| 26 | 207218 | Wire Harness | 00 |
|
- | ||||
| 27 | 207211 | Wire Harness | 00 |
|
- | ||||
| 28 | 207212 | Wire Harness | 00 |
|
- |
