01 - Base
02 - Cabinet
03 - Clutch & Brake
04 - Control Panel
05 - Top (lat2200aae)
06 - Top (lat2300aae)
07 - Transmission
08 - Tub (lat2200aae)
09 - Tub (lat2300aae)
SELECT A DIAGRAM
New Model Search:

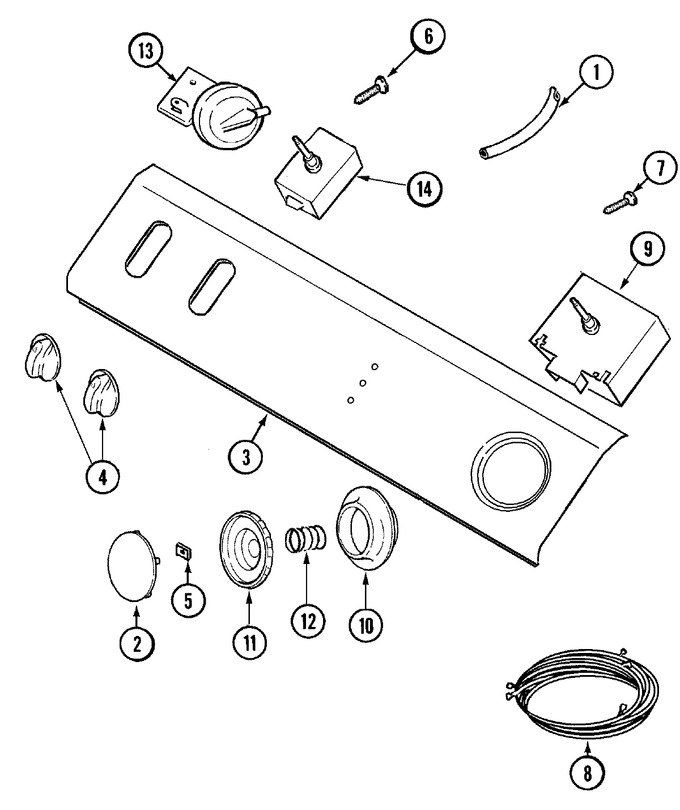

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP22001619 | Tube, Water Level Switch (Replaces: 22001036) | 10 |
|
$ 75.73 | ||||
| 5 | 211605 | Retainer, Timer Knob | 10 |
|
- | ||||
| 6 | 22001662 | Screw | 10 |
|
- | ||||
| 7 | WP3400094 | Screw, Timer (Replaces: 22001661) | 10 |
|
$ 7.14 | ||||
| 8 | 22002395 | Harness, Main Wire | 10 |
|
- | ||||
| 9 | WP22003361 | Timer (Replaces: 22002200) | 10 |
|
$ 359.89 | ||||
| 12 | 211065 | Spring, Timer Knob | 10 |
|
$ 5.70 | ||||
| 13 | 22001775 | 4 Level Rotary Pressure Switch | 10 |
|
$ 78.59 | ||||
| 14 | 22001655 | Switch, Water Temp. (3 Pos.) | 10 |
|
- | ||||
| 15 | 22003210 | Manual, Use & Care | 10 |
|
- |
