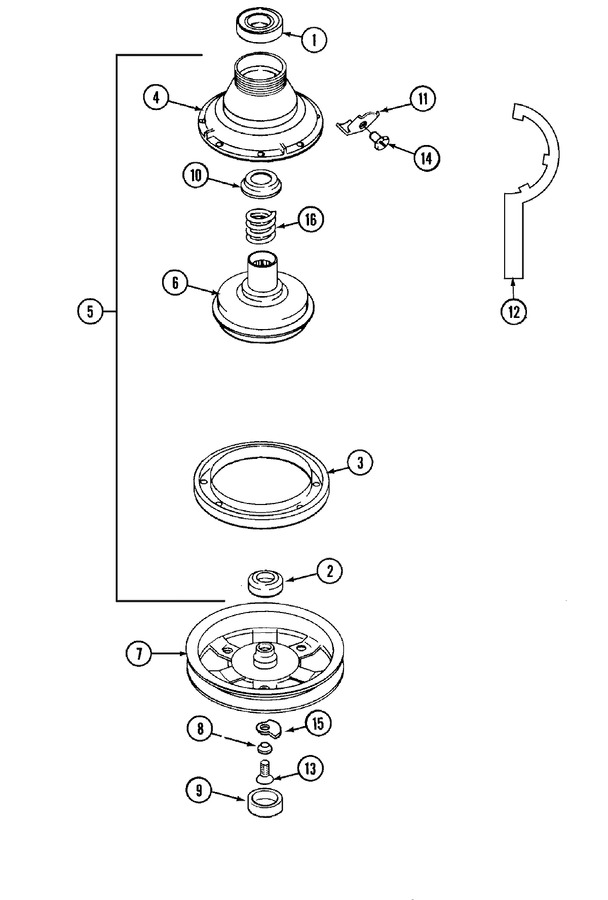

01 - Base
02 - Cabinet
03 - Clutch & Brake
04 - Control Panel
05 - Supplemental Information
06 - Top
07 - Transmission
08 - Tub
09 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y200720 | Ball Bearing, Radial | 10 |
|
- | ||||
| 2 | 200835 | Bearing, Brake Rotor | 10 |
|
$ 30.47 | ||||
| 3 | 22003890 | Brake Stator (drum) | 10 |
|
- | ||||
| 4 | 22003891 | Support For Brake Stator-drum | 10 |
|
- | ||||
| 5 | 201190 | Brake Assembly | 10 |
|
- | ||||
| 6 | 201126 | Rotor, Brake (w/facing) | 10 |
|
- | ||||
| 7 | 22002431 | Pulley Assembly | 10 |
|
- | ||||
| 8 | WP22003555 | Washer, Stop Lug (Replaces: 22003555) | 10 |
|
$ 19.26 | ||||
| 9 | 22002428 | Cover, Dust (plastic) | 10 |
|
$ 22.21 | ||||
| 10 | 211039 | Retainer, Brake Spring | 10 |
|
- | ||||
| 11 | 213325 | Clip, Retainer | 10 |
|
$ 5.51 | ||||
| 12 | Y038315 | Tool, Brake Pkg Assy | 10 |
|
- | ||||
| 13 | WP912618 | Screw,stop Lug(center Shaft) (Replaces: 211375) | 10 |
|
$ 6.98 | ||||
| 14 | 213326 | Screw, Retaining Clip | 10 |
|
- | ||||
| 15 | WP211089 | Lug, Stop (Replaces: 211089) | 10 |
|
$ 10.16 | ||||
| 16 | 211041 | Spring, Brake | 10 |
|
- |
