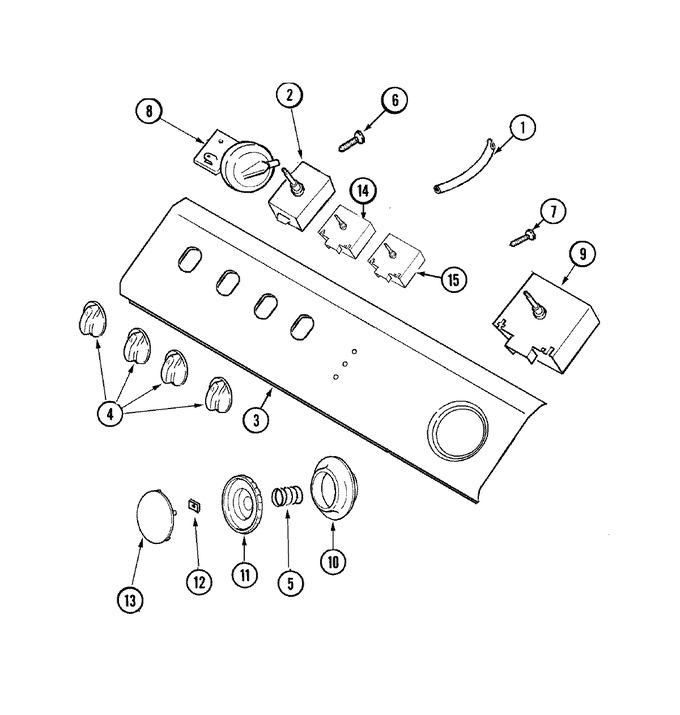

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP22001619		Tube, Air   (Replaces: 22001619)	10			$ 75.73
2	22001825		Temperature Switch - Rotary	10	Appelez-nous	-
3	22003918		Control Panel Facia (bsq)	10	Appelez-nous	-
4	22003919		Rotary Knob Assembly (bsq)	10	Appelez-nous	-
5	211065		Spring, Timer Knob	10			$ 5.70
6	22001662		Screw	10	Appelez-nous	-
7	WP3400094		Screw, Timer   (Replaces: 22001661)	10			$ 7.14
8	WP22001776		Inf Level Rot Pressure Switch   (Replaces: 22001776)	10		Immediately	$ 140.96
9	WP22004262		Timer   (Replaces: 22002189)	10			$ 411.70
10	22003920		Dial Skirt (bsq)	10	Appelez-nous	-
11	22003915		Timer Knob (grey/blue)	10			$ 9.67
12	211605		Retainer, Timer Knob	10	Appelez-nous	-
13	WP22001664		Timer Knob Insert/cap (wht)   (Replaces: 22001664)	10			$ 7.85
14	22001794		Switch, Rotary (2 Pos)	10			$ 24.91
15	22002578		Switch, Speed (rotary)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
