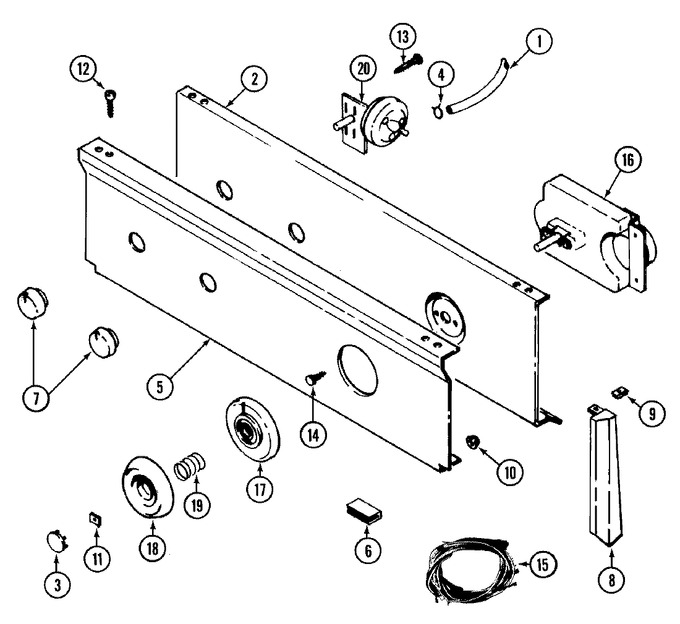

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP22001619 | Tube, Water Level Switch (Replaces: 22001036) | 10 |
|
$ 75.73 | ||||
| 2 | WP489128 | Screw (Replaces: 315483) | 10 |
|
$ 9.79 | ||||
| 2 | 22001132 | Plate, Support (rotary Switch) | 10 |
|
- | ||||
| 2 | 204807 | Grnd.wire,supp.plte To Top Cvr | 10 |
|
- | ||||
| 3 | 22001445 | Cap, Knob (blk) | 10 |
|
- | ||||
| 4 | WP596669 | Clamp,water Level Swtch Tube (Replaces: 410296) | 10 |
|
Immediately | $ 7.56 | |||
| 5 | 22001568 | Panel, Control (blk) | 10 |
|
- | ||||
| 6 | 214897 | Pad, Control Panel | 10 |
|
- | ||||
| 7 | 22001267 | Knob, Selector Switch (blk) | 10 |
|
- | ||||
| 8 | 22001563 | Cap, End (lt-blk) | 10 |
|
- | ||||
| 8 | 22001562 | Cap, End (rt-blk) | 10 |
|
- | ||||
| 9 | 214894 | Fastener, End Cap | 10 |
|
- | ||||
| 10 | 214872 | Palnut, End Cap | 10 |
|
- | ||||
| 11 | 211605 | Retainer, Timer Knob | 10 |
|
- | ||||
| 12 | 314728 | Screw,ctrl.pnl & End Cap(blk) | 10 |
|
- | ||||
| 13 | WPW10139210 | Screw, No.8 X 5/16 Inch (Replaces: 211168) | 10 |
|
$ 6.75 | ||||
| 14 | 216412 | Screw | 10 |
|
- | ||||
| 15 | 22001569 | Wire Harness, Main | 10 |
|
- | ||||
| 16 | 22001570CP | Timer Rpr (Replaces: 22001570) | 10 |
|
- | ||||
| 17 | 22001571 | Bezel, Timer Dial (blk) | 10 |
|
$ 33.62 | ||||
| 18 | 206892 | Control Knob | 10 |
|
$ 9.04 | ||||
| 19 | 211065 | Spring, Timer Knob | 10 |
|
$ 5.70 | ||||
| 20 | 208205 | Switch, Pressure | 10 |
|
- | ||||
| 21 | 16000327 | Guide, Quick Ref. - Maytag | 10 |
|
- | ||||
| 21 | 16007386 | Manual, Use & Care | 10 |
|
- | ||||
| 21 | 22001572 | Manual, Use & Care (french) | 10 |
|
- |
