02 - Burner, Manifold And Gas Control


03 - Body Parts


04 - Backguard And Cooktop Parts


05 - Broiler Drawer Parts


06 - Door Parts

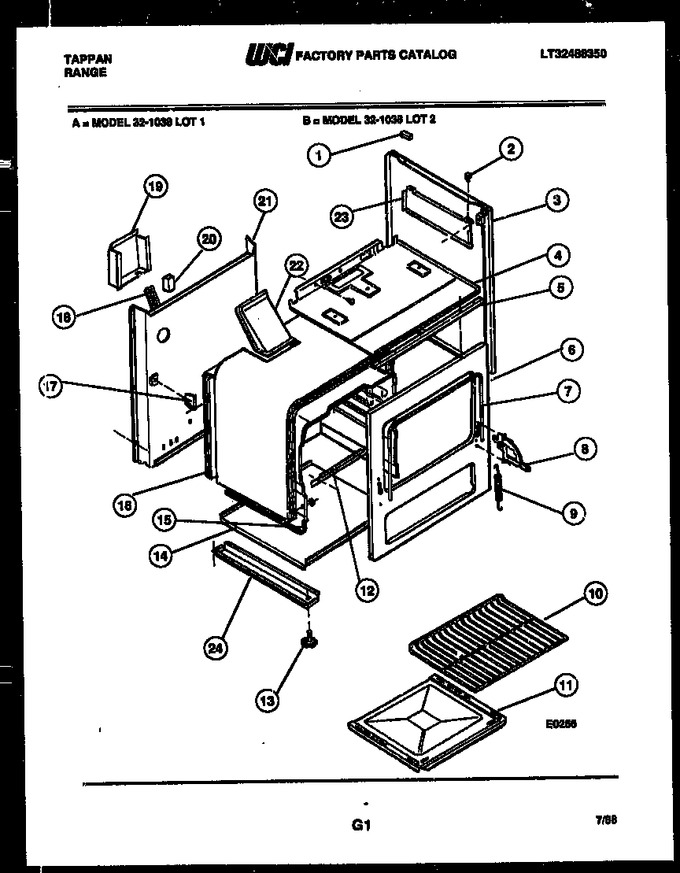

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3016129		Grommet Main Top		Appelez-nous	-
2	3051063		Grommet		Appelez-nous	-
3	3051061		Side Body White (2)		Appelez-nous	-
4	3017174		Bottom Burner Box		Appelez-nous	-
5	3131811		Support-control Panel		Appelez-nous	-
6	3017048		Front Frame		Appelez-nous	-
7	3009427		Seal-oven Door		Appelez-nous	-
8	3051077		Hinge Assy (lt)		Appelez-nous	-
9	3009435		Spring Oven Door (2)		Appelez-nous	-
10	3015714		Rack - Oven (2)		Appelez-nous	-
11	3017168		Liner-oven Bottom		Appelez-nous	-
12	3131038		Support-oven Bottom		Appelez-nous	-
13	3051080		Leg Leveler (4)		Appelez-nous	-
14	3011645		Bottom - Main		Appelez-nous	-
15	3131033		Liner (lt)		Appelez-nous	-
16	3017171		Insul (wrap)		Appelez-nous	-
17	3051096		Support-oven Rear (2)		Appelez-nous	-
18	3131046		Channel Main Back		Appelez-nous	-
19	08008357		Cover - Spark Module		Appelez-nous	-
20	3015197		Spark - Module		Appelez-nous	-
21	3013340		Main Back		Appelez-nous	-
22	3017173		Vent Box		Appelez-nous	-
23	3131053		Shield Burner Box (rt)		Appelez-nous	-
24	3051081		Base-rail		Appelez-nous	-
15A	3131032		Liner (rh)		Appelez-nous	-
15B	3017166		Liner (top)		Appelez-nous	-
15C	3017167		Liner (back)		Appelez-nous	-
16A	3017172		Insul (back)		Appelez-nous	-
23A	3131054		Shield Burner Box (lt)		Appelez-nous	-
23B	3131791		Clip B/s (2) (non-illustrated)				$ 19.01
8A	3051078		Hinge Assy (rt)		Appelez-nous	-
