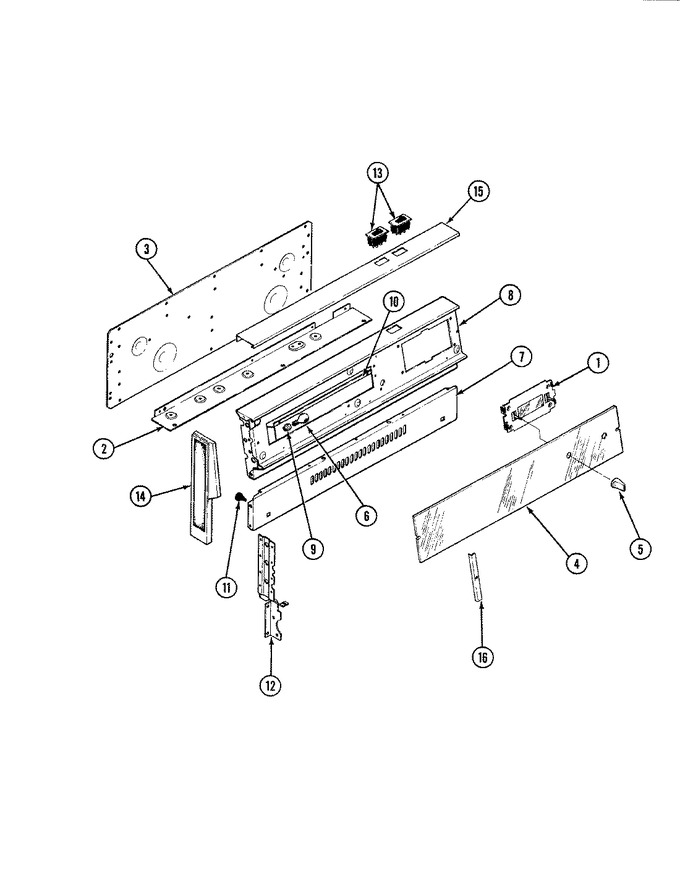

02 - Control Panel (31gb-3kx, 31gg-3kx)
03 - Door (31gb-3kx, 31gg-3kx)
04 - Gas Controls (31gb-3kx, 31gg-3kx)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7602P097-60 | Clock | 07 |
|
- | ||||
| 1 | 7602P057-60 | Clock | 01 |
|
- | ||||
| 2 | 4005F034-80 | Cover, Bottom | 01 |
|
- | ||||
| 3 | 4005F195-80 | Cover, Backguard Wire | 01 |
|
- | ||||
| 4 | 7902P183-60 | Glass, Backguard | 01 |
|
- | ||||
| 5 | 7711P422-60 | Knob, Clock | 01 |
|
- | ||||
| 5 | 7711P172-60 | Knob, Clock (blk) | 01 |
|
$ 23.55 | ||||
| 6 | 7407P031-60 | Lamp, Backguard | 01 |
|
- | ||||
| 7 | 2620W018-90 | + Panel, Bkgd Lower | 01 |
|
- | ||||
| 9 | 7408P002-60 | Receptacle, Lamp | 01 |
|
- | ||||
| 10 | 3602F003-71 | Reflector Lamp | 01 |
|
- | ||||
| 11 | 7105P002-60 | Support, Main Top | 01 |
|
- | ||||
| 12 | 0862418 | Support | 01 |
|
- | ||||
| 12 | 0862417 | Support | 01 |
|
- | ||||
| 13 | 7403P067-60 | Switch, Rocker (blk) (Replaces: 7403P102-60) | 01 |
|
$ 91.35 | ||||
| 14 | 7726P019-60 | Trim, Bkgd. | 01 |
|
- | ||||
| 14 | 7726P008-60 | Trim, Bkgd. (lt) | 01 |
|
- | ||||
| 15 | 7715P017-60 | Trim, Bkgd | 01 |
|
- | ||||
| 16 | 7720P088-60 | Trim, Glass Ret | 01 |
|
- |
