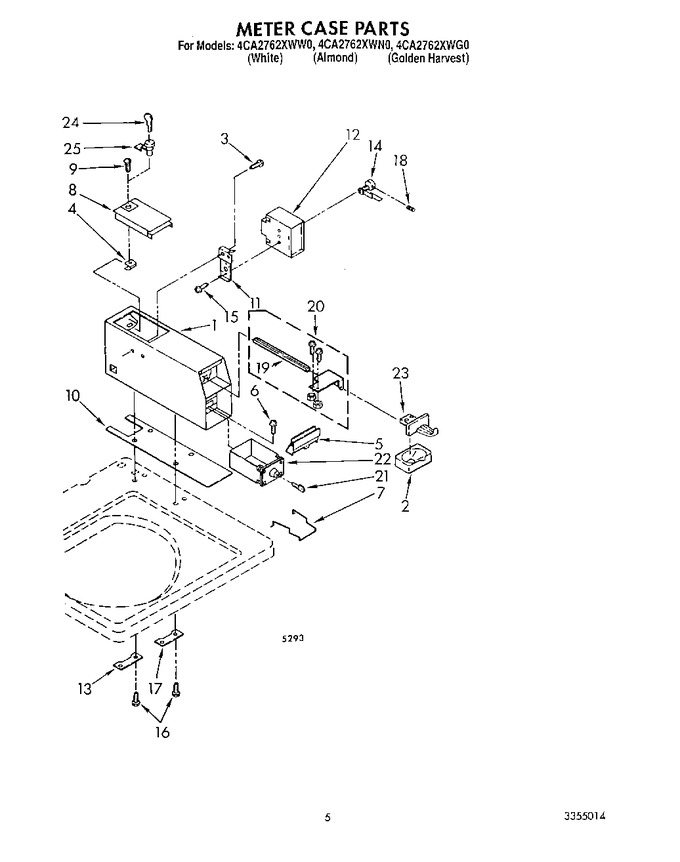

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3357357		Meter Case (white)		Appelez-nous	-
1	3357358		Meter Case (for Almond Model)		Appelez-nous	-
1	3357359		Meter Case (for Golden Harvest Model)		Appelez-nous	-
2	WP385421		Coin Funnel   (Replaces: 385421)			Immediately	$ 66.78
3	339805		Screw, 10-32 X 3/16				$ 12.05
4	WP90406		Nut, Cage   (Replaces: 90406)				$ 7.33
5	3351152		Spacer, Money Vault (golden Harvest)		Appelez-nous	-
5	3351150		Spacer (money Vault) (white)		Appelez-nous	-
5	3351151		Spacer, Money Vault (for Almond Model)		Appelez-nous	-
6	3353994		Bolt (5/16 - 18 X 2 1/2)		Appelez-nous	-
7	3352295		Guide, Drawer		Appelez-nous	-
8	W11283272		Door, Service (white)   (Replaces: 385757)				$ 95.29
8	385758		Door, Service (almond)		Appelez-nous	-
8	385760		Door, Service (golden Harvest)		Appelez-nous	-
9	358409		Screw & Washer		Appelez-nous	-
10	WP3954812		Cushion, Case   (Replaces: 3348850)				$ 27.99
11	385575		Bracket, Timer				$ 94.31
12	3354856		Timer, 60 Hz.		Appelez-nous	-
13	3353813		Plate, Mounting				$ 47.08
14	WP354987		E-ring   (Replaces: 354987)			Immediately	$ 10.58
14	385571		Clutch, Timer				$ 42.89
15	WP356418		Screw, Timer   (Replaces: 96435)				$ 7.13
16	W11715721		Bolt (3)   (Replaces: 3349065)				$ 6.41
17	3347825		Plate, Mounting		Appelez-nous	-
18	98654		Screw, Set		Appelez-nous	-
19	WP8576635		Bolt, Slide Mechanism   (Replaces: 385559)			Immediately	$ 67.13
20	385558		Slide, Extension Bag Assembly		Appelez-nous	-
