SELECT A DIAGRAM

01 - Cover

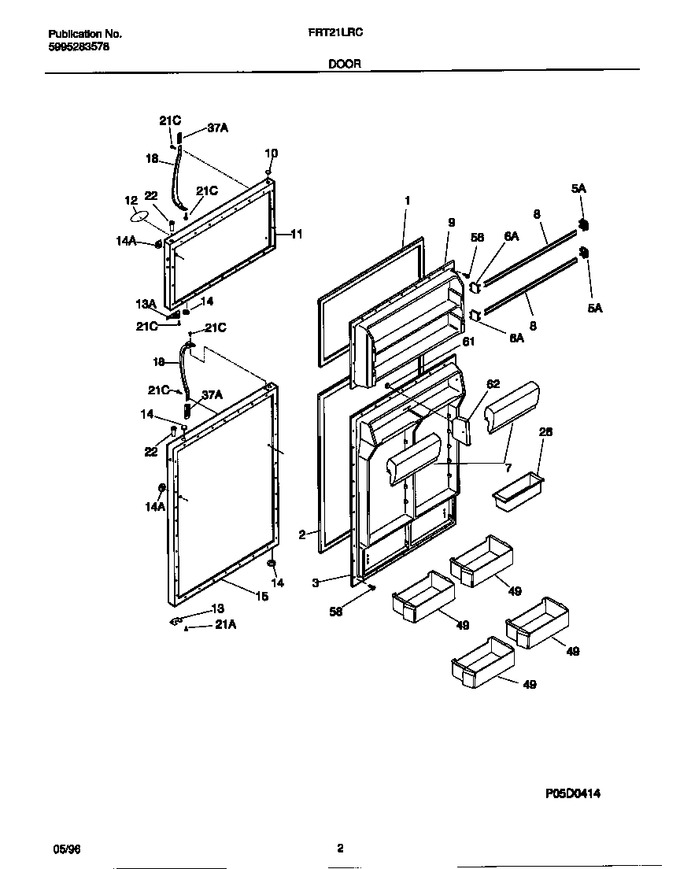

02 - Door


03 - Cabinet


04 - Shelves/controls


05 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608913		Gasket-frzr Door, White, Magnetic		Appelez-nous	-
2	215732413		Gasket-refr Door, White, Magnetic		Appelez-nous	-
3	5303275674		Panel-inner Door, Refr		Appelez-nous	-
5	5303323480		Support-door Rack, Rh   (Replaces: 5303017377)				$ 14.18
6	5303323481		Support-door Rack, Lh   (Replaces: 5303017380)			Immediately	$ 14.18
8	215474045		Rack-door, 26.28`` X 1.10``		Appelez-nous	-
9	5303206631		Panel-inner Door, Frzr		Appelez-nous	-
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
11	5303917608		Panel-frzr Door, White, W/insulation		Appelez-nous	-
12	215518000		Magnet-nameplate (not Illustrated)		Appelez-nous	-
12	215008607		Label-nameplate, White (not Illustrated)		Appelez-nous	-
12	218156514		Nameplate Assy, White, With Magnet		Appelez-nous	-
12	218364001		Frame-nameplate, White		Appelez-nous	-
13	218249001		Door Stop, White, Frzr Section				$ 82.06
13	5303212491		Door Stop, Refr Section		Appelez-nous	-
14	240494001		Plug-button, White, Handle/dr Stop   (Replaces: 5308000090)			Immediately	$ 18.20
14	240494001		Plug-button,white ,refr Door Front ,   (Replaces: 215352201)			Immediately	$ 18.20
15	5303917623		Panel-refr Door, White, W/insul & Brace		Appelez-nous	-
18	218363401		Handle-door, White				$ 85.29
21	218252201		Screw, No. 8 Truss Head, 10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
21	218251900		Screw, No. 8 Oval Head, 10-32 (ca) X 5/8, Cross Recessed				$ 10.55
22	218519300		Bearing-hinge				$ 14.60
26	3204522		Container-egg				$ 98.33
37	215867058		Trim-handle, 4.97``, White, W/band & Lock				$ 69.41
37	215940700		Lock-handle Trim, Stick-on (not Illustrated)		Appelez-nous	-
49	215441502		Bin-door, Gallon, With Trim   (Replaces: 218592306)				$ 176.87
58	5303314236		Screw, Truss/ph Head, 8-18ab X 0.500		Appelez-nous	-
61	5308017047		Nut, Self-threading, 1/8		Appelez-nous	-
62	5303275673		Divider-dairy Compt		Appelez-nous	-
*74200	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
*74202	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 13.46
7A	5303308337		Door-dairy, 12.25`` Wide		Appelez-nous	-
7B	5303001380		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
