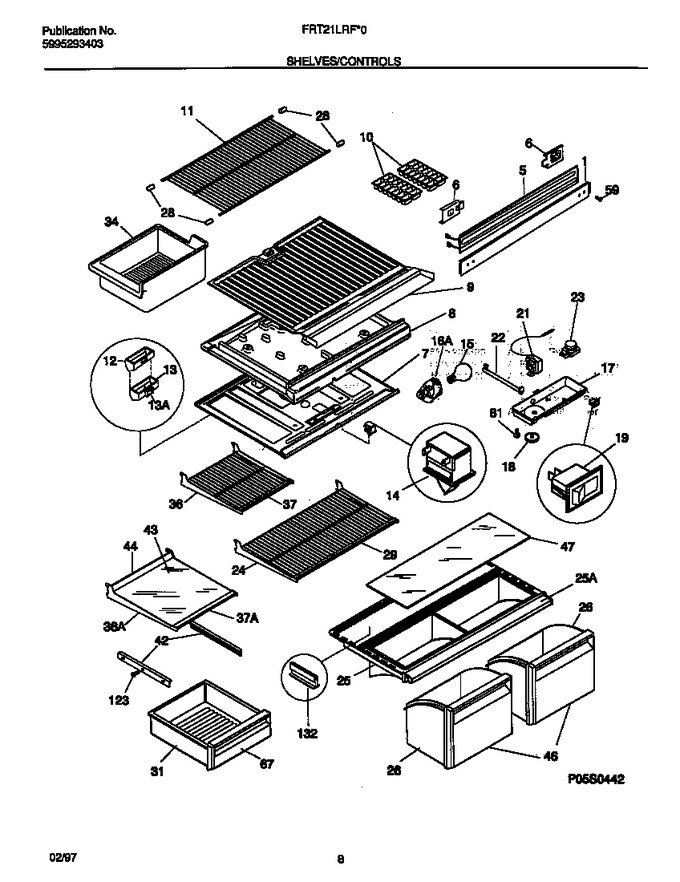

SELECT A DIAGRAM

01 - Cover


02 - Door


03 - Cabinet


04 - Shelves/controls


05 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218651901		Mullion, Almond		Appelez-nous	-
5	218271402		Heater-mullion		Appelez-nous	-
6	218279800		Tapping Plate, Mullion Mtg, (2)		Appelez-nous	-
9	5303210641		Bottom Panel-frzr		Appelez-nous	-
10	215667501		Tray-ice, Plastic			Immediately	$ 6.07
13	5303200590		Extension, Air Deflector, For 2-pc Cover		Appelez-nous	-
13	218631001		Cover-air Deflector				$ 55.19
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
16	218906802		Socket-light/lamp   (Replaces: 5308000815)				$ 17.72
18	5303311079		Knob-temp Control		Appelez-nous	-
19	5303286905		Switch-energy Saver, Rocker Type				$ 27.08
22	5303916855		Tube, Plastic, Clear, Sensor Sleeve				$ 60.96
22	5303319683		Housing-temp Sensor, Plastic				$ 27.93
24	5303300042		Shelf, Cantilever, Full Width, Wire		Appelez-nous	-
25	5303310151		Trim-crisper Cover		Appelez-nous	-
25	215363203		Cover-crisper Pan, Less Insert		Appelez-nous	-
26	215363301		Pan - Crisper, Tilt-out		Appelez-nous	-
28	3201150		End Cap-shelf,protector				$ 4.57
29	5303284483		Trim-shelf, 26.80``, Front				$ 45.36
31	215742602		Pan-meat				$ 174.40
34	5303212918		Container-ice				$ 104.66
36	215919121		Frame-pan Mtg Shelf, Cantilever, Half Width, W/hanger				$ 87.83
36	5303310497		Shelf, Cantilever, Half Width, Wire		Appelez-nous	-
37	215919411		Trim, Half Shelf				$ 63.42
43	218390525		Glass-shelf, 13.03`` X 14.57``		Appelez-nous	-
44	215919811		Trim-glass Shelf,13.07`` ,rear		Appelez-nous	-
46	215412104		Front-crisper Pan		Appelez-nous	-
47	218390526		Insert-pan Cover, Glass		Appelez-nous	-
59	240442708		Screw, Pan Head, 10-32 X 0.625   (Replaces: 218188000)				$ 8.34
60	5304455852		Screw, Hex Washer Head, 8-15a X 1.000   (Replaces: 5303207328)				$ 12.76
67	215357805		Front-meat Pan		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
123	215005101		Screw-roller/hanger`8-10 X 0.438   (Replaces: 215005100)				$ 14.89
132	215426600		Support, Crspr Cover, Rear		Appelez-nous	-
11A	5303288243		Shelf-freezer, Fixed/flat, Full Width		Appelez-nous	-
11B	218159700		Spacer-shelf (not Illustrated)		Appelez-nous	-
12A	218630800		Deflector-air		Appelez-nous	-
12B	5303001449		Seal-air Deflector, Foam Plastic, (2) (not Illustrated)				$ 2.12
17A	5303307349		Control Box		Appelez-nous	-
17B	5308016567		Nut, Anchor (not Illustrated)		Appelez-nous	-
21A	5303303674		Control-temperature				$ 163.75
21B	5303001260		Screw				$ 6.73
23A	215846602		Timer   (Replaces: 215267800)			Immediately	$ 28.20
23B	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
42A	218971202		Hanger-pan/tray, Lh   (Replaces: 5303298718)				$ 60.96
42B	218971302		Hanger-pan/tray, Rh   (Replaces: 5303298719)				$ 73.71
7A	3019038		Top Panel-refr		Appelez-nous	-
7B	5303001380		Screw		Appelez-nous	-
8A	5303019039		Divider, Styrofoam		Appelez-nous	-
8B	3205266		Edge Protector, Wiring Harness (not Illustrated)				$ 80.09
8C	3019040		Harness-wiring, Control/divider (not Illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
