SELECT A DIAGRAM

01 - Cover

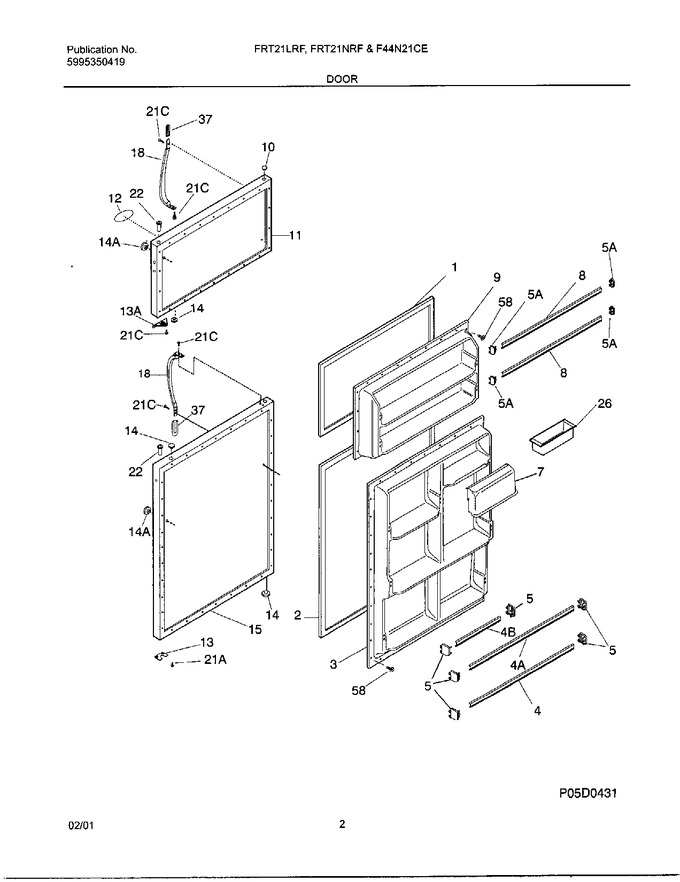

02 - Door


04 - Cabinet


08 - Shelves


12 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	215393201		Panel-inner Door, Refr		Appelez-nous	-
4	215516220		Rack-door, 23.09`` X 2.04``   (Replaces: 218763617)				$ 54.58
5	218758701		Support-door Rack, Rh/lh		Appelez-nous	-
7	5303310094		Door-dairy		Appelez-nous	-
8	215516220		Rack-door,23.47`` X 2.04`` ,(2)   (Replaces: 218763618)				$ 54.58
9	215530301		Panel-inner Door, Frzr		Appelez-nous	-
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
10	5303001308		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	5303917810		Panel-frzr Door, White, W/insulation		Appelez-nous	-
11	5303917811		Panel-frzr Door, Almond, W/insulation		Appelez-nous	-
12	218364002		Frame-nameplate, Almond		Appelez-nous	-
12	218364001		Frame-nameplate, White		Appelez-nous	-
13	5303212491		Door Stop, Refr Section		Appelez-nous	-
14	5308000181		Plug-button, Almond		Appelez-nous	-
14	240494001		Plug-button, White   (Replaces: 5308000090)			Immediately	$ 18.20
15	5303917813		Panel-refr Door, Almond, W/insul & Brace		Appelez-nous	-
15	5303917812		Panel-refr Door, White, W/insul & Brace		Appelez-nous	-
18	218668002		Handle-door, Almond		Appelez-nous	-
18	218668001		Handle-door, White			Immediately	$ 66.16
22	218519300		Bearing-hinge				$ 14.60
26	3204522		Container-egg				$ 98.33
37	215867058		Trim-handle, 4.97``, White, W/band & Lock				$ 69.41
37	215867059		Trim-handle,4.97`` ,almond ,		Appelez-nous	-
58	218749600		Screw,10 Pan Hd ,8-18 X .5				$ 5.15
13A	218249002		Door Stop, Almond, Frzr Section				$ 47.88
13A	218249001		Door Stop, White, Frzr Section				$ 82.06
14A	240494001		Plug-button,white ,refr Door Front ,   (Replaces: 215352201)			Immediately	$ 18.20
14A	215352211		Plug-button,almond ,refr Door Front ,		Appelez-nous	-
21A	218251900		Screw,8 Oval Head ,10-32ca X 0.625 ,				$ 10.55
21C	218252201		Screw,8 Truss Hd ,10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
4A	218763616		Rack-door,22.51`` X 2.04``		Appelez-nous	-
4B	215516220		Rack-door, 9.24`` X 2.04``   (Replaces: 218763615)				$ 54.58
5A	218758602		Support-door Rack, Rh/lh   (Replaces: 218758601)			Immediately	$ 23.39
F1	215608903		Gasket-frzr Door, Almond, Magnetic		Appelez-nous	-
F1	215608913		Gasket-frzr Door, White, Magnetic		Appelez-nous	-
F2	218730609		Gasket-refr Door, White, Magnetic				$ 207.27
F2	218730610		Gasket-refr Door, Almond, Magnetic				$ 151.88
NI	215518000		Magnet-nameplate		Appelez-nous	-
NI	215008617		Label-nameplate,almond ,crown		Appelez-nous	-
NI	215008607		Label-nameplate,white		Appelez-nous	-
NI	215008608		Label-nameplate,almond		Appelez-nous	-
NI	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
NI	215782300		Lock-handle Trim,snap-in				$ 34.49
NI	215940700		Lock-handle Trim, Stick-on		Appelez-nous	-
NI	218676001		Band-decorative,chrome ,handle Trim				$ 36.17
NI	215008616		Label-nameplate,white ,crown		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
