SELECT A DIAGRAM

01 - Cover

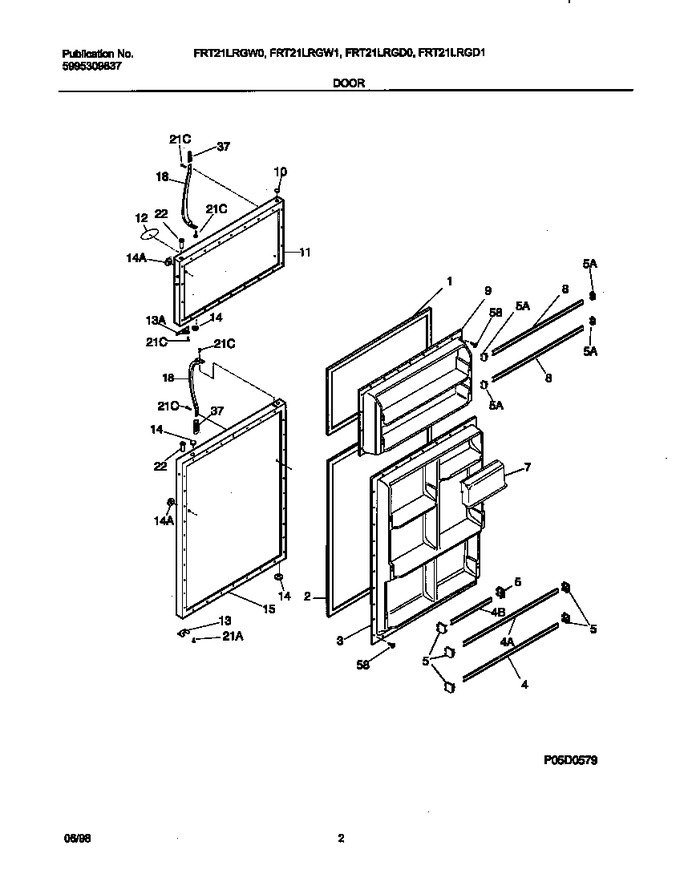

02 - Door


03 - Cabinet


04 - Shelves


05 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608903		Gasket-frzr Door, Almond, Magnetic		Appelez-nous	-
2	218730610		Gasket-refr Door, Almond, Magnetic				$ 151.88
3	215393201		Panel-inner Door, Refr		Appelez-nous	-
4	215516220		Rack-door, 9.24`` X 2.04``   (Replaces: 218763615)				$ 54.58
4	218763616		Rack-door,22.51`` X 2.04``		Appelez-nous	-
4	215516220		Rack-door, 23.09`` X 2.04``   (Replaces: 218763617)				$ 54.58
5	218758602		Support-door Rack, Rh/lh   (Replaces: 218758601)			Immediately	$ 23.39
7	5303308341		Door-dairy,12.96`` Wide				$ 97.02
8	215516220		Rack-door,23.47`` X 2.04`` ,(2)   (Replaces: 218763618)				$ 54.58
9	215530301		Panel-inner Door, Frzr		Appelez-nous	-
10	5303001308		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	5303917811		Panel-frzr Door, Almond, W/insulation		Appelez-nous	-
12	218156515		Nameplate Assy, Almond, With Magnet		Appelez-nous	-
12	218364002		Frame-nameplate, Almond		Appelez-nous	-
13	218249002		Door Stop, Almond, Frzr Section				$ 47.88
13	218800300		Door Stop,plated		Appelez-nous	-
14	215352211		Plug-button, Almond, Handle Mtg, Refr Door Front		Appelez-nous	-
14	5308000181		Plug-button, Almond		Appelez-nous	-
15	5303917813		Panel-refr Door, Almond, W/insul & Brace		Appelez-nous	-
18	218668002		Handle-door, Almond		Appelez-nous	-
21	218252201		Screw,8 Truss Hd ,10-32ca X .5   (Replaces: 218252200)			Immediately	$ 14.18
21	218251900		Screw,8 Oval Head ,10-32ca X .625 ,cross Recessed				$ 10.55
22	218519300		Bearing-hinge				$ 14.60
37	215867059		Trim-handle, 4.97``, Almond, W/band & Lock		Appelez-nous	-
58	218749600		Screw,10 Pan Hd ,8-18 X .5				$ 5.15
*18601	215008608		Label-nameplate,almond		Appelez-nous	-
*18603	215518000		Magnet-nameplate		Appelez-nous	-
*18604	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
37A	215940700		Lock-handle Trim, Stick-on		Appelez-nous	-
37B	218676001		Band-decorative,chrome				$ 36.17
5A	218809701		Support-door Rack, Lh		Appelez-nous	-
5B	218809801		Support-door Rack, Rh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
