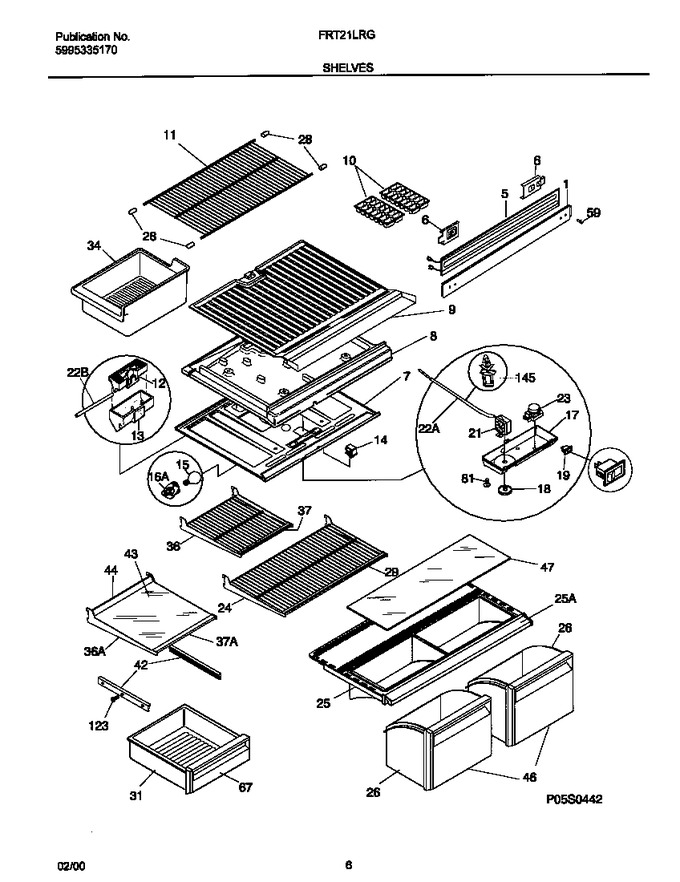

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218651901		Mullion, Almond		Appelez-nous	-
5	218781002		Heater-mullion		Appelez-nous	-
6	218845602		Tapping Plate,mullion Mtg				$ 14.86
7	218866101		Top Panel-refr		Appelez-nous	-
8	218909706		Divider,styrofoam ,w/foil Tape		Appelez-nous	-
9	218865900		Bottom Panel-frzr				$ 43.29
10	215667501		Tray-ice,plastic (optiional Accessory)			Immediately	$ 6.07
11	5303288243		Shelf-freezer, Fixed/flat, Full Width, Wire		Appelez-nous	-
12	218730000		Deflector-air				$ 57.60
13	218631001		Cover-air Deflector				$ 55.19
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
16	218906802		Socket-light/lamp   (Replaces: 218906801)				$ 17.72
17	5304414816		Control Box		Appelez-nous	-
18	5303311079		Knob-temp Control		Appelez-nous	-
19	5303286905		Switch-energy Saver, Rocker Type				$ 27.08
21	5304404821		Control-temperature   (Replaces: 5304403736)			Immediately	$ 164.57
22	218731104		Tube, Pvc, White, @ Air Deflector, Insulator				$ 35.64
22	5303916855		Tube, Plastic, Clear, Sensor Sleeve				$ 60.96
23	215846602		Timer-defrost,60 Hz ,120 V ,10 Hour/30 Min   (Replaces: 215846606)			Immediately	$ 28.20
24	5303300042		Shelf, Cantilever, Full Width, Wire		Appelez-nous	-
25	215363203		Cover-crisper Pan, Less Insert		Appelez-nous	-
25	5303310151		Trim-crisper Cover		Appelez-nous	-
26	215363301		Pan - Crisper, Tilt-out		Appelez-nous	-
28	3201150		End Cap-shelf,protector ,frzr Shelf				$ 4.57
29	5303284483		Trim-shelf, 26.80``, Front				$ 45.36
31	215742602		Pan-meat				$ 174.40
34	5303212918		Container-ice				$ 104.66
36	5303310497		Shelf, Cantilever, Half Width, Wire		Appelez-nous	-
36	215919173		Frame-half Shelf,cantilever		Appelez-nous	-
37	5303284484		Trim-shelf, 13.06``, Front		Appelez-nous	-
37	215919411		Trim-half Shelf, Front				$ 63.42
43	218390525		Glass-shelf, 13.03`` X 14.57``		Appelez-nous	-
44	215919811		Trim-glass Shelf,13.07`` ,rear		Appelez-nous	-
46	215412105		Front-crisper Pan,(2)				$ 240.77
47	218390526		Insert-pan Cover, Glass		Appelez-nous	-
59	240442708		Screw,pan Hd ,10-32 X 0.625 ,hinge/mullion,thread Formin   (Replaces: 218188000)				$ 8.34
67	215357809		Front-meat Pan		Appelez-nous	-
81	218362501		Screw,hex Washer Head ,8-18ab X 1.250   (Replaces: 218362500)				$ 12.05
123	215005101		Screw-roller/hanger`8-10 X 0.438   (Replaces: 215005100)				$ 14.89
145	218660800		Clip, Plastic, Temp Sensor Mtg, Snap-in		Appelez-nous	-
*02257	218878600		Wiring Harness,control/divider		Appelez-nous	-
*02258	5303299664		Spacer-shelf				$ 24.10
*02259	5308016567		Nut-anchor		Appelez-nous	-
*02260	5303001260		Screw				$ 6.73
*02261	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
*02262	3205266		Edge Protector, Wiring Harness				$ 80.09
42A	218971202		Hanger-meat Pan,lh				$ 60.96
42B	218971302		Hanger-meat Pan,rh				$ 73.71

    View Diagram in Separate Window       Print Part List
