01 - Base
02 - Cabinet
03 - Clutch, Brake & Belts

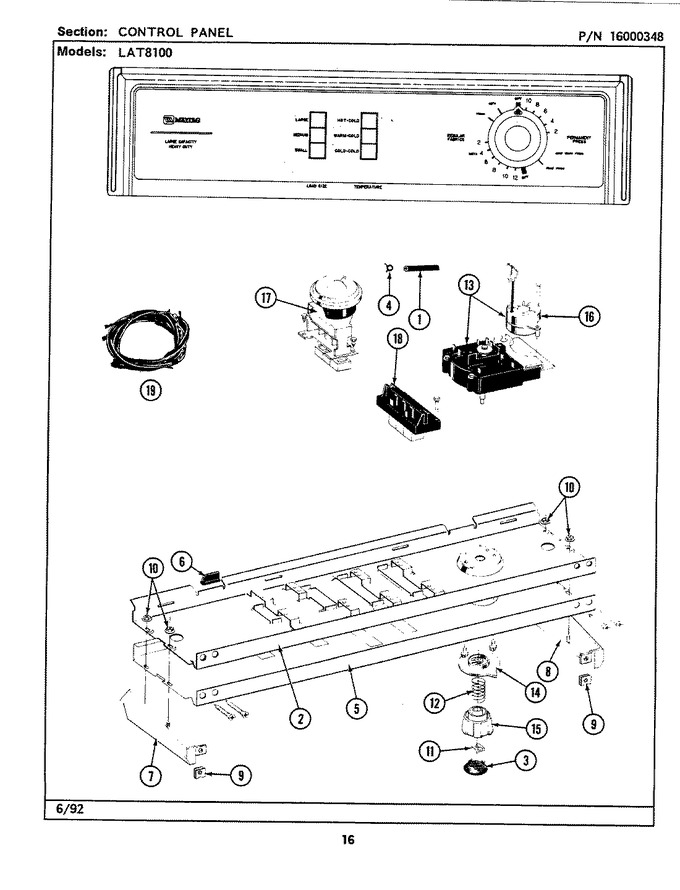

04 - Control Panel
05 - Top
06 - Transmission
07 - Tub
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP22001619 | Air Dome And Tube (Replaces: 212942) | A0 |
|
$ 75.73 | ||||
| 2 | 214818 | Back Up Plate | A0 |
|
- | ||||
| 2 | 210932 | Screw, No.8 X 9/16 Ctsk | A0 |
|
- | ||||
| 3 | 215821 | Cap, Knob | A0 |
|
- | ||||
| 4 | WP596669 | Clamp,water Level Swtch Tube (Replaces: 410296) | A0 |
|
Immediately | $ 7.56 | |||
| 5 | 210932 | Screw, No.8 X 9/16 Ctsk | A0 |
|
- | ||||
| 5 | 207606 | Control Panel | A0 |
|
- | ||||
| 6 | 214897 | Pad, Control Panel | A0 |
|
- | ||||
| 7 | 207215 | End Cap Lh | A0 |
|
- | ||||
| 8 | 207216 | End Cap Rh | A0 |
|
- | ||||
| 9 | 214894 | Fastener, End Cap | A0 |
|
- | ||||
| 10 | 214872 | Palnut, End Cap | A0 |
|
- | ||||
| 11 | 211605 | Retainer, Timer Knob | A0 |
|
- | ||||
| 12 | 211065 | Spring, Timer Knob | A0 |
|
$ 5.70 | ||||
| 13 | WP3400014 | Screw-timer To Control Pane (Replaces: 213966) | A0 |
|
$ 6.98 | ||||
| 13 | 207379 | Timer | A0 |
|
$ 195.31 | ||||
| 14 | 215827 | Timer Dial Skirt | A0 |
|
- | ||||
| 15 | 215828 | Knob, Timer (blk) | A0 |
|
$ 11.97 | ||||
| 16 | 205033 | Timer Motor 120-60 | A0 |
|
- | ||||
| 17 | WPW10139210 | Screw, No.8 X 5/16 Inch (Replaces: 211168) | A0 |
|
$ 6.75 | ||||
| 17 | 207363 | 3 Level Pressure Switch | A0 |
|
- | ||||
| 18 | 207368 | Temp Control Switch - 3 Button | A0 |
|
- | ||||
| 18 | WP67006908 | Screw-temp. Switch To Panel (Replaces: 213117) | A0 |
|
Immediately | $ 7.16 | |||
| 19 | 207383 | Wire Harness | A0 |
|
- |
