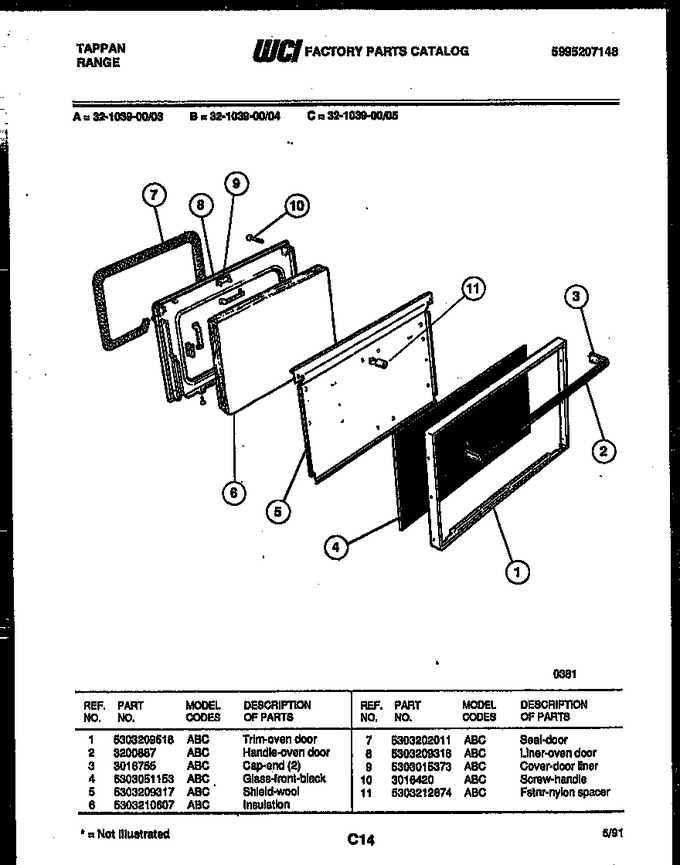

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303209518 | Trim-oven Door |
|
- | |||||
| 2 | 3200887 | Handle-oven Door |
|
- | |||||
| 3 | 3016755 | Cap, End (2) |
|
- | |||||
| 4 | 5303051153 | Glass-front-black |
|
- | |||||
| 5 | 5303209317 | Shield-wool |
|
- | |||||
| 6 | 5303210607 | Insulation |
|
- | |||||
| 7 | 5303202011 | Seal, Door |
|
$ 166.84 | |||||
| 8 | 5303209318 | Liner-oven Door |
|
- | |||||
| 9 | 5303015373 | Cover-door Liner |
|
- | |||||
| 10 | 3016420 | Screw, Handle |
|
- | |||||
| 11 | 5303212674 | Fstnr-nylon Spacer |
|
- |
