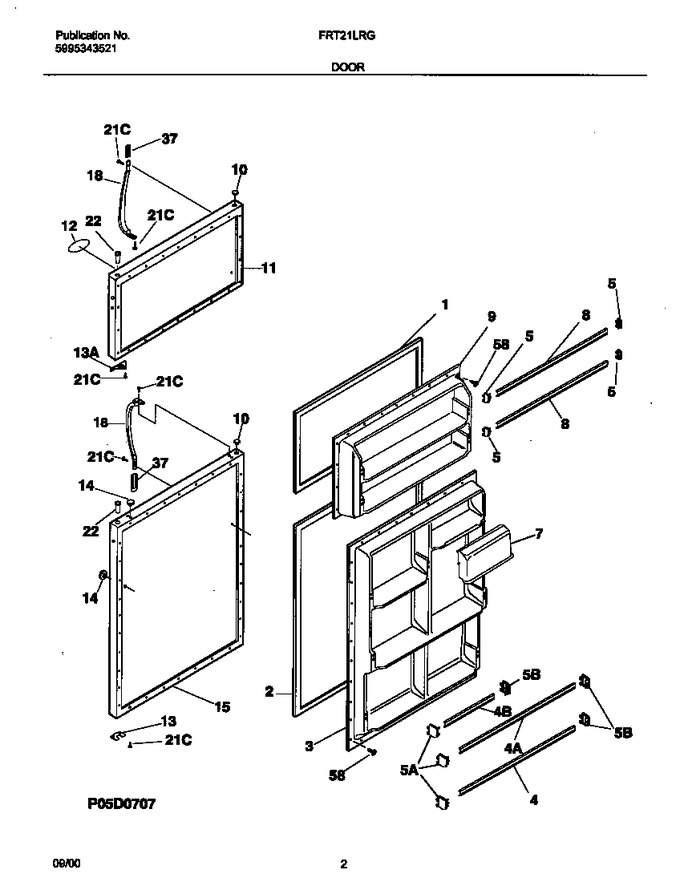

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 215608972 | Gasket-frzr Door,white ,magnetic |
|
- | |||||
| 2 | 218730609 | Gasket-refr Door, White, Magnetic |
|
$ 207.27 | |||||
| 3 | 215393201 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 218763616 | Rack-door,22.51`` X 2.04`` |
|
- | |||||
| 4 | 215516220 | Rack-door, 23.09`` X 2.04`` (Replaces: 218763617) |
|
$ 54.58 | |||||
| 4 | 215516220 | Rack-door, 9.24`` X 2.04`` (Replaces: 218763615) |
|
$ 54.58 | |||||
| 5 | 218809801 | Support-door Rack, Rh |
|
- | |||||
| 5 | 218809701 | Support-door Rack, Lh |
|
- | |||||
| 5 | 218758602 | Support-door Rack, Rh/lh (Replaces: 218758601) |
|
Immediately | $ 23.39 | ||||
| 7 | 5303308341 | Door-dairy,12.96`` Wide |
|
$ 97.02 | |||||
| 8 | 215516220 | Rack-door,23.47`` X 2.04`` ,(2) (Replaces: 218763618) |
|
$ 54.58 | |||||
| 9 | 215530301 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5308000134 | Plug-button, White, Hinge Brg Hole |
|
$ 5.62 | |||||
| 11 | 5303917810 | Panel-frzr Door, White, W/insulation |
|
- | |||||
| 12 | 218156514 | Nameplate Assy, White, With Magnet |
|
- | |||||
| 13 | 218249001 | Door Stop, White, Frzr Section |
|
$ 82.06 | |||||
| 13 | 218800300 | Door Stop,plated |
|
- | |||||
| 14 | 240494001 | Plug-button, White (Replaces: 218915701) |
|
Immediately | $ 18.20 | ||||
| 15 | 5303917812 | Panel-refr Door, White, W/insul & Brace |
|
- | |||||
| 18 | 218668001 | Handle-door, White |
|
Immediately | $ 66.16 | ||||
| 21 | 218252201 | Screw,8 Truss Hd ,10-32ca X 0.500 (Replaces: 218252200) |
|
Immediately | $ 14.18 | ||||
| 22 | 218519300 | Bearing-hinge |
|
$ 14.60 | |||||
| 37 | 215867058 | Trim-handle, 4.97``, White, W/band & Lock |
|
$ 69.41 | |||||
| 58 | 218781101 | Screw,pan Head ,8-18 X 0.625 (Replaces: 218781100) |
|
$ 15.60 | |||||
| *97561 | 215008607 | Label-nameplate,white |
|
- | |||||
| *97562 | 215518000 | Magnet-nameplate |
|
- | |||||
| *97564 | 218364001 | Frame-nameplate, White |
|
- | |||||
| *97565 | 218676001 | Band-decorative,chrome ,handle Trim |
|
$ 36.17 | |||||
| *97566 | 218906701 | Lock-handle Trim,stick-on |
|
$ 67.86 | |||||
| *97567 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 |
