View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
02 - Doors
03 - Cabinet

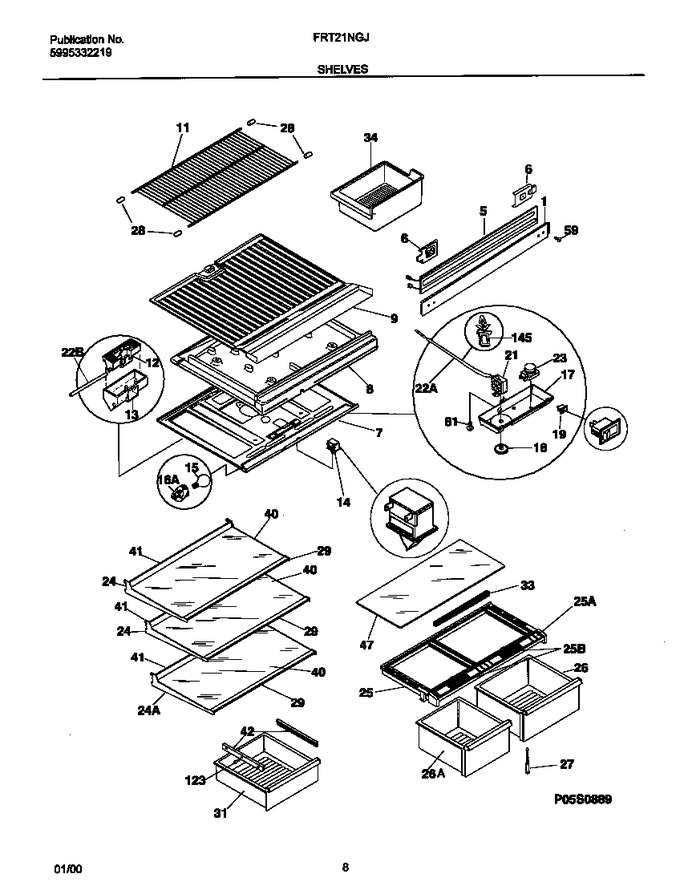

04 - Shelves
05 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218651901 | Mullion, Almond |
|
- | |||||
| 5 | 218781002 | Heater-mullion |
|
- | |||||
| 6 | 218845602 | Tapping Plate,mullion Mtg |
|
$ 14.86 | |||||
| 7 | 218866101 | Top Panel-refr |
|
- | |||||
| 8 | 218909706 | Divider,styrofoam ,w/foil Tape |
|
- | |||||
| 9 | 218865900 | Bottom Panel-frzr |
|
$ 43.29 | |||||
| 10 | 215667501 | Tray-ice,plastic (optiional Accessory) |
|
Immediately | $ 6.07 | ||||
| 11 | 5303288243 | Shelf-freezer, Fixed/flat, Full Width |
|
- | |||||
| 12 | 218730000 | Deflector-air |
|
$ 57.60 | |||||
| 13 | 218631001 | Cover-air Deflector |
|
$ 55.19 | |||||
| 14 | 5309918806 | Switch-light/lamp |
|
Immediately | $ 21.97 | ||||
| 15 | 5303001179 | Light Bulb/lamp,40 W |
|
- | |||||
| 16 | 218906802 | Socket-light/lamp (Replaces: 218906801) |
|
$ 17.72 | |||||
| 17 | 5304414816 | Control Box |
|
- | |||||
| 18 | 5303311079 | Knob-temp Control |
|
- | |||||
| 19 | 5303286905 | Switch-energy Saver, Rocker Type |
|
$ 27.08 | |||||
| 21 | 5304404821 | Control-temperature (Replaces: 5304403736) |
|
Immediately | $ 164.57 | ||||
| 22 | 218731104 | Tube, Pvc, White, @ Air Deflector, |
|
$ 35.64 | |||||
| 22 | 5303916855 | Tube, Plastic, Clear, Sensor Sleeve |
|
$ 60.96 | |||||
| 23 | 215846602 | Timer-defrost,60 Hz ,120 V , (Replaces: 215846606) |
|
Immediately | $ 28.20 | ||||
| 24 | 215919176 | Frame-pan Mtg Shelf,cantilever , |
|
- | |||||
| 24 | 215919117 | Frame-full Shelf, Cantilever |
|
- | |||||
| 25 | 5303301490 | Control-humidity |
|
$ 54.29 | |||||
| 25 | 5303206538 | Cover-crisper Pan |
|
- | |||||
| 25 | 5304411657 | Trim-crisper Cover |
|
$ 49.56 | |||||
| 26 | 218884611 | Pan-crisper,11.35`` Wide ,lh |
|
$ 181.54 | |||||
| 26 | 218884502 | Pan-crisper,14.35`` Wide ,rh |
|
- | |||||
| 27 | 5303205987 | Support-crisper Cvr, Adjustable |
|
$ 48.41 | |||||
| 28 | 3201150 | End Cap-shelf,protector ,frzr Shelf |
|
$ 4.57 | |||||
| 29 | 215919405 | Trim-glass Shelf,26.80`` ,front |
|
- | |||||
| 31 | 218884402 | Pan-meat |
|
$ 167.13 | |||||
| 33 | 5303200329 | Gasket-pan Cover, 13.25``, Rh |
|
- | |||||
| 34 | 5303212918 | Container-ice |
|
$ 104.66 | |||||
| 40 | 218498176 | Glass-shelf,26.76`` X 14.57`` |
|
- | |||||
| 41 | 215919805 | Trim-glass Shelf, 26.80``, Rear |
|
- | |||||
| 47 | 218498177 | Insert-pan Cover,glass |
|
- | |||||
| 59 | 240442708 | Screw,pan Hd ,10-32 X 0.625 , (Replaces: 218188000) |
|
$ 8.34 | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 123 | 215005101 | Screw-roller/hanger`8-10 X 0.438 (Replaces: 215005100) |
|
$ 14.89 | |||||
| 145 | 218660800 | Clip, Plastic, Temp Sensor Mtg, Snap-in |
|
- | |||||
| *90059 | 218878600 | Wiring Harness,control/divider |
|
- | |||||
| *90060 | 5303299664 | Spacer-shelf |
|
$ 24.10 | |||||
| *90061 | 5308016567 | Nut-anchor |
|
- | |||||
| *90062 | 5303001260 | Screw |
|
$ 6.73 | |||||
| *90063 | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| *90064 | 3205266 | Edge Protector, Wiring Harness |
|
$ 80.09 | |||||
| 42A | 218971202 | Hanger-meat Pan,lh |
|
$ 60.96 | |||||
| 42B | 218971302 | Hanger-meat Pan,rh |
|
$ 73.71 |
