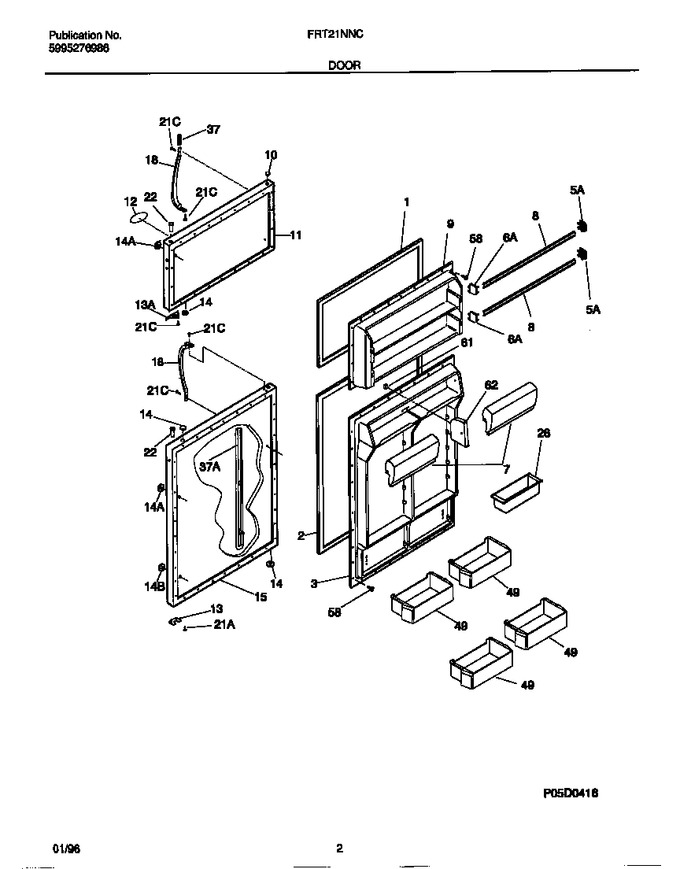

02 - Door


03 - Cabinet


04 - Shelves/controls


05 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608903		Gasket-frzr Door, Almond, Magnetic		Appelez-nous	-
2	215732403		Gasket-refr Door, Almond, Magnetic		Appelez-nous	-
3	5303275674		Panel-inner Door, Refr		Appelez-nous	-
5	5303323480		Support-door Rack, Rh   (Replaces: 5303017377)				$ 14.18
6	5303323481		Support-door Rack, Lh   (Replaces: 5303017380)			Immediately	$ 14.18
7	5303308336		Door-dairy, 12.25`` Wide				$ 163.64
8	215474041		Rack-door, 26.28`` X 1.10``		Appelez-nous	-
9	5303206631		Panel-inner Door, Frzr		Appelez-nous	-
10	5303001308		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	5303917605		Panel-frzr Door, Almond, W/insulation		Appelez-nous	-
12	215518000		Magnet-nameplate (not Illustrated)		Appelez-nous	-
12	218156513		Nameplate Assy, Almond		Appelez-nous	-
12	215008608		Label-nameplate, Almond (not Illustrated)		Appelez-nous	-
12	218364002		Frame-nameplate, Almond (not Illustrated)		Appelez-nous	-
13	5303212491		Door Stop, Refr Section		Appelez-nous	-
13	218249002		Door Stop, Almond, Frzr Section				$ 47.88
14	218074002		Plug-button, Almond, Refr Door Front		Appelez-nous	-
14	5308000181		Plug-button, Almond, Handle/dr Stop		Appelez-nous	-
14	215352211		Plug-button,almond ,refr Door Front ,		Appelez-nous	-
15	5303917640		Panel-refr Door, Almond, W/insulation		Appelez-nous	-
18	218363402		Handle-door, Almond, Hard-grip		Appelez-nous	-
21	218251900		Screw, No. 8 Oval Head, 10-32 (ca) X 5/8, Cross Recessed				$ 10.55
21	218252201		Screw, No. 8 Truss Head, 10-32 X 1/2   (Replaces: 218252200)			Immediately	$ 14.18
22	3206153		Bearing-hinge		Appelez-nous	-
26	3204522		Container-egg				$ 98.33
37	215867038		Trim-handle, 29.84``, Almond, W/band & Locks		Appelez-nous	-
37	215867026		Trim-handle, 4.97``, Almond, W/band & Locks		Appelez-nous	-
49	215441502		Bin-door, Gallon, With Trim   (Replaces: 218592306)				$ 176.87
58	5303314236		Screw, Truss/ph Head, 8-18ab X 0.500		Appelez-nous	-
61	5308017047		Nut, Self-threading, 1/8		Appelez-nous	-
62	5303275673		Divider-dairy Compt		Appelez-nous	-
*91920	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
37A	215782300		Lock-handle Trim, Snap-in (not Illustrated)				$ 34.49
37B	215940700		Lock-handle Trim, Stick-on (not Illustrated)		Appelez-nous	-
