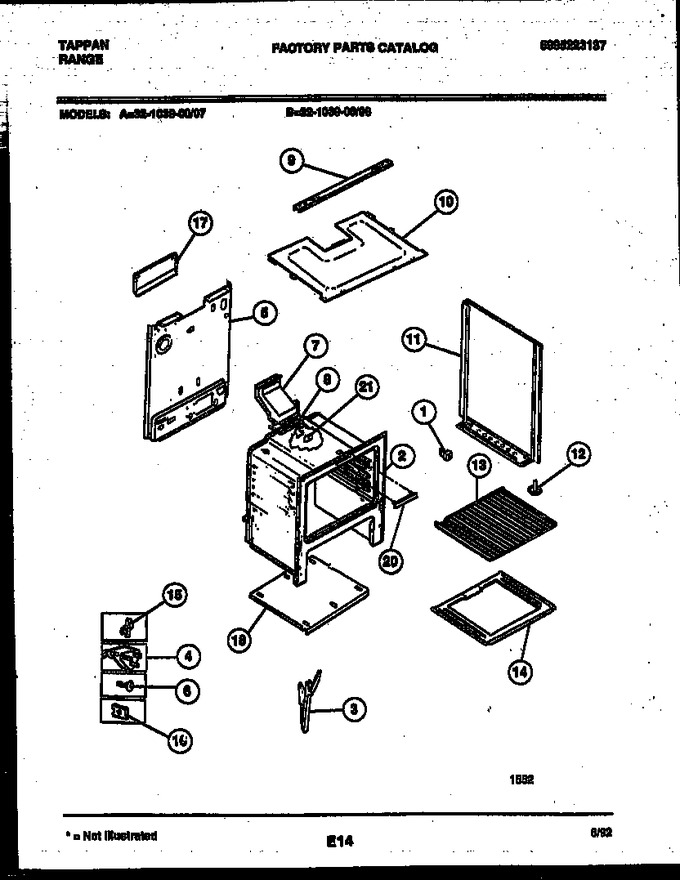

SELECT A DIAGRAM

02 - Backguard


03 - Cooktop Parts


04 - Broiler Drawer Parts


05 - Door Parts


06 - Burner Parts


07 - Body Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3014099		Spacer-bodyside, (8)				$ 3.62
3	316007001		Channel-door Hinge				$ 234.55
4	5304534377		Cord   (Replaces: 3202006)				$ 26.85
5	3203082		Back-main		Appelez-nous	-
6	316282700		Screw, Oven Bottom   (Replaces: 3131732)				$ 9.93
7	3131909		Flue		Appelez-nous	-
8	08067965		Gasket-flue		Appelez-nous	-
9	3203441		Channel-burner Supt		Appelez-nous	-
10	3204962		Burner Box		Appelez-nous	-
11	5303269545		Panel Bodyside Lh (almond)		Appelez-nous	-
11	5303269543		Panel-bodyside Rh (almond)		Appelez-nous	-
12	5303203397		Screw, Leveler (4)				$ 14.49
13	5303131973		Rack, Oven		Appelez-nous	-
14	5303212540		Bottom, Oven		Appelez-nous	-
15	5303284616		Clip-thermo Bulb				$ 9.86
16	3203010		Fastener, U Type   (Replaces: 5303012323)				$ 14.89
17	3131191		Cover, Flue		Appelez-nous	-
18	5303270160		Base-broil		Appelez-nous	-
20	5303015372		Cover, Front Main		Appelez-nous	-
21	3018607		Cover Plate				$ 10.50
*72688	3051218		Plate,oven Light		Appelez-nous	-
*72688	08067961		Fastener-power Cord		Appelez-nous	-
*72688	19100180225		Diagram, Wiring (not For Purchase)		Appelez-nous	-
*72688	3131660		Shield, Rear Wall		Appelez-nous	-
*72688	3131244		Cover, Power Cord		Appelez-nous	-
*72688	3131192		Cover-rear Wall		Appelez-nous	-
*72689	08010570		Fastener, Leveling Leg Tee Nut		Appelez-nous	-
14A	3017142		Insulation, Wrap (non-illustrated)				$ 193.50
14B	3203541		Insulation, Back (non-illustrated)		Appelez-nous	-
17A	3014226		Supt-oven Bottom		Appelez-nous	-
20A	3934056		Anti Tip, Brackets (non-illustrated)		Appelez-nous	-
20B	3202799		Shield-flue, (non-illustrated)		Appelez-nous	-
