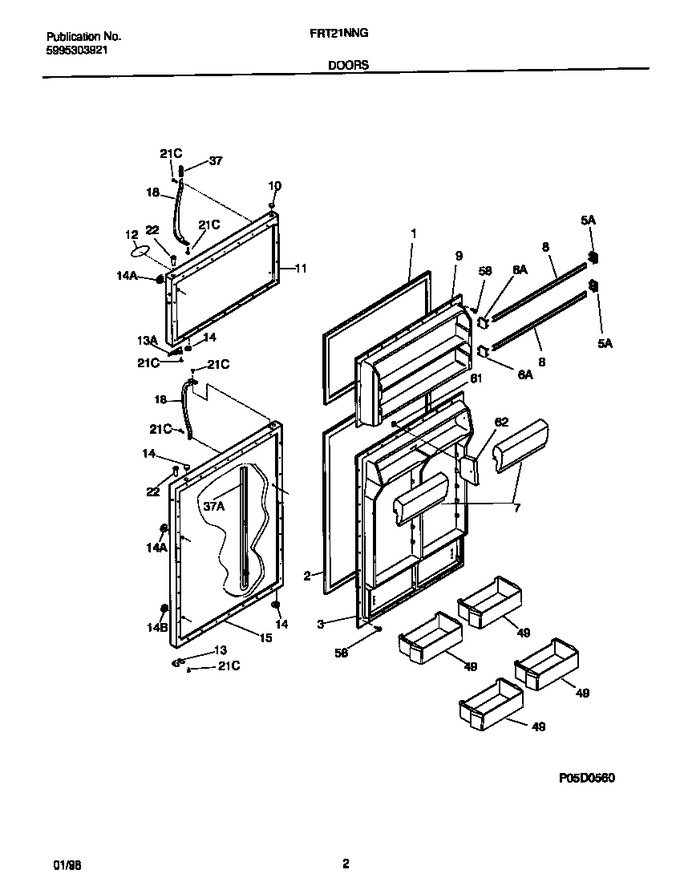

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608923		Gasket-frzr Door, Black, Magnetic		Appelez-nous	-
2	218730622		Gasket-refr Door, Black, Magnetic		Appelez-nous	-
3	5303275674		Panel-inner Door, Refr		Appelez-nous	-
5	5303323480		Support-door Rack, White, Rh				$ 14.18
6	5303323481		Support-door Rack, White, Lh			Immediately	$ 14.18
7	5303308336		Door-dairy, 12.25`` Wide				$ 163.64
8	215474045		Rack-door, 26.28`` X 1.10``		Appelez-nous	-
9	5303206631		Panel-inner Door, Frzr		Appelez-nous	-
10	5303272397		Plug-button, Black, Hinge Brg Hole		Appelez-nous	-
11	5303918031		Panel-frzr Door,black ,w/insulation		Appelez-nous	-
12	218156532		Nameplate Assy, Black, With Magnet		Appelez-nous	-
13	5303212491		Door Stop, Refr Section		Appelez-nous	-
13	218249003		Door Stop, Black, Frzr Section		Appelez-nous	-
14	5303272396		Plug-button, Black, Handle/dr Stop		Appelez-nous	-
14	215352218		Plug-button, Black, Handle Mtg, Refr Door Front		Appelez-nous	-
14	218074003		Plug-button, Black, Refr Door Front, Lower				$ 1.78
15	5303918030		Panel-refr Door,black ,w/insulation		Appelez-nous	-
18	218668003		Handle-door, Black				$ 69.46
21	218252201		Screw,8 Truss Hd ,10-32ca X .5   (Replaces: 218252200)			Immediately	$ 14.18
22	218519300		Bearing-hinge				$ 14.60
37	215867060		Trim-handle, 4.97``, Black, W/band & Lock		Appelez-nous	-
37	215867072		Trim-handle,29.84`` ,black ,w/band & Locks		Appelez-nous	-
49	215441502		Bin-door,gallon   (Replaces: 215441513)				$ 176.87
58	218749600		Screw,10 Pan Hd ,8-18 X .5				$ 5.15
61	5308017047		Nut, Self-threading, 1/8		Appelez-nous	-
62	5303275673		Divider-dairy Compt		Appelez-nous	-
*86040	215518000		Magnet-nameplate		Appelez-nous	-
*86041	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
37A	215782300		Lock-handle Trim,snap-in				$ 34.49
37B	215940700		Lock-handle Trim, Stick-on		Appelez-nous	-
37C	218676001		Band-decorative,chrome				$ 36.17

    View Diagram in Separate Window       Print Part List
