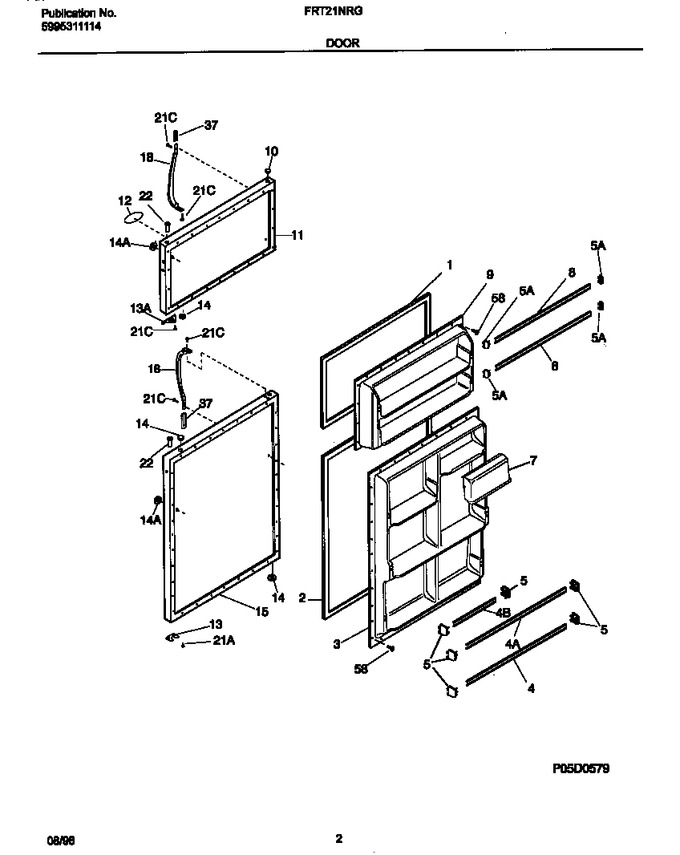

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608923		Gasket-frzr Door, Black, Magnetic		Appelez-nous	-
2	218730622		Gasket-refr Door, Black, Magnetic		Appelez-nous	-
3	215393201		Panel-inner Door, Refr		Appelez-nous	-
4	215516220		Rack-door, 23.09`` X 2.04``   (Replaces: 218763617)				$ 54.58
4	215516220		Rack-door, 9.24`` X 2.04``   (Replaces: 218763615)				$ 54.58
4	218763616		Rack-door,22.51`` X 2.04``		Appelez-nous	-
5	218758602		Support-door Rack, Rh/lh   (Replaces: 218758601)			Immediately	$ 23.39
7	5303308341		Door-dairy,12.96`` Wide				$ 97.02
8	215516220		Rack-door,23.47`` X 2.04`` ,(2)   (Replaces: 218763618)				$ 54.58
9	215530301		Panel-inner Door, Frzr		Appelez-nous	-
10	5303272397		Plug-button, Black, Hinge Brg Hole		Appelez-nous	-
11	5303917980		Panel-frzr Door, Black, W/insulation		Appelez-nous	-
12	218156532		Nameplate Assy, Black, With Magnet		Appelez-nous	-
13	218800300		Door Stop,plated		Appelez-nous	-
13	218249003		Door Stop, Black, Frzr Section		Appelez-nous	-
14	215352218		Plug-button,black ,handle Mtg ,		Appelez-nous	-
14	5303272396		Plug-button, Black, Handle/dr Stop		Appelez-nous	-
15	5303917979		Panel-refr Door,black ,w/insulation ,		Appelez-nous	-
18	218668003		Handle-door, Black				$ 69.46
21	218251900		Screw,8 Oval Head ,10-32ca X .625 ,				$ 10.55
21	218252201		Screw,8 Truss Hd ,10-32ca X .5   (Replaces: 218252200)			Immediately	$ 14.18
22	218519300		Bearing-hinge				$ 14.60
37	215867060		Trim-handle, 4.97``, Black, W/band & Lock		Appelez-nous	-
58	218749600		Screw,10 Pan Hd ,8-18 X .5				$ 5.15
*11640	215940700		Lock-handle Trim, Stick-on		Appelez-nous	-
*11641	218676001		Band-decorative,chrome				$ 36.17
*11642	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
5A	218809701		Support-door Rack, Lh		Appelez-nous	-
5B	218809801		Support-door Rack, Rh		Appelez-nous	-
