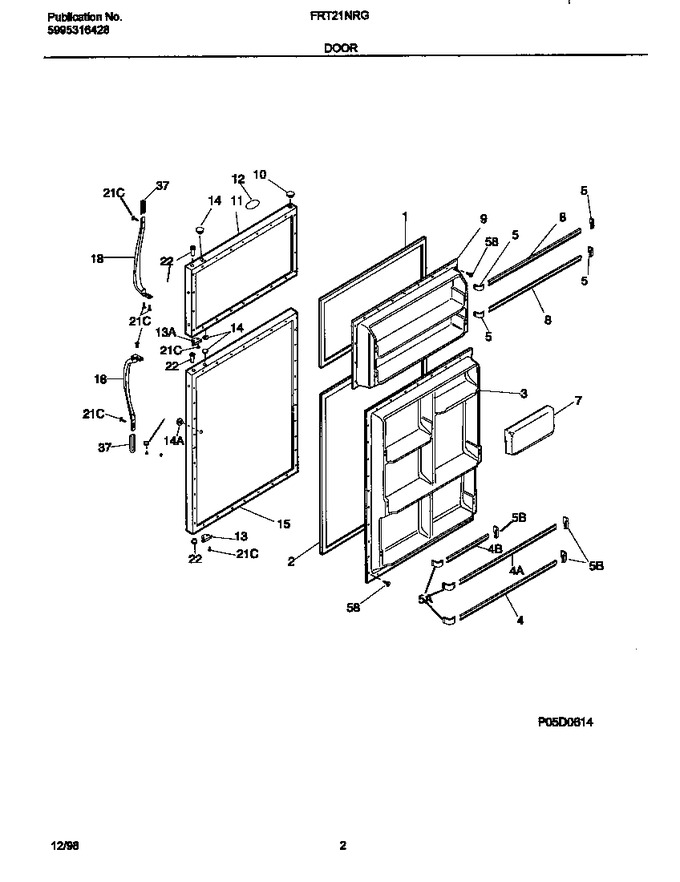

02 - Door
03 - Cabinet
04 - Shelves
05 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 215608923 | Gasket-frzr Door, Black, Magnetic |
|
- | |||||
| 2 | 218730622 | Gasket-refr Door, Black, Magnetic |
|
- | |||||
| 3 | 215393201 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 215516220 | Rack-door, 23.09`` X 2.04`` (Replaces: 218763617) |
|
$ 54.58 | |||||
| 4 | 218763616 | Rack-door,22.51`` X 2.04`` |
|
- | |||||
| 4 | 215516220 | Rack-door, 9.24`` X 2.04`` (Replaces: 218763615) |
|
$ 54.58 | |||||
| 5 | 218809701 | Support-door Rack, Lh |
|
- | |||||
| 5 | 218758602 | Support-door Rack, Rh/lh (Replaces: 218758601) |
|
Immediately | $ 23.39 | ||||
| 5 | 218809801 | Support-door Rack, Rh |
|
- | |||||
| 7 | 5303308341 | Door-dairy,12.96`` Wide |
|
$ 97.02 | |||||
| 8 | 215516220 | Rack-door,23.47`` X 2.04`` ,(2) (Replaces: 218763618) |
|
$ 54.58 | |||||
| 9 | 215530301 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5303272397 | Plug-button, Black, Hinge Brg Hole |
|
- | |||||
| 11 | 5303917980 | Panel-frzr Door, Black, W/insulation |
|
- | |||||
| 12 | 218156532 | Nameplate Assy, Black, With Magnet |
|
- | |||||
| 13 | 218800300 | Door Stop,plated |
|
- | |||||
| 13 | 218249003 | Door Stop, Black, Frzr Section |
|
- | |||||
| 14 | 215352218 | Plug-button, Black, Handle Mtg, Refr Door Front |
|
- | |||||
| 14 | 218915703 | Plug-button,black |
|
- | |||||
| 15 | 5303917979 | Panel-refr Door, Black, W/insulation, & Cross Brace |
|
- | |||||
| 18 | 218668003 | Handle-door, Black |
|
$ 69.46 | |||||
| 21 | 218252201 | Screw,8 Truss Hd ,10-32ca X .5 (Replaces: 218252200) |
|
Immediately | $ 14.18 | ||||
| 22 | 218519300 | Bearing-hinge |
|
$ 14.60 | |||||
| 37 | 215867060 | Trim-handle, 4.97``, Black, W/band & Lock |
|
- | |||||
| 58 | 218749600 | Screw,10 Pan Hd ,8-18 X .5 |
|
$ 5.15 | |||||
| *00520 | 215008609 | Label-nameplate,black |
|
- | |||||
| *00523 | 215518000 | Magnet-nameplate |
|
- | |||||
| *00524 | 218364003 | Frame-nameplate, Black |
|
- | |||||
| *00527 | 218676001 | Band-decorative,chrome |
|
$ 36.17 | |||||
| *00528 | 215940700 | Lock-handle Trim, Stick-on |
|
- | |||||
| *00529 | 218807701 | Lock-handle Trim,stick-on |
|
- | |||||
| *00530 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 |
