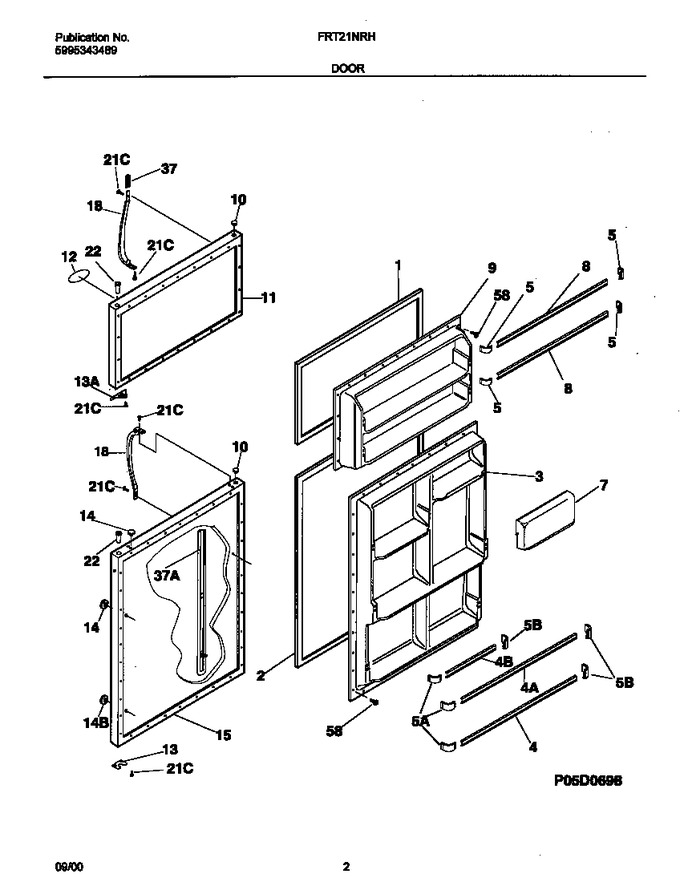

02 - Door


03 - Cabinet


04 - Shelves


05 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608923		Gasket-frzr Door, Black, Magnetic		Appelez-nous	-
2	218730622		Gasket-refr Door, Black, Magnetic		Appelez-nous	-
3	215393201		Panel-inner Door, Refr		Appelez-nous	-
4	215516220		Rack-door,23.09`` X 2.04``   (Replaces: 218763644)				$ 54.58
4	218763643		Rack-door,22.51`` X 2.04``		Appelez-nous	-
4	218763642		Rack-door,9.24`` X 2.04``				$ 63.89
5	218758602		Support-door Rack, Rh/lh   (Replaces: 218758601)			Immediately	$ 23.39
5	218809801		Support-door Rack, Rh		Appelez-nous	-
5	218809701		Support-door Rack, Lh		Appelez-nous	-
7	5303304569		Door-dairy,12.96`` Wide ,clear ,no Graphics		Appelez-nous	-
8	218763645		Rack-door,23.47`` X 2.04`` ,(2)		Appelez-nous	-
9	215530301		Panel-inner Door, Frzr		Appelez-nous	-
10	5303272397		Plug-button, Black, Hinge Brg Hole		Appelez-nous	-
11	5303918031		Panel-frzr Door,black ,w/insulation		Appelez-nous	-
12	218917603		Label-nameplate,black		Appelez-nous	-
13	218800300		Door Stop,plated		Appelez-nous	-
13	218249003		Door Stop, Black, Frzr Section		Appelez-nous	-
14	218915703		Plug-button,black		Appelez-nous	-
14	218074003		Plug-button, Black, Refr Door Front, Lower				$ 1.78
15	5303918030		Panel-refr Door,black ,w/insulation		Appelez-nous	-
18	218668003		Handle-door, Black				$ 69.46
21	218252201		Screw,8 Truss Hd ,10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
22	218519300		Bearing-hinge				$ 14.60
37	218811626		Trim-handle,black ,lower				$ 18.84
37	218811623		Trim-handle,black ,upper				$ 20.84
58	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 15.60
*71480	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
