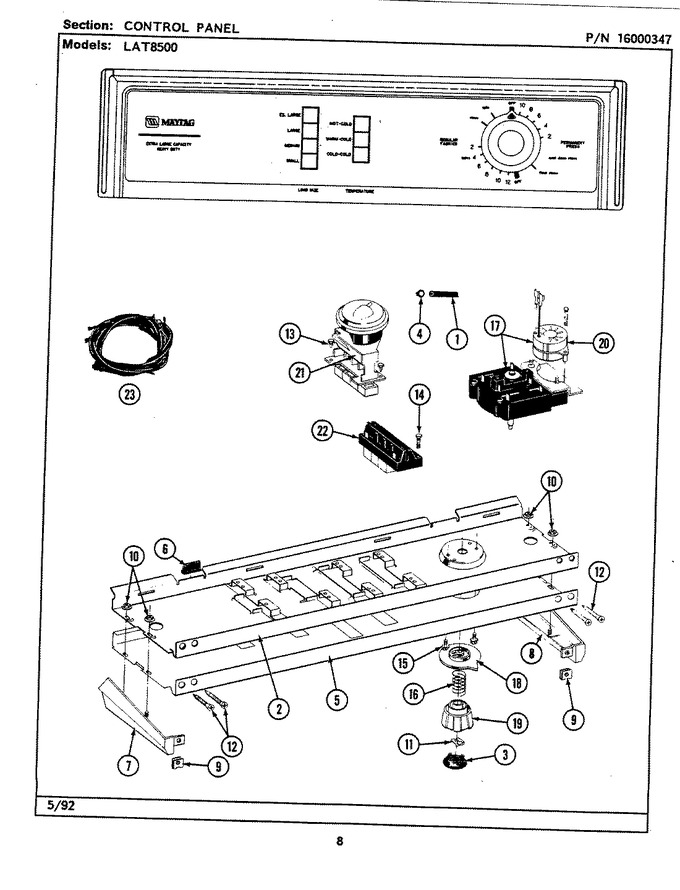

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP22001619		Air Dome And Tube   (Replaces: 212942)	AO			$ 75.73
2	214818		Back Up Plate	AO	Appelez-nous	-
3	215821		Cap, Knob	AO	Appelez-nous	-
4	WP596669		Clamp,water Level Swtch Tube   (Replaces: 410296)	AO		Immediately	$ 7.56
5	207604		Control Panel	AO	Appelez-nous	-
6	214897		Pad, Control Panel	AO	Appelez-nous	-
7	207215		End Cap Lh	AO	Appelez-nous	-
8	207216		End Cap Rh	AO	Appelez-nous	-
9	214894		Fastener, End Cap	AO	Appelez-nous	-
10	214872		Palnut, End Cap	AO	Appelez-nous	-
11	211605		Retainer, Timer Knob	AO	Appelez-nous	-
12	210932		Screw, No.8 X 9/16 Ctsk	AO	Appelez-nous	-
13	WPW10139210		Screw, No.8 X 5/16 Inch   (Replaces: 211168)	AO			$ 6.75
14	WP67006908		Screw-temp. Switch To Panel   (Replaces: 213117)	AO		Immediately	$ 7.16
15	WP3400014		Screw-timer To Control Pane   (Replaces: 213966)	AO			$ 6.98
16	211065		Spring, Timer Knob	AO			$ 5.70
17	207379		Timer	AO			$ 195.31
18	215827		Timer Dial Skirt	AO	Appelez-nous	-
19	215828		Knob, Timer (blk)	AO			$ 11.97
20	205033		Timer Motor 120-60	AO	Appelez-nous	-
21	207361		4 Level Pressure Switch	AO	Appelez-nous	-
22	207368		Temp Control Switch - 3 Button	AO	Appelez-nous	-
23	207383		Wire Harness	AO	Appelez-nous	-
