SELECT A DIAGRAM

01 - Cover

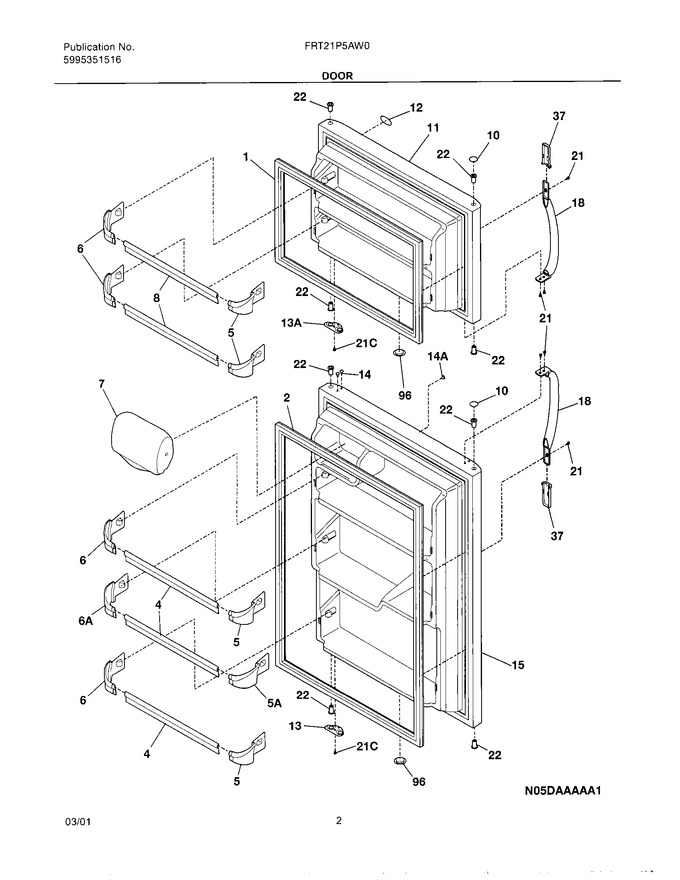

03 - Door


05 - Cabinet


07 - Shelves


09 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	241872505		Gasket-frzr Door,white ,magnetic   (Replaces: 240390702)				$ 179.22
2	242193213		Gasket-refr Door,white ,magnetic   (Replaces: 240390701)			Immediately	$ 190.22
4	240331401		Rack-door,20.27`` X 1.72``			Immediately	$ 47.78
5	240311502		Support-door Rack,2 Liter ,rh			Immediately	$ 11.34
5	240331502		Support-door Rack,gallon ,rh			Immediately	$ 13.46
6	240311501		Support-door Rack,2 Liter ,lh			Immediately	$ 11.34
6	240331501		Support-door Rack,gallon ,lh			Immediately	$ 13.46
7	240337712		Door-dairy,w/o Graphics ,clear   (Replaces: 240337703)			Immediately	$ 36.41
8	240331401		Rack-door,17.99``   (Replaces: 240331402)			Immediately	$ 47.78
10	240381301		Plug-button,hinge Brg Hole ,white ,(2)			Immediately	$ 18.95
11	240450301		Panel-frzr Door,white		Appelez-nous	-
12	241808601		Label-nameplate,white   (Replaces: 240415201)				$ 12.69
13	240312421		Door Stop,white ,ref   (Replaces: 240312403)				$ 15.17
13	240312414		Door Stop,white ,frzr   (Replaces: 240312404)				$ 19.13
14	240494001		Plug-button, White   (Replaces: 218915701)			Immediately	$ 18.20
14	240494001		Plug-button,screw Type ,white   (Replaces: 240428301)			Immediately	$ 18.20
15	240450401		Panel-refr Door,white ,complete Assy				$ 395.63
18	218668001		Handle-door, White			Immediately	$ 66.16
21	218252201		Screw,8 Truss Hd ,10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
21	5304515677		Screw,truss Hd Quad ,10-16 X .500   (Replaces: 240383401)			Immediately	$ 19.23
22	5304507146		Bearing-hinge,(8)   (Replaces: 240311201)			Immediately	$ 7.59
37	215870629		Trim-handle,2.47`` ,white ,w/satin Al Band				$ 55.99
96	240345501		Plug-foam Hole,white		Appelez-nous	-
NI	218676004		Band-decorative,satin Aluminum ,handle Trim				$ 57.60

    View Diagram in Separate Window       Print Part List
