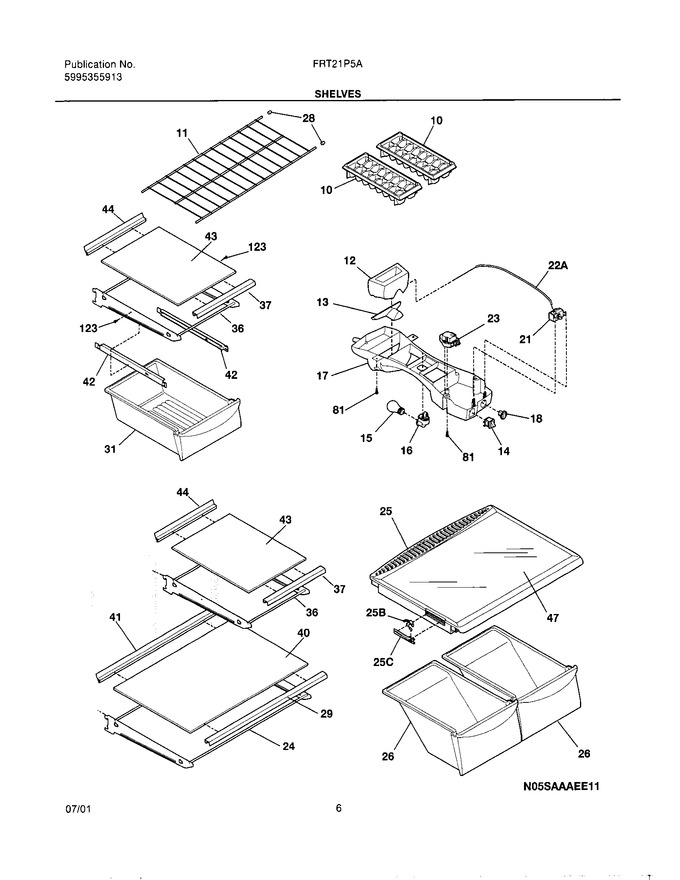

07 - Shelves


09 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	215667501		Tray-ice,plastic (optiional Accessory)			Immediately	$ 6.07
11	240358003		Shelf-freezer		Appelez-nous	-
12	240545901		Diffuser-air,top   (Replaces: 240380202)				$ 70.16
13	240362601		Diffuser-air,bottom			Immediately	$ 41.81
15	316538904		Light Bulb/lamp,a-15 ,40 W ,120 V ,miniature   (Replaces: 240436701)			Immediately	$ 20.48
16	241559801		Socket-light/lamp   (Replaces: 241500701)				$ 72.68
17	240368105		Box-control   (Replaces: 240368101)			Immediately	$ 130.44
18	240360801		Knob-control				$ 43.95
24	240373105		Frame-shelf,cantilever ,full Width				$ 143.98
25	240364717		Cover-crisper Pan				$ 184.43
26	240343803		Pan-crisper,(2)			Immediately	$ 171.91
28	3201150		End Cap-shelf,protector ,frzr Shelf				$ 4.57
29	240357701		Trim-shelf,24.48`` ,front				$ 70.82
31	240530811		Pan-meat   (Replaces: 240371403)			Immediately	$ 135.77
36	240373106		Frame-half Shelf,cantilever ,(2)				$ 105.63
37	240357702		Trim-shelf,11.95`` ,front				$ 63.80
40	240443323		Glass-shelf,24.45`` X 17.60`` ,full Shelf		Appelez-nous	-
41	240357801		Trim-shelf,24.48`` ,rear				$ 56.12
42	240530601		Hanger-meat Pan,lh   (Replaces: 240460401)			Immediately	$ 65.98
42	240530701		Hanger-meat Pan,rh   (Replaces: 240460501)			Immediately	$ 65.98
43	240443318		Glass-shelf,11.92`` X 17.60`` ,half Shelf				$ 73.38
44	240357802		Trim-shelf,11.95`` ,rear				$ 50.76
47	240350609		Insert-pan Cover,glass   (Replaces: 240350654)			Immediately	$ 162.30
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
123	215005101		Screw-roller/hanger`8-10 X 0.438   (Replaces: 215005100)				$ 14.89
22A	5303916855		Tube,sensor Sleeve ,plastic ,clear				$ 60.96
25B	5304492617		Control-humidity   (Replaces: 240361202)			Immediately	$ 8.69
25C	5304492617		Damper-humidity Control   (Replaces: 240361301)			Immediately	$ 8.69
F14	240505801		Switch-light/lamp   (Replaces: 240413601)				$ 66.63
F21	241537103		Control-temperature   (Replaces: 5304421256)			Immediately	$ 72.31
F23	215846602		Timer-defrost,60 Hz ,120 V ,10 Hour/30 Min   (Replaces: 215846606)			Immediately	$ 28.20
NI	3205266		Edge Protector, Wiring Harness				$ 80.09
NI	240392601		Seal-diffuser				$ 6.57
NI	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
NI	5303299664		Spacer-shelf				$ 24.10
NI	240388701		Wiring Harness,control Box			Immediately	$ 80.09
