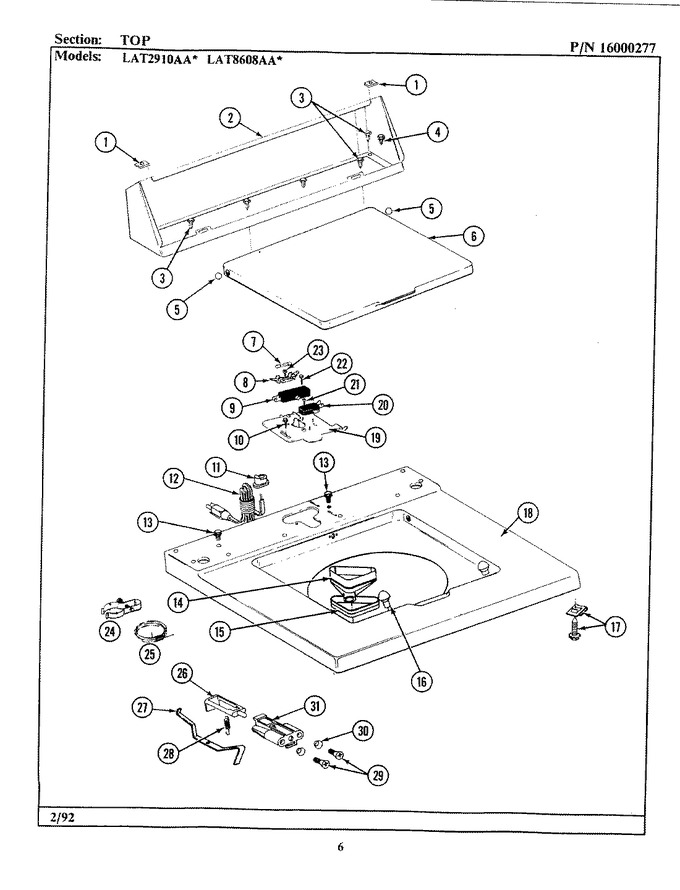

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215075		Fastener,cntrl Pnl To Console	A0			$ 4.83
2	205635L		Console (alm)	A0	Appelez-nous	-
3	WP90767		Screw   (Replaces: 211294)	A0		Immediately	$ 7.04
4	WP90767		Screw   (Replaces: Y313559)	A0		Immediately	$ 7.04
5	WP211726		Hinge, Ball   (Replaces: 211726)	A0		Immediately	$ 7.18
6	212073L		Lid-almond	A0	Appelez-nous	-
7	207168		Fuse	A0	Appelez-nous	-
8	207167		Block, Fuse	A0			$ 28.66
9	W10820036		Switch, Lid (w/o Tub Light)   (Replaces: 205415)	A0		Immediately	$ 27.45
10	W11233072		Screw   (Replaces: 207159)	A0		Immediately	$ 12.62
11	211881		Grommet, Cord	A0	Appelez-nous	-
12	204590		Power Cord	A0			$ 61.20
12	WP489128		Screw, Ground Wire To Base--na   (Replaces: 210186)	A0			$ 9.79
13	WP489128		Screw, Ground Wire To Base--na   (Replaces: 210186)	A0			$ 9.79
15	214436		Gasket	A0	Appelez-nous	-
16	WP212716		Bumper, Lid   (Replaces: 212716)	A0		Immediately	$ 7.88
17	204445		Screw & Fastener Asy.	A0	Appelez-nous	-
18	207172L		Top Cover Assy Alm----na	A0	Appelez-nous	-
19	22001678		Bracket,switch & Fuse   (Replaces: Y215699)	A0			$ 28.61
20	WP207166		Switch, Check   (Replaces: 207166)	A0		Immediately	$ 51.86
21	22001352		Screw, Check Switch	A0	Appelez-nous	-
22	213501		Screw, No.6-20 X 1-1/8 Inch	A0			$ 12.03
23	Y311711		Screw	A0	Appelez-nous	-
24	301548		Clamp, Ground (w/screw)	A0	Appelez-nous	-
25	311155		Ground Wire	A0			$ 8.77
26	215700		Lid Switch Plunger	A0	Appelez-nous	-
27	215704		Unbalance Lever	A0	Appelez-nous	-
28	WP213720		Spring   (Replaces: 213720)	A0			$ 7.63
29	W10756178		Screw   (Replaces: 910182)	A0			$ 5.39
30	211500		Washer,bracke To Top Cover	A0	Appelez-nous	-
31	214279		Bracket F/lid Switch Plunge	A0	Appelez-nous	-
