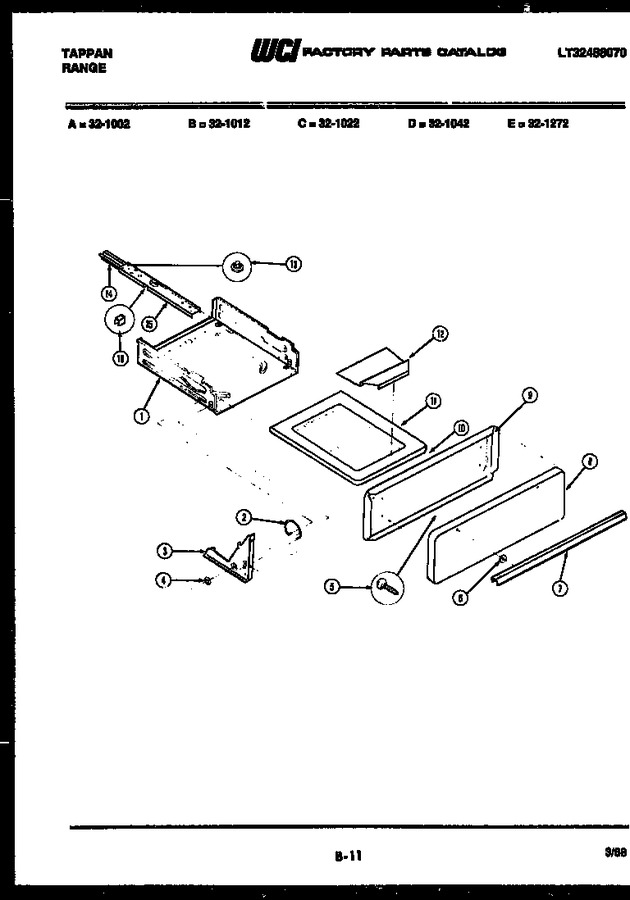

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
9	381T077F04-89		Liner-broilr Door-char Gray Lot 1-5		Appelez-nous	-
10	550T041P01		Pin, Hinge (2)		Appelez-nous	-
11	539T005F01-89		Pan-broilr-char Gray Lot 1-5		Appelez-nous	-
12	3131487		Shield-broilr Sump Chrome		Appelez-nous	-
13	106T027P02		Button-glide .426 Dia. (4)		Appelez-nous	-
14	136T281F02		Chanl-glide Lwr Lot 1-11		Appelez-nous	-
15	136T282F02		Chanl-glide Upper Lot 1-11		Appelez-nous	-
16	106T028P01		Button-guide (3)		Appelez-nous	-
*33523	636T128P01		Screw-broilr Assy 8a X 1/2`` Ph Tr Hd (4) Lot 3, 4		Appelez-nous	-
*33526	636T139P01		Screw-broilr Assy 8-18 X 1/2`` Ph Wr Hd Spc (6) Lot 3-14		Appelez-nous	-
8A	328T015P15		Insulation (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
