SELECT A DIAGRAM

01 - Cover

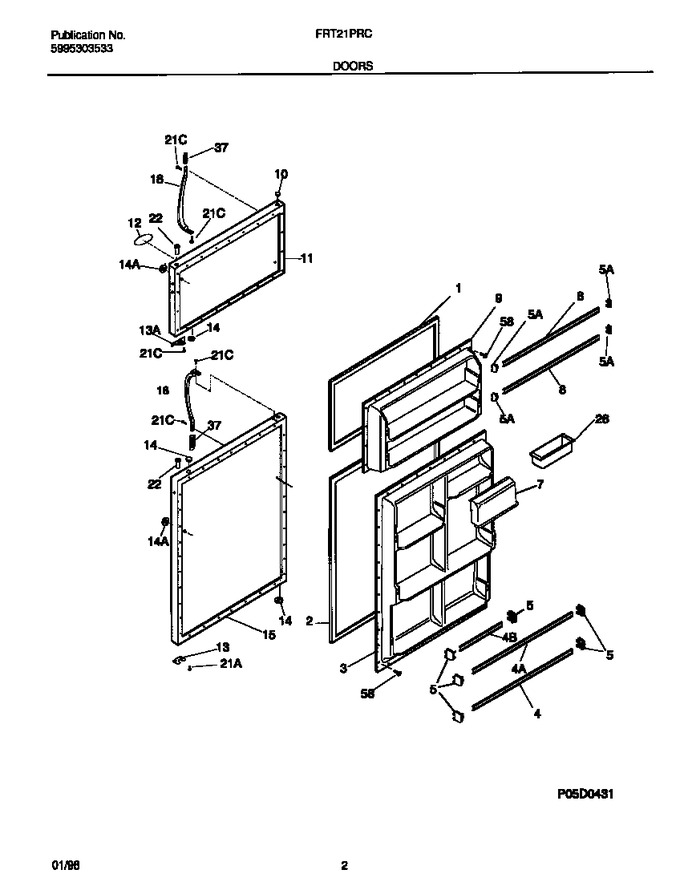

02 - Doors


03 - Cabinet


04 - Shelves/controls


05 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	21560892		Gasket-frzr Door,black ,magnetic		Appelez-nous	-
2	218730622		Gasket-refr Door, Black, Magnetic		Appelez-nous	-
3	215393201		Panel-inner Door, Refr		Appelez-nous	-
4	218763616		Rack-door,22.51`` X 2.04``		Appelez-nous	-
4	215516220		Rack-door, 9.24`` X 2.04``   (Replaces: 218763615)				$ 54.58
4	215516220		Rack-door, 23.09`` X 2.04``   (Replaces: 218763617)				$ 54.58
5	218758602		Support-door Rack, Rh/lh   (Replaces: 218758601)			Immediately	$ 23.39
7	5303310094		Door-dairy		Appelez-nous	-
8	215516220		Rack-door,23.47`` X 2.04`` ,(2)   (Replaces: 218763618)				$ 54.58
9	215530301		Panel-inner Door, Frzr		Appelez-nous	-
10	5303272397		Plug-button, Black, Hinge Brg Hole		Appelez-nous	-
11	5303917980		Panel-frzr Door, Black, W/insulation		Appelez-nous	-
12	218156532		Nameplate Assy, Black, With Magnet		Appelez-nous	-
13	21824900		Door Stop,black ,frzr Section		Appelez-nous	-
13	5303212491		Door Stop, Refr Section		Appelez-nous	-
14	5303272396		Plug-button, Black, Handle/dr Stop		Appelez-nous	-
14	215352218		Plug-button, Black, Handle Mtg, Refr Door Front		Appelez-nous	-
15	5303917979		Panel-refr Door, Black, W/insulation, & Cross Brace		Appelez-nous	-
18	21866800		Handle-door,black		Appelez-nous	-
21	218251900		Screw,8 Oval Head ,10-32ca X .625 ,cross Recessed				$ 10.55
21	218252201		Screw,8 Truss Hd ,10-32ca X .5   (Replaces: 218252200)			Immediately	$ 14.18
22	218519300		Bearing-hinge				$ 14.60
26	3204522		Container-egg				$ 98.33
37	215867060		Trim-handle, 4.97``, Black, W/band & Lock		Appelez-nous	-
58	218749600		Screw,10 Pan Hd ,8-18 X .5				$ 5.15
*30920	215518000		Magnet-nameplate		Appelez-nous	-
*30921	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
37A	215940700		Lock-handle Trim, Stick-on		Appelez-nous	-
37B	218676001		Band-decorative,chrome				$ 36.17
5A	218809801		Support-door Rack, Rh		Appelez-nous	-
5B	218809701		Support-door Rack, Lh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
