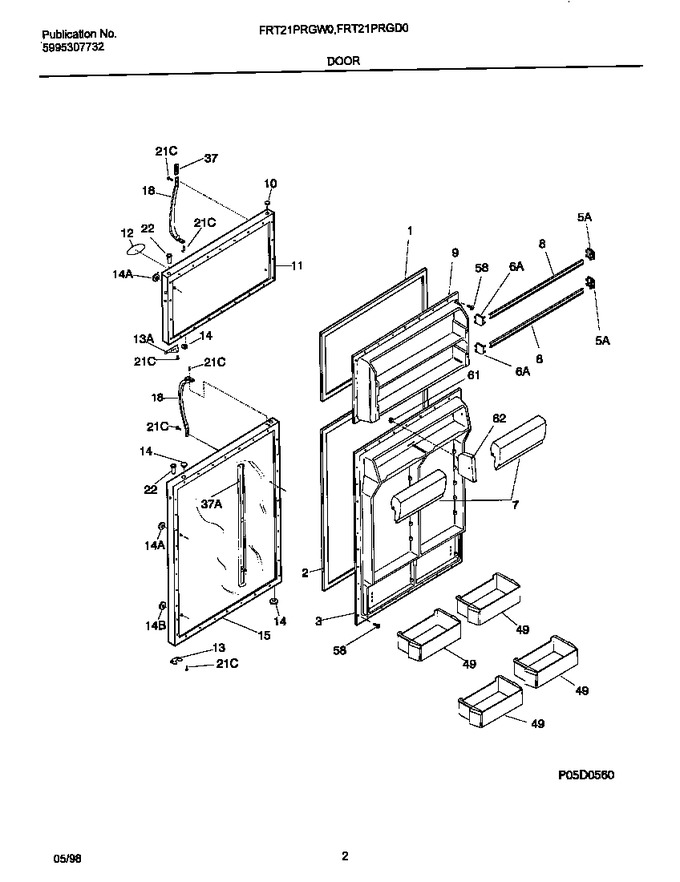

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608903		Gasket-frzr Door, Almond, Magnetic		Appelez-nous	-
2	218730610		Gasket-refr Door, Almond, Magnetic				$ 151.88
3	5303275674		Panel-inner Door, Refr		Appelez-nous	-
5	5303323480		Support-door Rack, White, Rh				$ 14.18
6	5303323481		Support-door Rack, White, Lh			Immediately	$ 14.18
7	5303308336		Door-dairy, 12.25`` Wide				$ 163.64
8	215474045		Rack-door, 26.28`` X 1.10``		Appelez-nous	-
9	5303206631		Panel-inner Door, Frzr		Appelez-nous	-
10	5303001308		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	5303917827		Panel-frzr Door, Almond, W/insulation		Appelez-nous	-
12	218156513		Nameplate Assy, Almond, With Magnet		Appelez-nous	-
13	218800300		Door Stop,plated		Appelez-nous	-
13	218249002		Door Stop, Almond, Frzr Section				$ 47.88
14	215352211		Plug-button, Almond, Handle Mtg, Refr Door Front		Appelez-nous	-
14	5308000181		Plug-button, Almond		Appelez-nous	-
15	5303917829		Panel-refr Door, Almond, W/insul & Brace		Appelez-nous	-
18	218668002		Handle-door, Almond		Appelez-nous	-
21	218252201		Screw,8 Truss Hd ,10-32ca X .5   (Replaces: 218252200)			Immediately	$ 14.18
22	218519300		Bearing-hinge				$ 14.60
37	215867071		Trim-handle, 29.84``, Almond, W/band & Locks		Appelez-nous	-
37	215867059		Trim-handle, 4.97``, Almond, W/band & Lock		Appelez-nous	-
49	215441502		Bin-door,gallon   (Replaces: 215441513)				$ 176.87
58	218749600		Screw,10 Pan Hd ,8-18 X .5				$ 5.15
61	5308017047		Nut, Self-threading, 1/8		Appelez-nous	-
62	5303275673		Divider-dairy Compt		Appelez-nous	-
*33120	215518000		Magnet-nameplate		Appelez-nous	-
*33121	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
14A	218074001		Plug-button, White, Refr Door Front, Lower				$ 13.76
14B	218074002		Plug-button, Almond, Refr Door Front, Lower		Appelez-nous	-
37A	215782300		Lock-handle Trim,snap-in				$ 34.49
37B	215940700		Lock-handle Trim, Stick-on		Appelez-nous	-
37C	218676001		Band-decorative,chrome				$ 36.17
