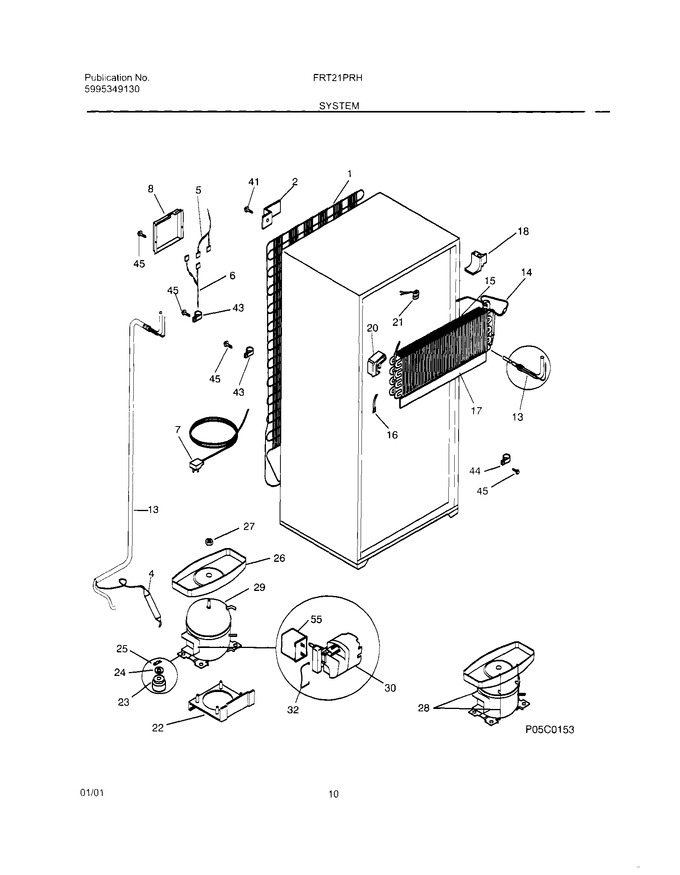

09 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218657100		Condenser		Appelez-nous	-
2	5308000296		Bracket,condenser Mtg ,(4)				$ 30.20
4	5303305677		Drier-filter,r134a System   (Replaces: 218944001)			Immediately	$ 31.67
5	218878600		Wiring Harness,control/divider		Appelez-nous	-
6	215257001		Wiring Harness,compressor		Appelez-nous	-
7	5316254901		Cord-electric Power		Appelez-nous	-
8	5303001197		Cover-wiring		Appelez-nous	-
13	215076408		Heat Exchanger,suction Line		Appelez-nous	-
14	5304419040		Heater-defrost				$ 72.82
15	218955701		Evaporator,bundy		Appelez-nous	-
16	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 59.82
17	218973901		Insulator-evap,plastic		Appelez-nous	-
18	218998101		Block-evap Coil,styrofoam Insul ,rh		Appelez-nous	-
20	218821201		Insulation Block,lh		Appelez-nous	-
21	297216600		Thermostat-defrost   (Replaces: 218969902)			Immediately	$ 27.52
22	5308013663		Plate-compr Mtg		Appelez-nous	-
23	218254500		Grommet-compr Mtg, (4)		Appelez-nous	-
24	5308003633		Washer-compr Mtg				$ 35.67
25	5308003596		Clip - Compressor Mtg				$ 6.62
26	215372500		Pan, Defrost Drain		Appelez-nous	-
27	5303001348		Nut,lock `1/4-20 ,drain Pan Mtg				$ 2.73
28	5303916001		Pan Retainer Kit, Service				$ 78.75
29	218973601		Compressor,w/o Electricals		Appelez-nous	-
30	218721108		Starter-ptc				$ 159.44
32	218973501		Clamp,elec Cont Mtg ,compressor				$ 21.97
41	5308000039		Screw		Appelez-nous	-
43	5303001199		Clamp				$ 65.92
44	218974101		Clamp,nylon ,1.00 Od Tube		Appelez-nous	-
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
55	5304464438		Capacitor-run,220 Vac ,15 Microfarad   (Replaces: 218909901)			Immediately	$ 35.38
NI	240396801		Clamp, Nylon   (Replaces: 5308000133)				$ 19.13
NI	5304406040		Spacer-tube,5/8 Od X 12`` Lg		Appelez-nous	-
NI	5304406039		Spacer-tube,5/8 Od X 3`` Lg		Appelez-nous	-
NI	218754500		Screw,hex Hd Ser Wshr ,8-18 X 0.375		Appelez-nous	-
NI	5300141713		Screw,hex Wshr Hd ,8-32 X 0.625 ,spec		Appelez-nous	-
NI	5300189383		Hot Tube Repair Kit-service				$ 613.15
NI	218905701		Cover-sound Insul,pressboard/foam,mach Compt				$ 64.93
NI	5308017610		Sound Tape,defrost Pan		Appelez-nous	-
NI	5308009617		Washer,ext Tooth Lock ,no.10 ,grounding		Appelez-nous	-
NI	5304406722		Spacer-tube,5/8 Od X 2`` Lg		Appelez-nous	-
NI	5304406721		Spacer-cond Tube,round ,5/8 Od X .81``lg		Appelez-nous	-
