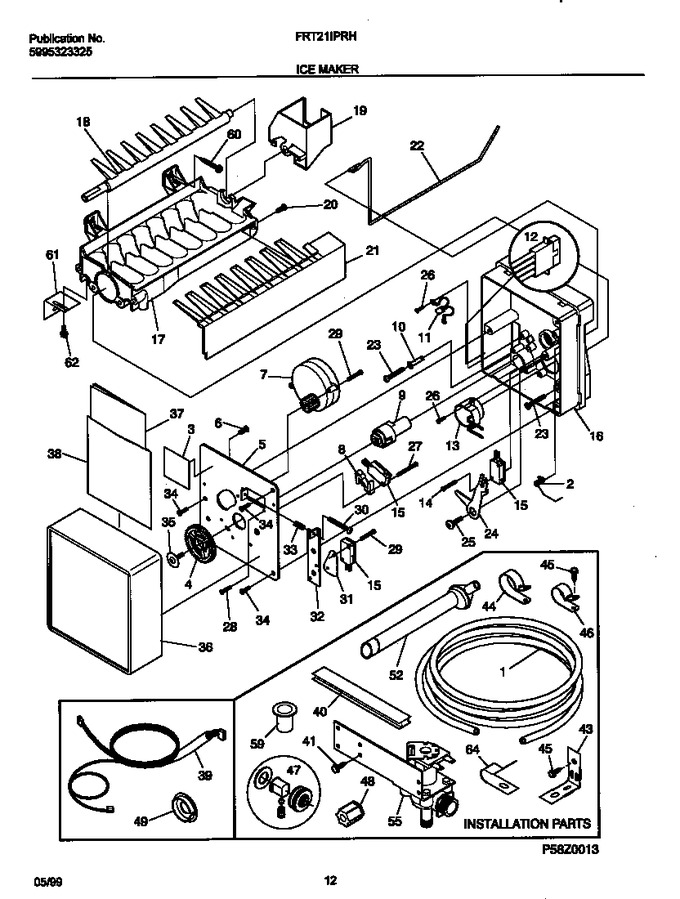

01 - Cover
02 - Doors
03 - Cabinet
04 - Shelves
05 - System
06 - Ice Maker
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303015131 | Tube-water Inlet,71`` ,valve-to-im |
|
- | |||||
| 2 | 3206348 | Spring, Shut-off Arm |
|
- | |||||
| 3 | 3206299 | Plate-i.d. |
|
- | |||||
| 4 | 3206301 | Gear |
|
- | |||||
| 5 | 3206303 | Plate-mounting |
|
$ 47.41 | |||||
| 6 | 3206305 | Screw-ground Wire, 8-32 X 1/4 |
|
- | |||||
| 7 | 5303918277 | Motor-ice Maker (Replaces: 3206306) |
|
Immediately | $ 96.11 | ||||
| 8 | 3206312 | Spacer-holding Sw |
|
- | |||||
| 9 | 3206313 | Cam |
|
- | |||||
| 10 | 3206315 | Clamp |
|
$ 35.33 | |||||
| 11 | 3206319 | Thermal Cutoff,ice Maker ,complete Assy |
|
$ 48.72 | |||||
| 12 | 3206349 | Harness-wiring, Im Internal, With Plug |
|
$ 130.20 | |||||
| 12 | 3206321 | Connector Plug, Wiring Harness |
|
$ 29.82 | |||||
| 13 | 3206322 | Thermostat Assy,ice Maker |
|
$ 130.41 | |||||
| 14 | 3206323 | Screw - Switch Mtg, 4-24 X 3/4, Sw To Support, (2) |
|
- | |||||
| 15 | 5304456667 | Switch,(3) (Replaces: 3206324) |
|
$ 92.53 | |||||
| 16 | 3206326 | Support |
|
- | |||||
| 17 | 241798231 | Mold-ice Maker, Radius Cube, With Heater (Replaces: 5303320545) |
|
Immediately | $ 200.97 | ||||
| 18 | 3206328 | Ejector |
|
- | |||||
| 19 | 3206330 | Bearing & Inlet |
|
- | |||||
| 20 | 3206331 | Screw,8-18 X 0.375 ,(2) |
|
- | |||||
| 21 | 3206332 | Ice Stripper |
|
- | |||||
| 22 | 3206333 | Arm, Shut-off |
|
- | |||||
| 23 | 3206334 | Screw - Sup / Mold Body, 8-18 X 1, (4) |
|
- | |||||
| 24 | 5304456675 | Lever-arm (Replaces: 3206335) |
|
$ 66.63 | |||||
| 25 | 3206336 | Screw-arm Levr/sprt, 8-18 X 9/16 |
|
- | |||||
| 26 | 3206337 | Screw-thermo/sprt, 4-24 X 3/8, (4) |
|
- | |||||
| 27 | 3206338 | Screw-sw&spcr/plate,4-40 X 1 |
|
- | |||||
| 28 | 3206339 | Screw-timing Stop, 4-40 X 3/8 |
|
- | |||||
| 29 | 3206340 | Screw-mtr&sw/plate,4-40 X 3/4 |
|
- | |||||
| 30 | 3206341 | Screw-timing, 8-32 X 1 |
|
- | |||||
| 31 | 3206342 | Insulator |
|
- | |||||
| 32 | 3206343 | Plate-valve Switch |
|
- | |||||
| 33 | 3206344 | Spring |
|
- | |||||
| 34 | 3206345 | Screw-mtg Plate/sprt,8-18 X 7/16 |
|
- | |||||
| 35 | 3206346 | Screw - Gear / Cam, 6-20 X 0.437 |
|
- | |||||
| 36 | 3206347 | Cover-ice Maker,complete |
|
$ 29.24 | |||||
| 37 | 5303320544 | Data Sheet, Ice Maker |
|
- | |||||
| 38 | 5303207445 | Envelope-data Sheet |
|
- | |||||
| 39 | 3206358 | Harness-wiring, Ice Maker |
|
- | |||||
| 40 | 5305877995 | Sealing Strip |
|
Immediately | $ 55.29 | ||||
| 41 | 5308000039 | Screw |
|
- | |||||
| 43 | 5303001199 | Clamp |
|
$ 65.92 | |||||
| 44 | 240396801 | Clamp, Nylon (Replaces: 5308000133) |
|
$ 19.13 | |||||
| 45 | 5304455651 | Screw (Replaces: 5303001343) |
|
$ 14.41 | |||||
| 46 | 5303001193 | Clamp-inlet Tube, Metal |
|
$ 16.30 | |||||
| 47 | 3206360 | Adapter-water Sply |
|
$ 94.66 | |||||
| 48 | 5308000200 | Nut, 7/16 X 20, Nylon |
|
- | |||||
| 49 | 5303001147 | Plug-harness Hole, (2) |
|
$ 22.30 | |||||
| 52 | 215456100 | Tube, Water Inlet |
|
- | |||||
| 55 | 218720300 | Valve-water, 120 V 60 Hz, Flow Restricter |
|
- | |||||
| 59 | 5303001191 | Sleeve-tube Insert |
|
$ 6.72 | |||||
| 60 | 218362501 | Screw,hex Washer Head ,8-18ab X 1.250 (Replaces: 218362500) |
|
$ 12.05 | |||||
| 61 | 218721500 | Bracket-leveling, Ice Maker |
|
$ 73.00 | |||||
| 62 | 215230500 | Screw-bracket Mtg, Pan Head, 8-32t X 0.375 |
|
- | |||||
| 64 | 5304455846 | Clamp-copper Tube, Steel (Replaces: 5303001549) |
|
$ 10.63 | |||||
| *39908 | 5314368805 | Tube-valve To Im, Plastic, Cut To Length |
|
- | |||||
| *39909 | 5303015102 | Cap-water Valve |
|
- | |||||
| *39910 | 08000185 | Tape, Foam, Adhesive |
|
- |
