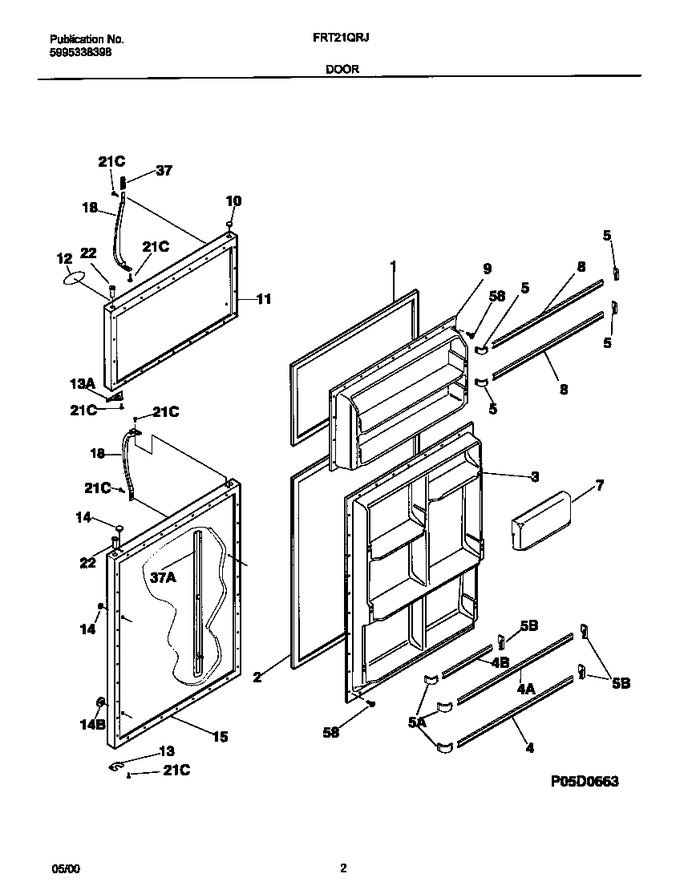

02 - Door


03 - Cabinet


04 - Shelves


05 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608913		Gasket-frzr Door, White, Magnetic		Appelez-nous	-
2	218730609		Gasket-refr Door, White, Magnetic				$ 207.27
3	215393201		Panel-inner Door, Refr		Appelez-nous	-
4	215516220		Rack-door,23.09`` X 2.04``   (Replaces: 218763644)				$ 54.58
4	218763643		Rack-door,22.51`` X 2.04``		Appelez-nous	-
4	218763642		Rack-door,9.24`` X 2.04``				$ 63.89
5	218758602		Support-door Rack, Rh/lh   (Replaces: 218758601)			Immediately	$ 23.39
5	218809801		Support-door Rack, Rh		Appelez-nous	-
5	218809701		Support-door Rack, Lh		Appelez-nous	-
7	5303304569		Door-dairy,12.96`` Wide ,clear ,no Graphics		Appelez-nous	-
8	218763645		Rack-door,23.47`` X 2.04`` ,(2)		Appelez-nous	-
9	215530301		Panel-inner Door, Frzr		Appelez-nous	-
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
11	5303918175		Panel-ext Frzr Door,white ,w/foam Insulatn		Appelez-nous	-
12	218917601		Label-nameplate,white				$ 2.98
13	218249001		Door Stop, White, Frzr Section				$ 82.06
13	218800300		Door Stop,plated		Appelez-nous	-
14	218074001		Plug-button,white ,refr Door Front ,1 ,lower				$ 13.76
14	240494001		Plug-button, White   (Replaces: 218915701)			Immediately	$ 18.20
15	5303918177		Panel-ext Refr Door,white ,w/foam Insulatn		Appelez-nous	-
18	218668001		Handle-door, White			Immediately	$ 66.16
21	218252201		Screw,8 Truss Hd ,10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
22	218519300		Bearing-hinge				$ 14.60
37	218811621		Trim-handle,white ,upper ,w/chrome Band		Appelez-nous	-
37	218811613		Trim-handle,white ,lower ,w/chrome Band				$ 49.76
58	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 15.60
*91920	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
37A	215782300		Lock-handle Trim,snap-in				$ 34.49
37B	218676004		Band-decorative,satin Aluminum ,handle Trim				$ 57.60
37C	218906701		Lock-handle Trim,stick-on				$ 67.86
