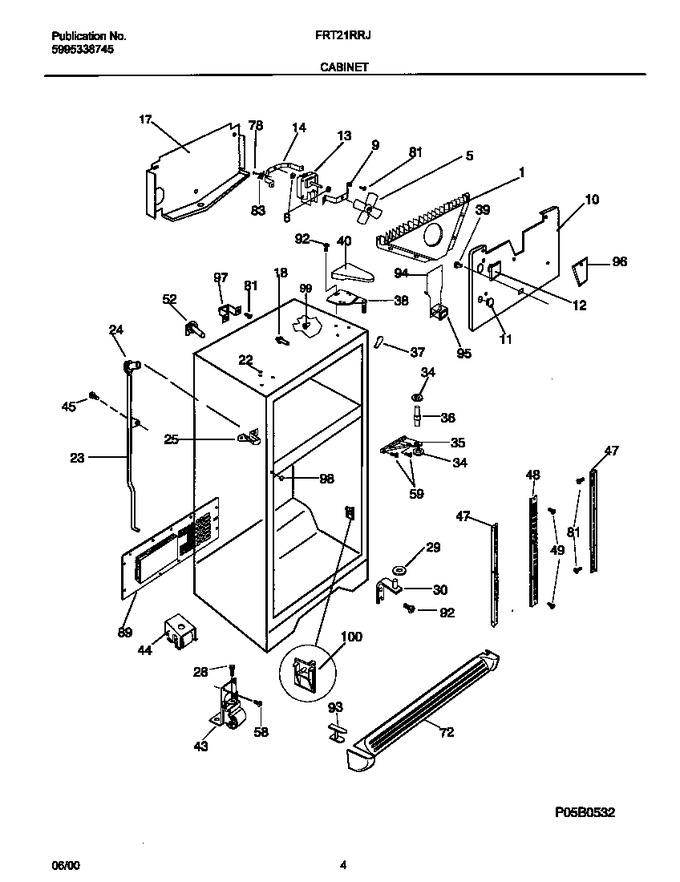

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 215937600 | Shroud-evap Fan Mtg |
|
$ 65.94 | |||||
| 5 | 5303292398 | Fan Blade |
|
$ 50.35 | |||||
| 8 | 5300157666 | Bushing - Motor Mtg, (2) |
|
- | |||||
| 9 | 5303292396 | Bracket-motor Mtg,front |
|
$ 72.30 | |||||
| 10 | 5303294238 | Cover-evap Coil |
|
- | |||||
| 11 | 5303208309 | Plug-hole, Factory Test |
|
$ 45.50 | |||||
| 12 | 5303292393 | Plug-decorative,icemaker Holes |
|
- | |||||
| 13 | 5300158289 | Motor-evap Fan (Replaces: 218661700) |
|
Immediately | $ 149.94 | ||||
| 14 | 240438003 | Bracket-motor Mtg,rear (Replaces: 5303292397) |
|
$ 17.44 | |||||
| 17 | 5304415955 | Trough-drain |
|
- | |||||
| 18 | 215245000 | Support - Evap Cover, (2) |
|
$ 25.20 | |||||
| 22 | 215774911 | Plug-button, Almond, Upr Hinge Holes |
|
- | |||||
| 23 | 215266301 | Tube Drain, W/seal Ring |
|
$ 72.14 | |||||
| 24 | 5303207353 | Seal Ring, Drain Tube |
|
$ 6.81 | |||||
| 25 | 5303292412 | Spout-drain Tube |
|
$ 13.81 | |||||
| 28 | 5303289062 | Bolt-roller Adj,hex Head,5/16-24 X 7/8 |
|
- | |||||
| 29 | 215314301 | Washer,.40 X .75 X .06 ,nylon |
|
$ 3.94 | |||||
| 30 | 5303289060 | Bracket-lower Hinge,rh/lh ,w/hinge Pin |
|
- | |||||
| 34 | 218737000 | Washer-ctr Hnge Pin |
|
$ 1.37 | |||||
| 35 | 218220102 | Bracket-ctr Hinge, Almond |
|
- | |||||
| 36 | 218971101 | Pin-center Hinge |
|
$ 42.84 | |||||
| 37 | 5303321082 | Trim-cabinet Corner, Almond |
|
- | |||||
| 38 | 218215251 | Bracket-upper Hinge,with Closer ,almond |
|
$ 92.09 | |||||
| 39 | 215848000 | Spacer-air Channel |
|
- | |||||
| 40 | 5303318774 | Cover-upper Hinge, Almond |
|
$ 46.83 | |||||
| 43 | 218615300 | Roller Assy, Front, (2) |
|
- | |||||
| 44 | 218738300 | Roller Assy, Rear, (2) |
|
$ 51.98 | |||||
| 45 | 5304455651 | Screw (Replaces: 5303001343) |
|
$ 14.41 | |||||
| 47 | 218233300 | Channel-shelf Mtg,side ,(2) |
|
$ 86.05 | |||||
| 48 | 5303292395 | Channel-shelf Mtg,center |
|
$ 157.34 | |||||
| 49 | 218493101 | Screw,hex Washer Head `8-18ab X 1-3/4 (Replaces: 218493100) |
|
$ 13.46 | |||||
| 52 | 215454600 | Tube-water,ice Mold Fill ,elbow |
|
$ 81.11 | |||||
| 58 | 5308017044 | Screw-roller Mtg,spcl Ind Hex Hd, 5/16-18(23) X 7/8 |
|
$ 6.34 | |||||
| 59 | 240442708 | Screw,pan Hd ,10-32 X 0.625 ,hinge/mullion,thread Formin (Replaces: 218188000) |
|
$ 8.34 | |||||
| 72 | 218359608 | Grille/kickplate, Almond |
|
- | |||||
| 78 | 5303274237 | Screw-bracket, Hex Washer Head, 8-32(ca) X 1/2 |
|
- | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 83 | 5308000107 | Bracket-connector |
|
$ 33.23 | |||||
| 89 | 5303288947 | Cover-machine Compt |
|
- | |||||
| 92 | 241710601 | Screw (Replaces: 5303001479) |
|
$ 13.46 | |||||
| 93 | 218362602 | Plug-grille, Almond |
|
- | |||||
| 94 | 5303319993 | Cover-air Duct |
|
- | |||||
| 95 | 218663101 | Gasket-air Duct Cvr |
|
- | |||||
| 96 | 215775901 | Cover-fan Access |
|
$ 22.85 | |||||
| 97 | 5303289299 | Bracket-im Plug |
|
- | |||||
| 98 | 215099711 | Plug-button,almond |
|
- | |||||
| 99 | 5303294246 | Grommet-shelf Mtg,1.25`` Long |
|
- | |||||
| 100 | 5303288973 | Support-pan Cover |
|
$ 24.41 | |||||
| *53521 | 215474201 | Washer,``slinger`` ,nylon ,evap Fan Shaft |
|
Immediately | $ 18.43 | ||||
| *53522 | 5303001361 | Pin-mounting, Push-in, Plastic |
|
- | |||||
| *53523 | 218979601 | Tapping Plate,lower Hinge |
|
- | |||||
| *53524 | 218979701 | Tapping Plate,lower Hinge |
|
- | |||||
| *53525 | 215058000 | Plug-wtr Inlet Tube |
|
$ 2.73 | |||||
| *53526 | 218044800 | Seal-air Duct Cover |
|
- | |||||
| *53527 | 5303294247 | Grommet-shelf Mtg,.69`` Long |
|
- | |||||
| *53528 | 5303305325 | Paint, Touch, Up, Almond |
|
- | |||||
| *53531 | 5308016571 | Plug-button,cab Liner Holes |
|
$ 4.79 |
