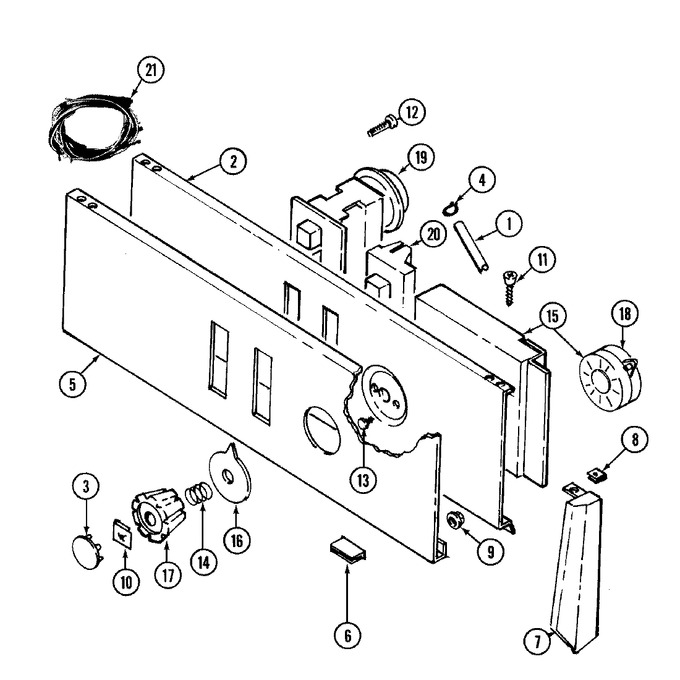

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP22001619		Air Dome And Tube   (Replaces: 212942)	A5			$ 75.73
2	214818		Back Up Plate	A5	Appelez-nous	-
3	315523		Cap, Knob	A3	Appelez-nous	-
4	WP596669		Clamp,water Level Swtch Tube   (Replaces: 410296)	A5		Immediately	$ 7.56
5	208328		Control Panel, Facia	A3	Appelez-nous	-
6	214897		Pad, Control Panel	A5	Appelez-nous	-
7	308651		End Cap (l-h)	A3	Appelez-nous	-
7	Y308652		End Cap (r-h)	A3	Appelez-nous	-
8	214894		Fastener, End Cap	A5	Appelez-nous	-
9	214872		Palnut, End Cap	A5	Appelez-nous	-
10	211605		Retainer, Timer Knob	A5	Appelez-nous	-
11	210932		Screw, No.8 X 9/16 Ctsk	A5	Appelez-nous	-
12	WPW10139210		Screw, No.8 X 5/16 Inch   (Replaces: 211168)	A5			$ 6.75
13	WP3400014		Screw-timer To Control Pane   (Replaces: 213966)	A5			$ 6.98
14	211065		Spring, Timer Knob	A5			$ 5.70
15	207378		Timer	A5			$ 193.65
16	216210		Skirt	A3	Appelez-nous	-
17	216209		Knob	A3	Appelez-nous	-
18	205033		Timer Motor 120-60	A5	Appelez-nous	-
19	208331		Switch (4level)	A3	Appelez-nous	-
20	208332		Switch (4button)	A3	Appelez-nous	-
20	WP67006908		Screw-temp. Switch To Panel   (Replaces: 213117)	A5		Immediately	$ 7.16
21	208122		Wire Harness	A5	Appelez-nous	-
