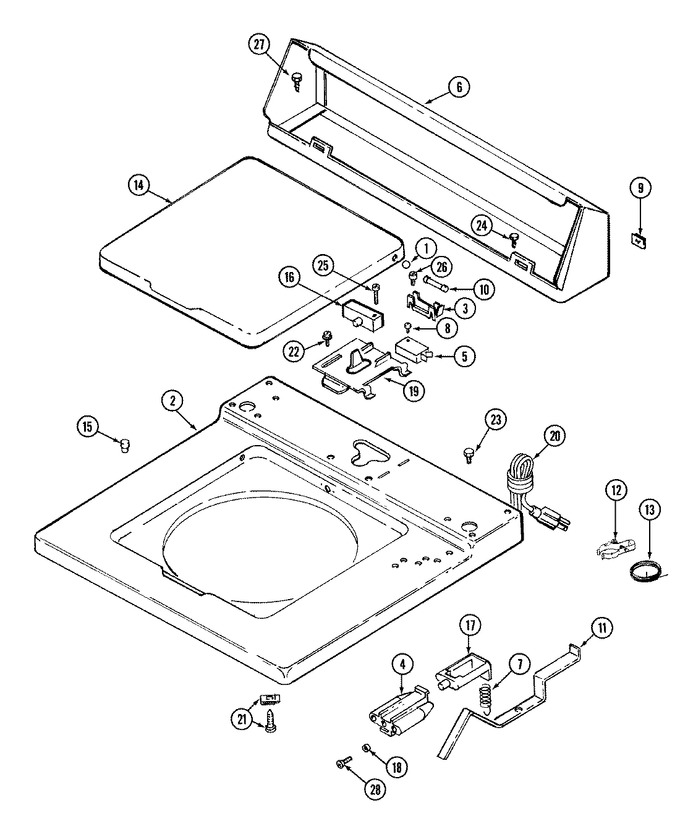

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP211726 | Hinge, Ball (Replaces: 211726) | A3 |
|
Immediately | $ 7.18 | |||
| 2 | 207172 | Top Cover | A3 |
|
- | ||||
| 3 | 207167 | Block, Fuse | A3 |
|
$ 28.66 | ||||
| 4 | 214279 | Bracket F/lid Switch Plunge | A3 |
|
- | ||||
| 5 | WP207166 | Switch, Check (Replaces: 207166) | A3 |
|
Immediately | $ 51.86 | |||
| 6 | 205635 | Console (wht) | A3 |
|
- | ||||
| 7 | WP213720 | Spring (Replaces: 213720) | A3 |
|
$ 7.63 | ||||
| 8 | 912012 | Screw | A3 |
|
- | ||||
| 9 | 215075 | Fastener,cntrl Pnl To Console | A3 |
|
$ 4.83 | ||||
| 10 | 207168 | Fuse | A3 |
|
- | ||||
| 11 | 215704 | Unbalance Lever | A3 |
|
- | ||||
| 12 | 301548 | Clamp, Ground (w/screw) | A3 |
|
- | ||||
| 13 | 311155 | Ground Wire | A3 |
|
$ 8.77 | ||||
| 14 | 216073 | Lid (white) | A3 |
|
- | ||||
| 15 | WP212716 | Bumper, Lid (Replaces: 212716) | A3 |
|
Immediately | $ 7.88 | |||
| 16 | W10820036 | Switch, Lid (w/o Tub Light) (Replaces: 205415) | A3 |
|
Immediately | $ 27.45 | |||
| 17 | 215700 | Lid Switch Plunger | A3 |
|
- | ||||
| 18 | 211500 | Washer,bracke To Top Cover | A3 |
|
- | ||||
| 19 | 22001678 | Bracket,switch & Fuse (Replaces: Y215699) | A3 |
|
$ 28.61 | ||||
| 20 | 211881 | Grommet, Cord | A3 |
|
- | ||||
| 20 | 204590 | Power Cord | A3 |
|
$ 61.20 | ||||
| 21 | 204445 | Screw & Fastener Asy. | A3 |
|
- | ||||
| 22 | W11233072 | Screw (Replaces: 207159) | A3 |
|
Immediately | $ 12.62 | |||
| 23 | WP489128 | Screw, Ground Wire To Base--na (Replaces: 210186) | A3 |
|
$ 9.79 | ||||
| 24 | WP90767 | Screw (Replaces: 211294) | A3 |
|
Immediately | $ 7.04 | |||
| 25 | 213501 | Screw, No.6-20 X 1-1/8 Inch | A3 |
|
$ 12.03 | ||||
| 26 | 215705 | Screw | A3 |
|
- | ||||
| 27 | WP90767 | Screw (Replaces: Y313559) | A3 |
|
Immediately | $ 7.04 | |||
| 28 | W10756178 | Screw (Replaces: 910182) | A3 |
|
$ 5.39 |
