SELECT A DIAGRAM

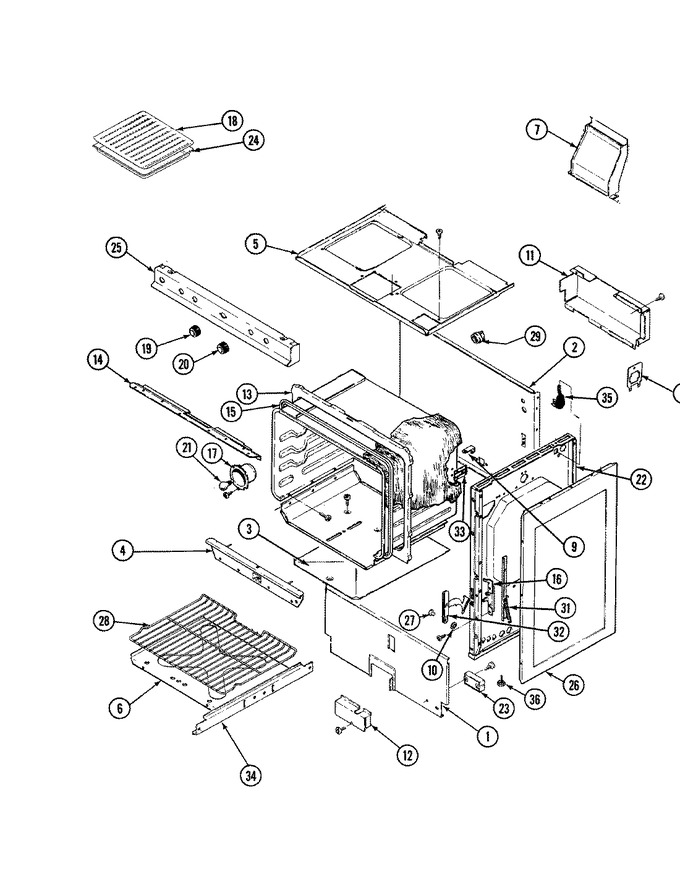

01 - Body
02 - Control Panel
03 - Control System
04 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F123-45 | Back, Broil | 38 |
|
- | ||||
| 1 | 4002F097-45 | Back, Broiler Section | 01 |
|
- | ||||
| 2 | 3601W130-45 | Baffle, Bake & Broil | 01 |
|
- | ||||
| 2 | 4002F094-80 | Back, Main | 01 |
|
- | ||||
| 3 | 3601W124-16 | Baffle, Ovn Front | 01 |
|
- | ||||
| 4 | 3601F059-45 | Baffle, Oven Top | 01 |
|
- | ||||
| 4 | 7401P013-60 | Block, Disconnect | 01 |
|
- | ||||
| 4 | 7401P015-60 | Block, Terminal | 01 |
|
- | ||||
| 5 | 4011F095-80 | Bottom, Burner Box | 01 |
|
- | ||||
| 6 | 4011F146-80 | Bottom, Broiler | 01 |
|
- | ||||
| 6 | 2205F012-16 | Bottom, Oven | 01 |
|
- | ||||
| 7 | 4006W026-80 | Box, Flue | 01 |
|
- | ||||
| 8 | 3801F021-45 | Bracket | 01 |
|
- | ||||
| 9 | 8010P048-60 | Spacer, Main Top | 01 |
|
- | ||||
| 9 | 3801F047-34 | Bracket,control Panel (r) | 01 |
|
- | ||||
| 9 | 3801F049-34 | Bracket,control Panel (l) | 01 |
|
- | ||||
| 9 | 3801F101-80 | Bracket, Tie Down | 01 |
|
- | ||||
| 9 | 3801F180-45 | Bracket, Spark Module | 01 |
|
- | ||||
| 9 | 8003P010-60 | Bumper, Main Top | 44 |
|
- | ||||
| 9 | 3801F205-45 | Bracket, Module Support | 38 |
|
- | ||||
| 10 | 7112P030-60 | Clip, Top Retainer | 01 |
|
- | ||||
| 10 | WP7112P004-60 | Clip, Thermostat (Replaces: 7112P004-60) | 01 |
|
Immediately | $ 11.07 | |||
| 10 | 7112P019-60 | Clip, Hinge Pin | 01 |
|
- | ||||
| 10 | 7112P029-60 | Clip | 01 |
|
- | ||||
| 11 | 4005F088-80 | Cover | 01 |
|
- | ||||
| 11 | 4005F167-80 | Cover, Module | 01 |
|
- | ||||
| 12 | 4005F173-51 | Cover, Valve Terminal | 01 |
|
- | ||||
| 13 | 2201F060-23 | Front, Oven Upper | 01 |
|
- | ||||
| 13 | 2201F034-23 | Front, Oven Lower | 01 |
|
- | ||||
| 14 | 4012F019-80 | Front, Burner Box | 01 |
|
- | ||||
| 15 | 7201P001-60 | Gasket, Oven | 01 |
|
- | ||||
| 16 | 3418A030-34 | Hinge Assy. (rt) | 01 |
|
- | ||||
| 16 | 3418A029-34 | Hinge Assy. (lt) | 01 |
|
$ 48.47 | ||||
| 17 | 4001F016-11 | Housing | 01 |
|
- | ||||
| 18 | 4396923 | Insert (Replaces: 3413F002-11) | 01 |
|
Immediately | $ 52.04 | |||
| 19 | 7711P185-60 | Knob, Therm | 01 |
|
- | ||||
| 20 | 7711P173-60 | Knob, Valve | 01 |
|
- | ||||
| 21 | 40A15 | Bulb, Oven (Replaces: 7407P026-60) | 01 |
|
Immediately | $ 1.98 | |||
| 22 | 4009W059-80 | Lining, Inner Side | 39 |
|
- | ||||
| 22 | 4009W040-80 | Lining, Inner Side | 01 |
|
- | ||||
| 23 | 7431P006-60 | Module, Spark | 01 |
|
- | ||||
| 23 | 7431P016-60 | Module, Spark | 38 |
|
- | ||||
| 24 | 4396923 | Pan, Broil (Replaces: 3401F004-11) | 01 |
|
Immediately | $ 52.04 | |||
| 25 | 7712A058-60 | Panel, Manifold (blk) | 01 |
|
- | ||||
| 26 | 2618F052-74 | Panel, Side (alm) | 01 |
|
- | ||||
| 26 | 2618F073-74 | Panel, Side (alm) | 44 |
|
- | ||||
| 27 | 7113P002-60 | Pin, Hinge | 01 |
|
$ 9.05 | ||||
| 28 | 7801P030-60 | Rack, Oven | 01 |
|
$ 57.14 | ||||
| 29 | 7408P002-60 | Receptacle, Lamp | 01 |
|
- | ||||
| 30 | 7101P029-60 | Screw, Special | 01 |
|
- | ||||
| 31 | WP7803P058-60 | Spring (Replaces: 7803P002-60) | 01 |
|
$ 16.55 | ||||
| 32 | 3420A033-34 | Stop, Oven Door | 01 |
|
- | ||||
| 33 | 3807F205-45 | Support, Oven Rear | 01 |
|
- | ||||
| 34 | 3404A001-51 | Track | 01 |
|
- | ||||
| 34 | 3404A014-45 | Track, Broiler Dwr | 02 |
|
- | ||||
| 34 | 3404A013-45 | Track, Broiler Dwr | 02 |
|
- | ||||
| 35 | 7402P024-60 | Cord, Power | 01 |
|
- | ||||
| NI | 8112P008-60 | Manual, Use & Care | 01 |
|
- | ||||
| NI | 8112P033-60 | Manual, Use & Care | 27 |
|
- |
