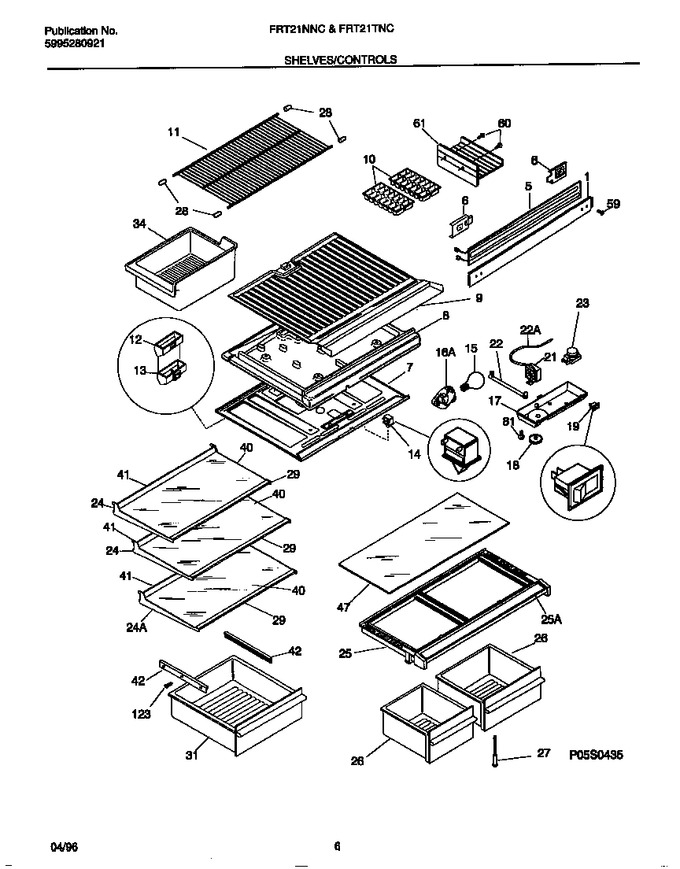

SELECT A DIAGRAM

01 - Cover


02 - Door


03 - Cabinet


04 - Shelves/controls


05 - System


06 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218651901		Mullion, Almond		Appelez-nous	-
5	218271402		Heater-mullion		Appelez-nous	-
6	218279800		Tapping Plate, Mullion Mtg, (2)		Appelez-nous	-
9	5303210641		Bottom Panel-frzr		Appelez-nous	-
13	218631001		Cover-air Deflector				$ 55.19
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
16	218906802		Socket-light/lamp   (Replaces: 5308000815)				$ 17.72
18	5303311079		Knob-temp Control		Appelez-nous	-
19	5303286905		Switch-energy Saver, Rocker Type				$ 27.08
22	5303916855		Insulator, Plastic Tubing, Temp Sensor				$ 60.96
22	3018891		Housing-temp Sensor, Plastic		Appelez-nous	-
24	215919123		Frame-pan Mtg Shelf, Cantilever, Full Width, W/hanger Ta		Appelez-nous	-
24	215919118		Frame-full Shelf, Cantilever		Appelez-nous	-
25	5303308338		Trim-crisper Cover				$ 50.77
25	5303206538		Cover-crisper Pan		Appelez-nous	-
27	5303205987		Support-crspr Cover, Adjustable				$ 48.41
28	3201150		End Cap-shelf,protector				$ 4.57
29	215919420		Trim-glass Shelf, 26.80``, Front		Appelez-nous	-
31	5303308334		Pan-meat		Appelez-nous	-
34	5303212918		Container-ice				$ 104.66
40	218390527		Glass-shelf, 26.76`` X 15.57``		Appelez-nous	-
41	215919805		Trim-glass Shelf, 26.80``, Rear		Appelez-nous	-
47	218390523		Insert-pan Cover, Glass				$ 117.61
59	240442708		Screw-hinge/mullion, Cr Pan Head, 10-32 X 5/8, Thread Fo   (Replaces: 218188000)				$ 8.34
60	5304455852		Screw, Hex Washer Head, 8-15a X 1.00   (Replaces: 5303207328)				$ 12.76
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
123	215005101		Screw-roller/hanger,8-10 X 7/16   (Replaces: 215005100)				$ 14.89
11A	5303288243		Shelf-freezer, Fixed/flat, Full Width, Wire		Appelez-nous	-
11B	218159700		Spacer-shelf (not Illustrated)		Appelez-nous	-
12A	218630800		Deflector-air		Appelez-nous	-
12B	5303001449		Seal-air Deflector, (2) (not Illustrated)				$ 2.12
17A	5303307349		Control Box		Appelez-nous	-
17B	5308016567		Nut, Anchor (not Illustrated)		Appelez-nous	-
21A	5303303674		Control-temperature				$ 163.75
21B	5303001260		Screw				$ 6.73
23A	215846602		Timer   (Replaces: 215267800)			Immediately	$ 28.20
23B	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
26A	5303308330		Pan-crisper, 11.34`` Wide		Appelez-nous	-
26B	5303308332		Pan-crisper, 14.34`` Wide		Appelez-nous	-
42A	5303209272		Hanger-pan/basket, Lh				$ 90.83
42B	5303209273		Hanger-pan/basket, Rh				$ 60.06
7A	3019038		Top Panel-refr		Appelez-nous	-
7B	5303001380		Screw		Appelez-nous	-
8A	5303019039		Divider, Styrofoam		Appelez-nous	-
8B	3019040		Harness-wiring, Control/divider (not Illustrated)		Appelez-nous	-
8C	3205266		Edge Protector (not Illustrated)				$ 80.09

    View Diagram in Separate Window       Print Part List
