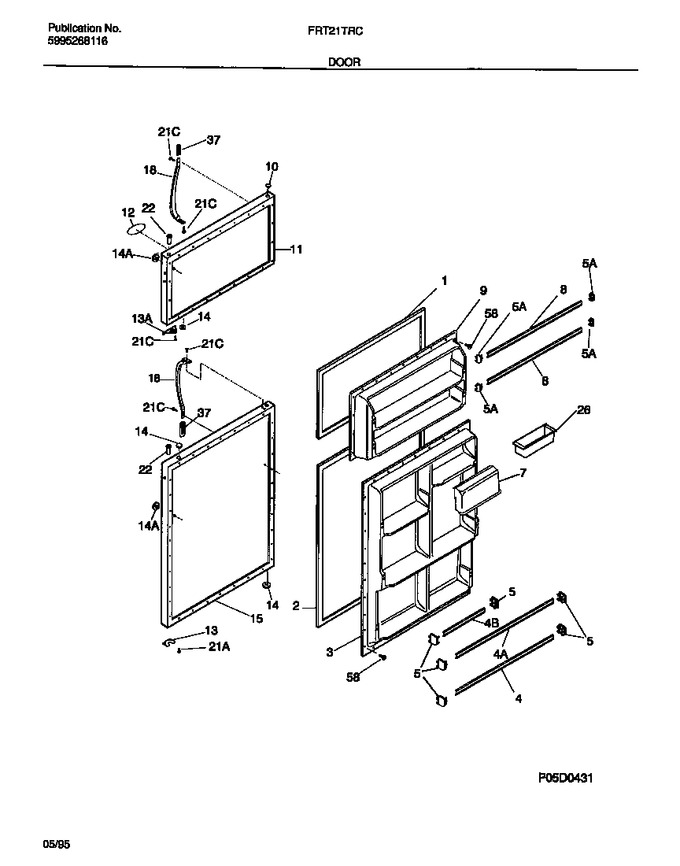

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Door
03 - Cabinet
04 - Shelves/controls
05 - System
06 - Ice Maker
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 215608913 | Gasket-frzr Door, White, Magnetic |
|
- | |||||
| 2 | 215732413 | Gasket-refr Door, White, Magnetic |
|
- | |||||
| 3 | 215393201 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 215516252 | Rack-door, 23.09`` X 2.04`` |
|
- | |||||
| 5 | 215251401 | Support-door Rack, ``2-liter``, Rh/lh |
|
- | |||||
| 7 | 5303310094 | Door-dairy |
|
- | |||||
| 8 | 215516253 | Rack-door, 23.47`` X 2.04`` |
|
- | |||||
| 9 | 215530301 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5308000134 | Plug-button, White, Hinge Brg Hole |
|
$ 5.62 | |||||
| 11 | 5303917608 | Panel-frzr Door, White, W/insulation |
|
- | |||||
| 12 | 218364001 | Frame-nameplate, White |
|
- | |||||
| 13 | 5303212491 | Door Stop, Refr Section |
|
- | |||||
| 14 | 240494001 | Plug-button, White, Handle/dr Stop (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 15 | 5303917623 | Panel-refr Door, White, W/insul & Brace |
|
- | |||||
| 18 | 218363401 | Handle-door, White, Hard-grip |
|
$ 85.29 | |||||
| 22 | 3206153 | Bearing-hinge |
|
- | |||||
| 26 | 3204522 | Container-egg |
|
$ 98.33 | |||||
| 37 | 215867025 | Trim-handle, 4.97``, White, W/band & Locks |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *43040 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| 12A | 215008607 | Label-nameplate, White, Frigidaire (not Illustrated) |
|
- | |||||
| 12B | 215518000 | Magnet-nameplate (not Illustrated) |
|
- | |||||
| 13A | 218249001 | Door Stop, White, Frzr |
|
$ 82.06 | |||||
| 14A | 240494001 | Plug-button,white ,refr Door Front , (Replaces: 215352201) |
|
Immediately | $ 18.20 | ||||
| 21A | 218251900 | Screw, No. 8 Oval Head, 10-32 (ca) X 5/8, Cross Recessed |
|
$ 10.55 | |||||
| 21C | 218252201 | Screw, No. 8 Truss Head, 10-32 X 1/2 (Replaces: 218252200) |
|
Immediately | $ 14.18 | ||||
| 37A | 215940700 | Lock-handle Trim, Stick-on (not Illustrated) |
|
- | |||||
| 4A | 215516251 | Rack-door, 22.51`` X 2.04`` |
|
- | |||||
| 4B | 215516250 | Rack-door, 9.24`` X 2.04`` |
|
- | |||||
| 5A | 218758602 | Support-door Rack, Rh/lh (Replaces: 215552601) |
|
Immediately | $ 23.39 |
