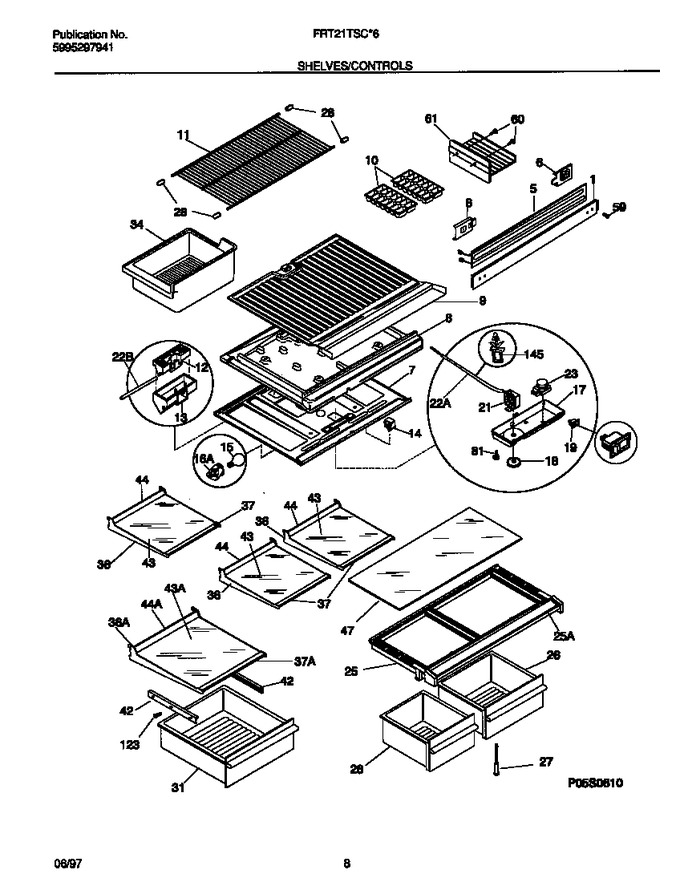

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218651900		Mullion, White		Appelez-nous	-
5	218781002		Heater-mullion		Appelez-nous	-
6	218279800		Tapping Plate, Mullion Mtg, (2)		Appelez-nous	-
9	5303210641		Bottom Panel-frzr		Appelez-nous	-
10	215667501		Tray-ice, Plastic			Immediately	$ 6.07
13	218631001		Cover-air Deflector				$ 55.19
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp,40 W		Appelez-nous	-
16	218906802		Socket-light/lamp   (Replaces: 5308000815)				$ 17.72
18	5303311079		Knob-temp Control		Appelez-nous	-
19	5303286905		Switch-energy Saver, Rocker Type				$ 27.08
22	218731104		Tube, Pvc, White, @ Air Deflector,				$ 35.64
22	5303916855		Tube, Plastic, Clear, Sensor Sleeve				$ 60.96
25	5303206538		Cover-crisper Pan		Appelez-nous	-
25	5303308338		Trim-crisper Cover				$ 50.77
27	5303205987		Support-crisper Cvr, Adjustable				$ 48.41
28	3201150		End Cap-shelf,protector				$ 4.57
31	5303323460		Pan-meat		Appelez-nous	-
34	5303212918		Container-ice				$ 104.66
36	215919167		Frame-meat Kpr Shlf, Cantilever		Appelez-nous	-
36	215919115		Frame-half Shelf, Cantilever		Appelez-nous	-
37	215919411		Trim-half Shelf, Front				$ 63.42
43	218390522		Glass-shelf, 12.55`` X 15.57``		Appelez-nous	-
43	218390525		Glass-shelf, 13.03`` X 14.57``		Appelez-nous	-
44	215919811		Trim-glass Shelf,13.07`` ,rear		Appelez-nous	-
44	215919810		Trim-glass Shelf, 12.59``, Rear		Appelez-nous	-
47	218390523		Insert-pan Cover, Glass				$ 117.61
59	240442708		Screw, Pan Head, 10-32 X 0.625, Hinge/mullion, Thread Fo   (Replaces: 218188000)				$ 8.34
60	5304455852		Screw, Hex Washer Head, 8-15(a) X 1   (Replaces: 5303207328)				$ 12.76
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
123	215005101		Screw-roller/hanger`8-10 X 0.438   (Replaces: 215005100)				$ 14.89
145	218660800		Clip, Plastic, Temp Sensor Mtg, Snap-in		Appelez-nous	-
11A	5303288243		Shelf-freezer, Fixed/flat, Full Width, Wire		Appelez-nous	-
11B	218159700		Spacer-shelf (not Illustrated)		Appelez-nous	-
12A	218730000		Deflector-air				$ 57.60
12B	5303001449		Seal-air Deflector, Foam Plastic, (2) (not Illustrated)				$ 2.12
17A	5303321455		Control Box				$ 46.16
17B	5308016567		Nut, Anchor (not Illustrated)		Appelez-nous	-
21A	5304404821		Control-temperature   (Replaces: 5303323457)			Immediately	$ 164.57
21B	5303001260		Screw				$ 6.73
23A	215846602		Timer-defrost, 10 Hr, 115v   (Replaces: 5303321915)			Immediately	$ 28.20
23B	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
26A	215791938		Pan-crisper,11.34`` Wide				$ 292.27
26B	5303323459		Pan-crisper, 14.34`` Wide		Appelez-nous	-
42A	218971202		Hanger-pan/tray, Lh   (Replaces: 5303298718)				$ 60.96
42B	218971302		Hanger-pan/tray, Rh   (Replaces: 5303298719)				$ 73.71
7A	218738800		Top Panel-refr		Appelez-nous	-
7B	5303001380		Screw		Appelez-nous	-
8A	218781400		Divider, Styrofoam		Appelez-nous	-
8B	3205266		Edge Protector, Wiring Harness (not Illustrated)				$ 80.09
8C	3019040		Harness-wiring, Control/divider (not Illustrated)		Appelez-nous	-
